1983 Morgan 41' (12.50 m) Out Island 416
Green Cove Springs, Florida, United States
Aloha
"Aloha" is a stunning example of why Morgan Out Islands quickly became the gold standard for many cruising liveaboards and remain so today. Loved for their quality, seaworthiness, and spacious layout, they have stood the test of time, and there has no expense spared in "Aloha"s extensive refit.
Flag of Registry: United States
- Cruisers
- Sail
- Used
- Diesel
- Fiberglass Hull
- HIN/IMO: MRY31161M83A
Vessel ID# 2841976 Last Updated: 2025-09-25 16:59:30
| FEATURES: |
|---|
| NEW STANDING AND RUNNING RIGGING |
| 1200 WATTS OF SOLAR |
| CUSTOM SOLAR ARCH |
| ALL NEW NAVIGATION INSTRUMENTS |
| TOP DECK AND BOTTOM PAINTED (2025) |
| Notable Upgrades: This incredible classic Morgan OI had a complete refit from 2022 onward. Read past the description for all the details! |
| Date Listed: 09/17/2025 |
Description

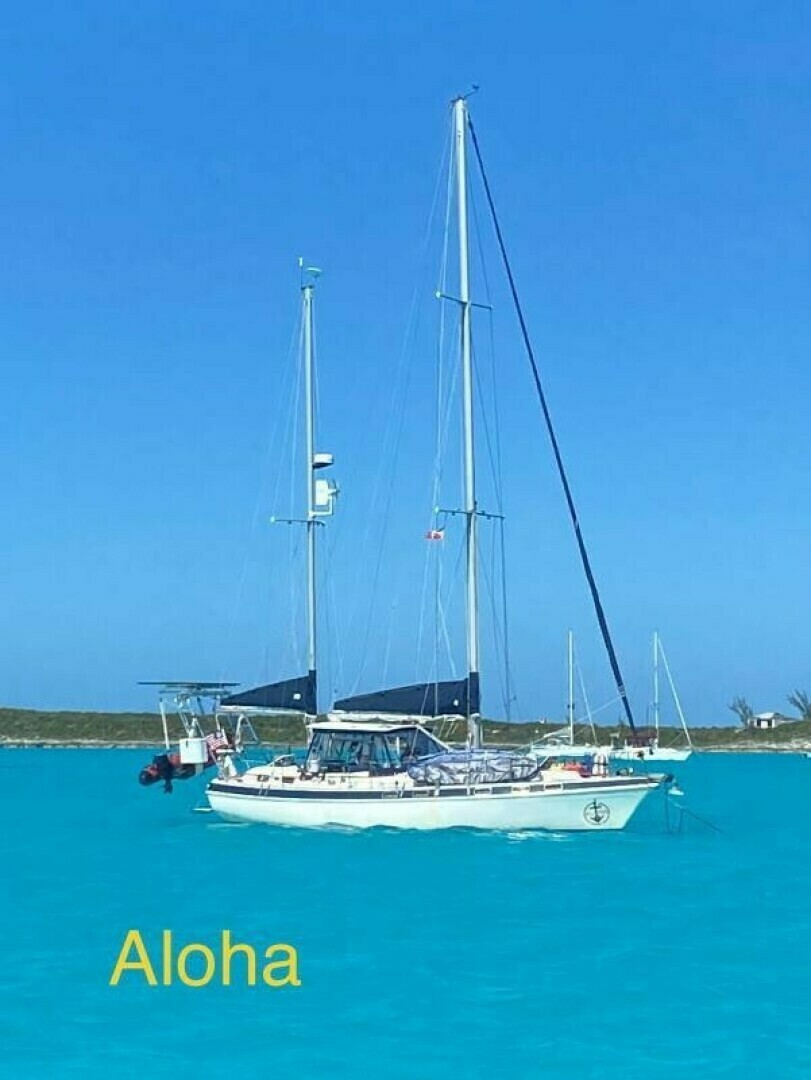

“Aloha”
1983 Morgan Out Island 416
When Morgan Out Islands first arrived to the market, they set the standards for many discerning cruisers as the ultimate cruising liveaboard. Today, having stood the test of time, Aloha is a stunning example of this model, with no expense spared in her complete refit. Her current owners have lived onboard since they purchased her in 2017 and are her second owners. From 2022 to 2023 they completely refit “Aloha” and then cruised the Caribbean for several years. She is set up to cruise in comfort while remaining completely off the grid, and she is truly ready to go sailing, with fresh bottom paint (2025), new standing and running rigging, Watermaker, an incredible 1200 watts of solar (2022/2023), and so much more...The extensive list below was all completed during her refit years unless otherwise specified.
NAVIGATION INSTRUMENTS

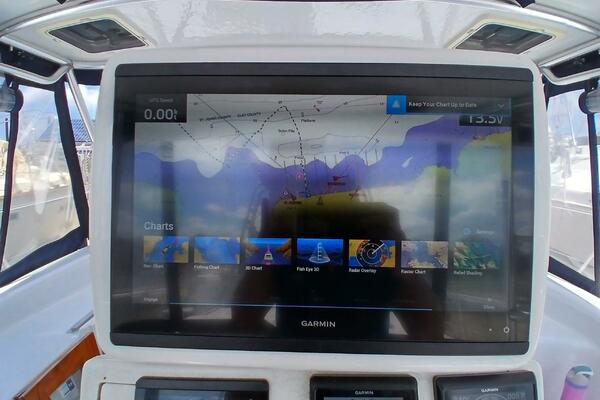

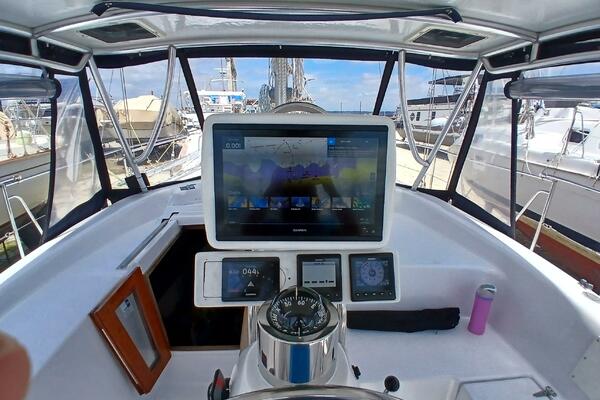

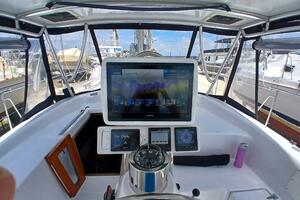

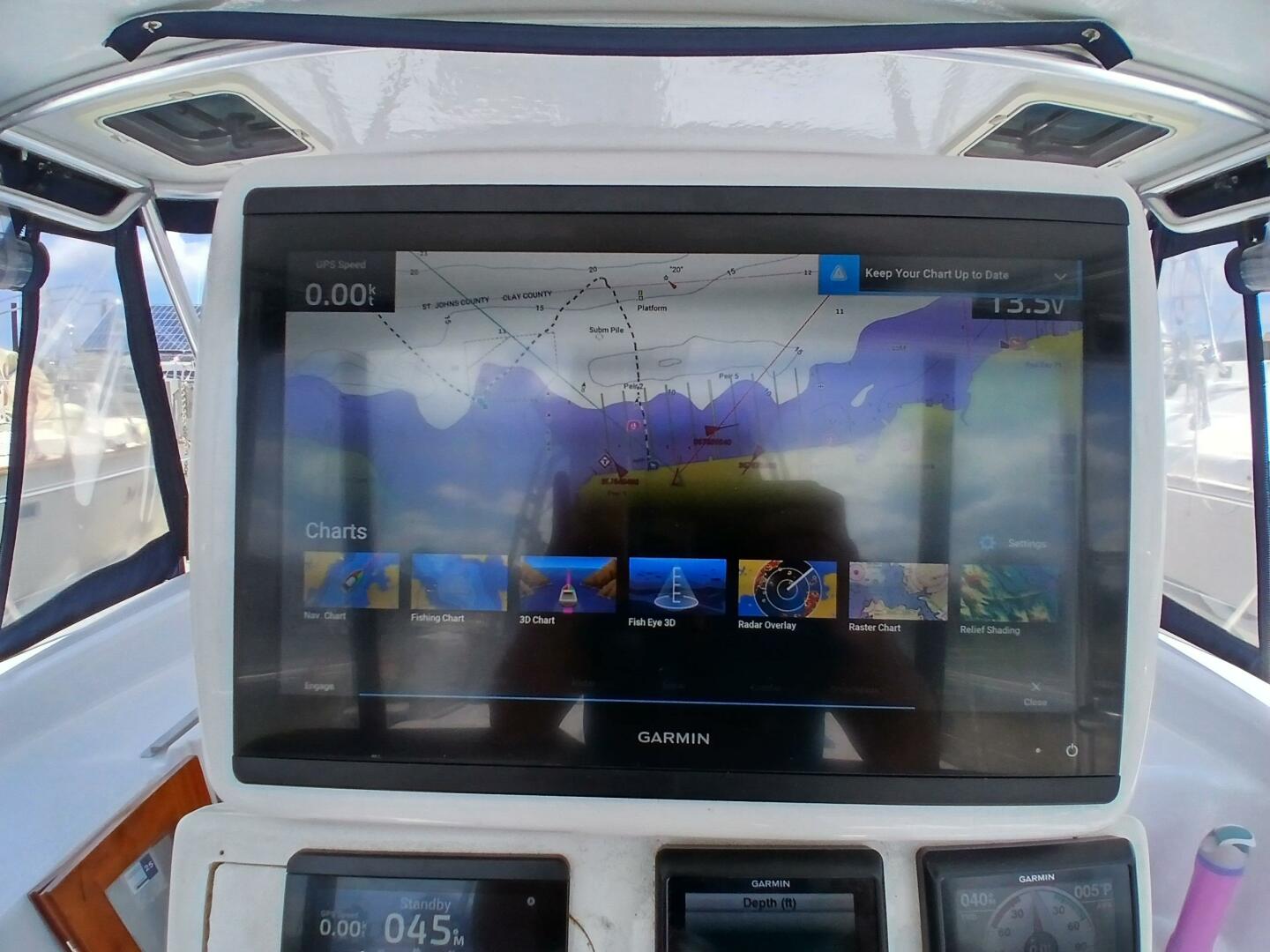

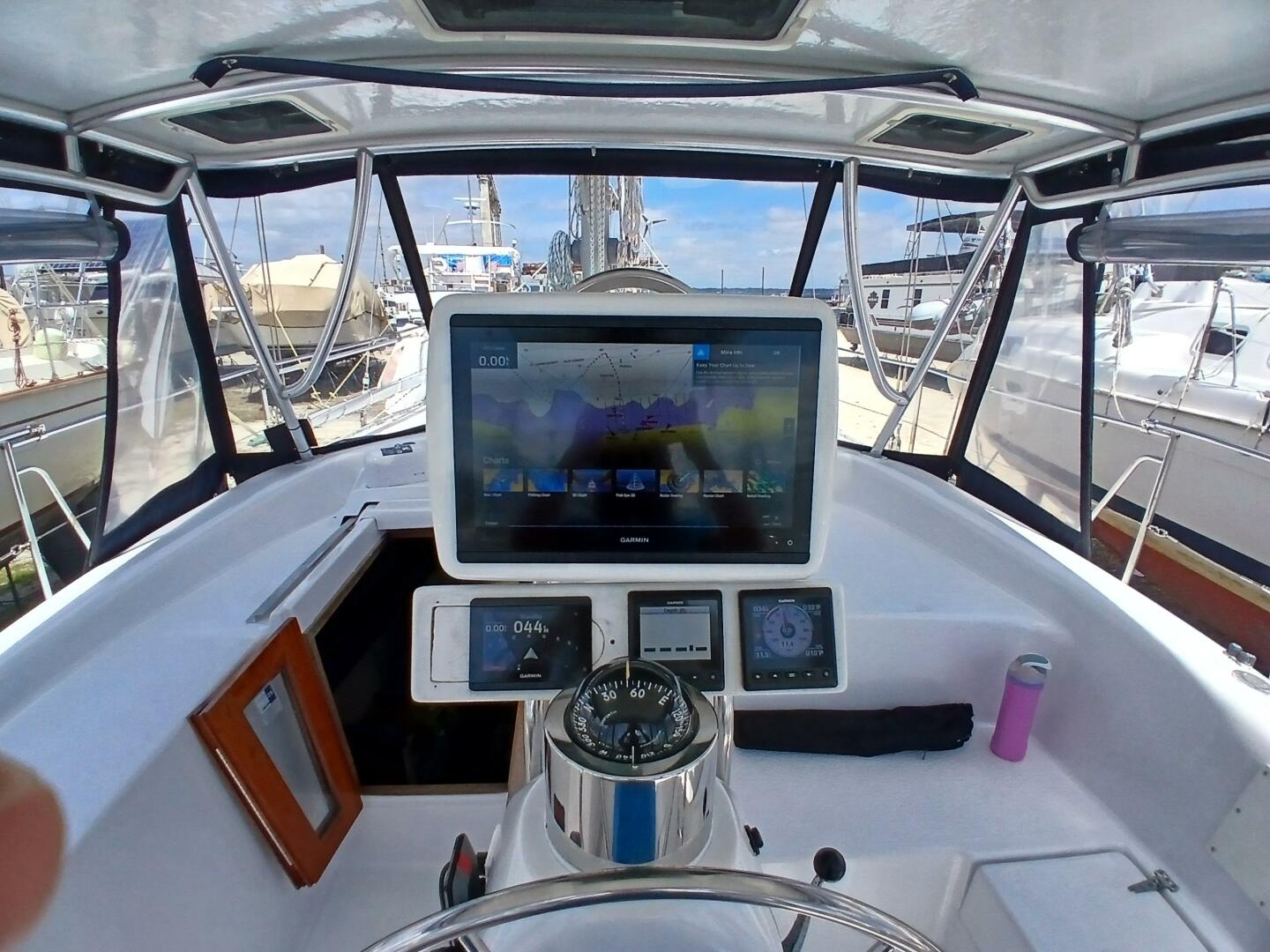

- Garmin 8616-XSV chart plotter

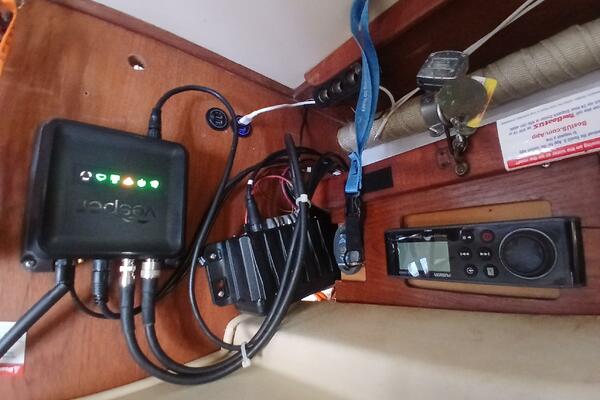

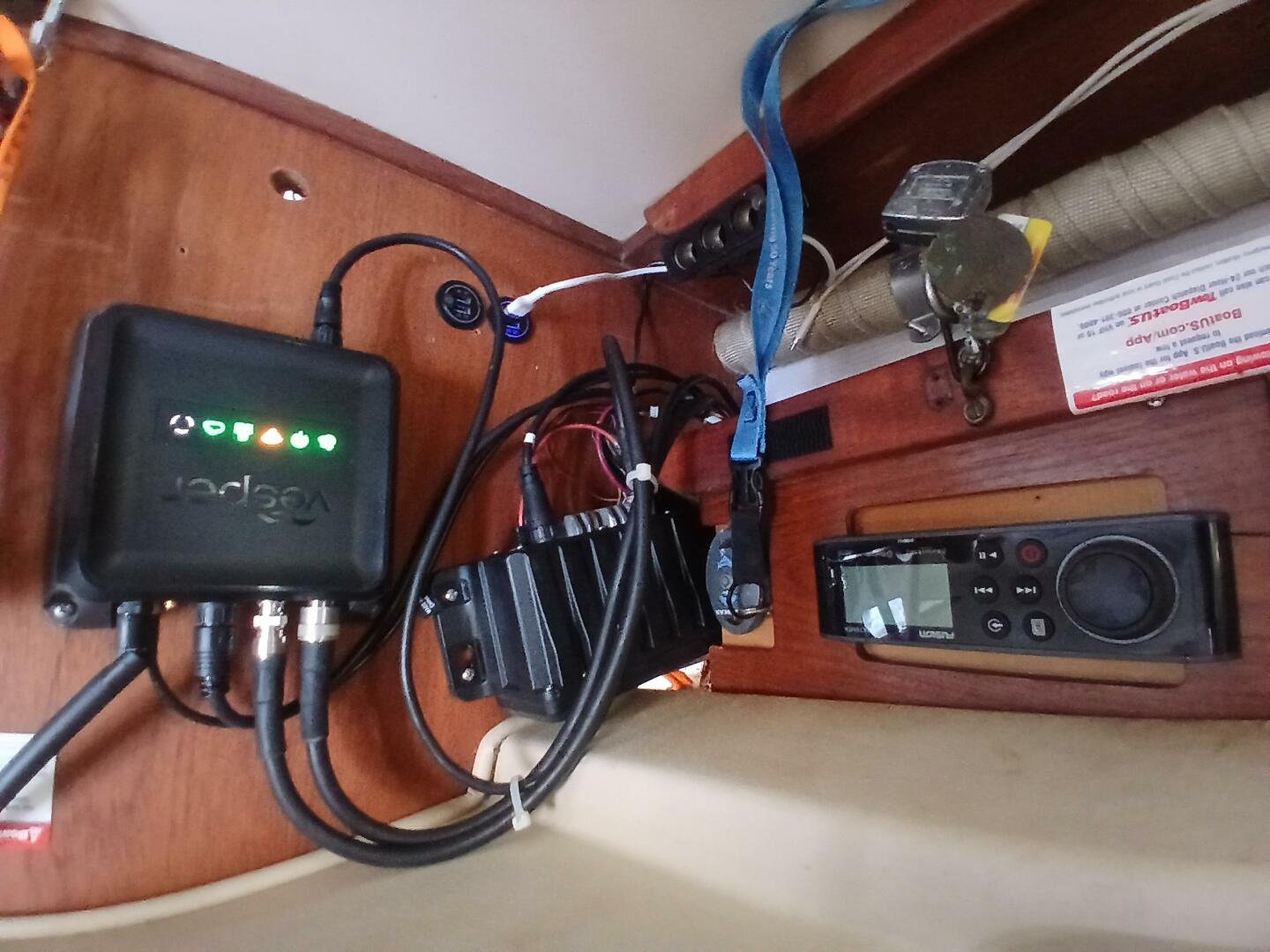

- Vesper AIS with handheld remote and VHF – 7/2024 (spare new handheld remote on board)
- ICOM VHF
- (2) Garmin multifunction displays

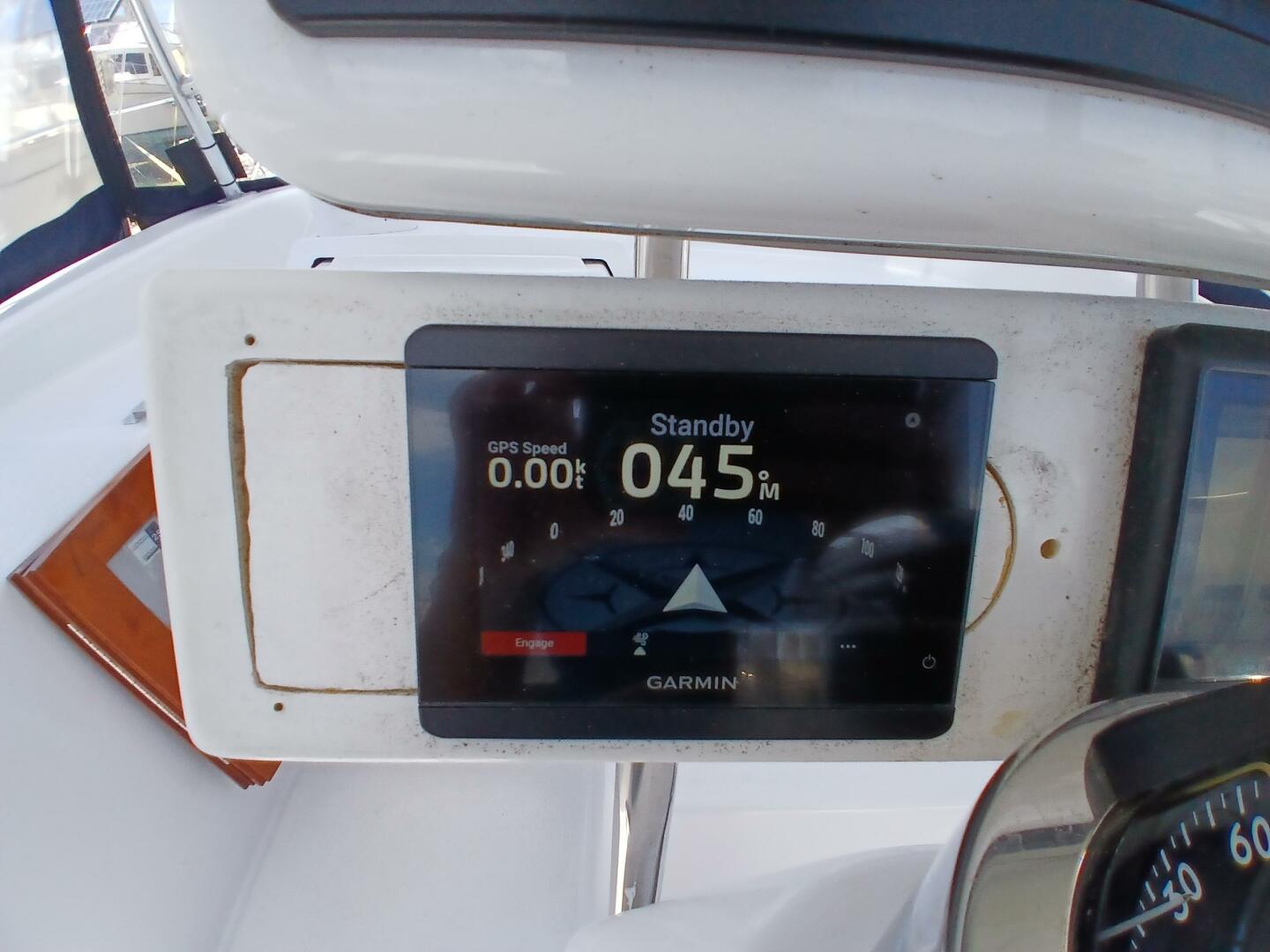

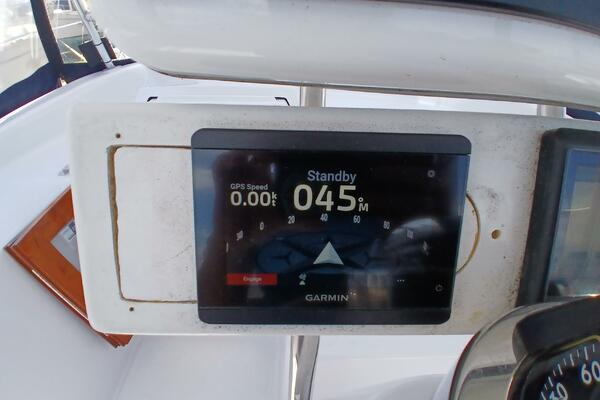

- Garmin Autopilot with upgraded display
- Garmin radar
- Garmin forward sounding sonar

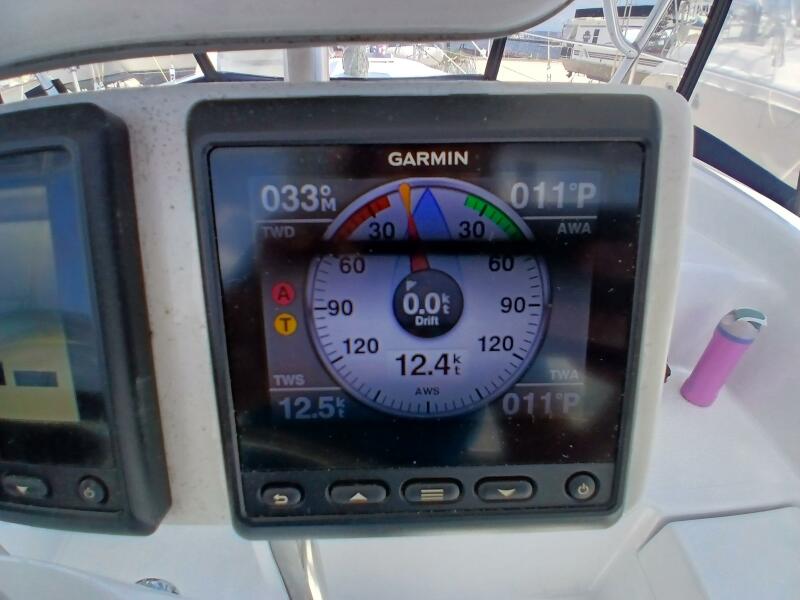

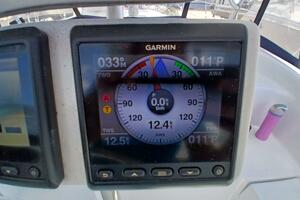

- Garmin wired wind instruments

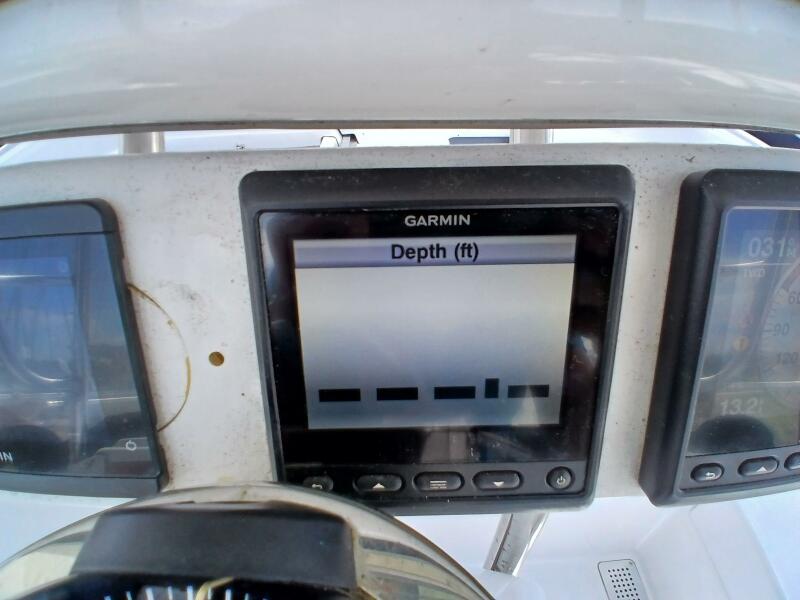

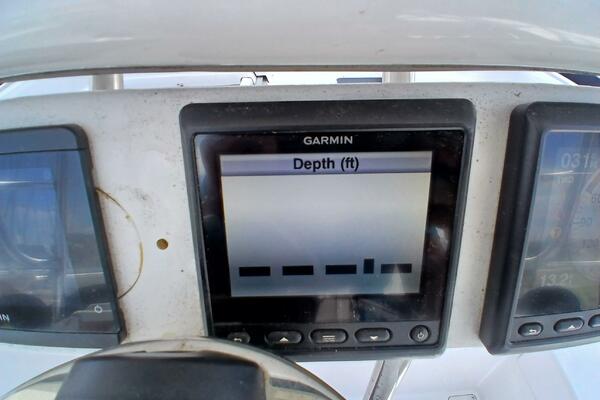

- Garmin Depth, Speed, Temperature gauge
- All wired to new Nema 2000 network
- Faria secondary depth sensor
- registered EPIRB
- Fusion Bluetooth and networked radio with speakers in the salon and cockpit
- Weboost cellular antenna booster
- 75 Mile TV antenna with booster
POWER GENERATION

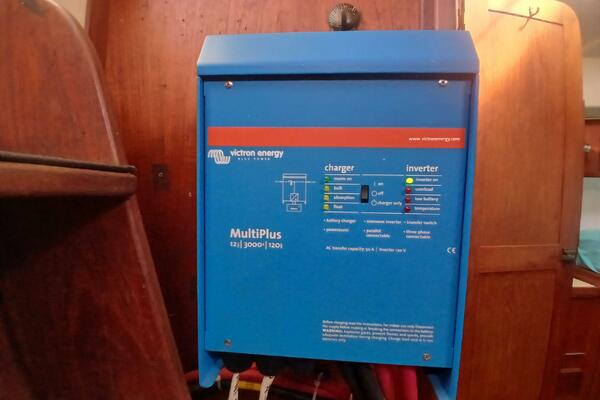

- Victron Multiplus 3000 Inverter. 2025
- Victron BMV-712 battery monitor

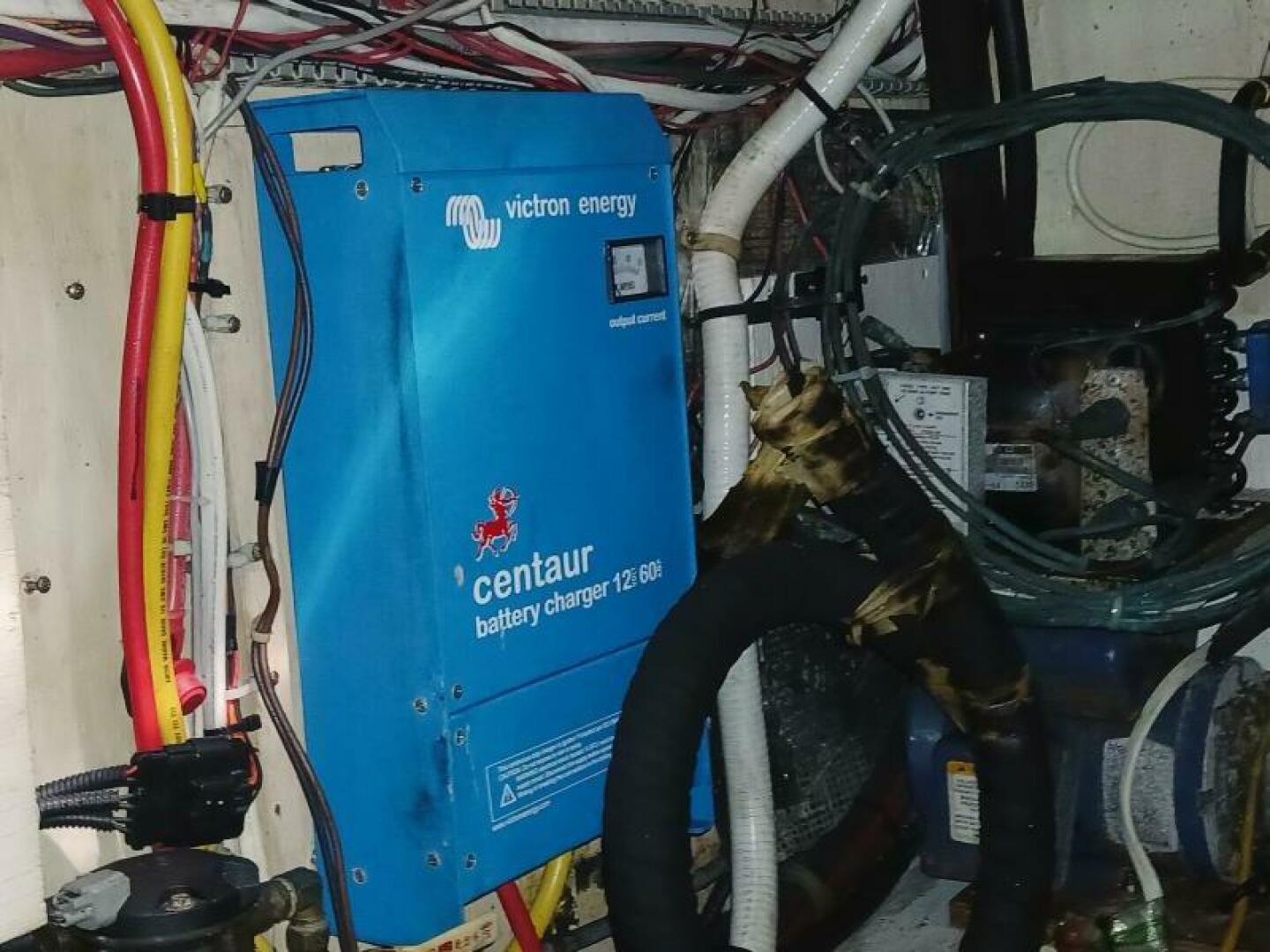

- Victron Centaur 3 bank 60 Amp battery charger
- 1200 watts of solar in 2 banks
- AmpAir 100 wind generator
- (2) Victron DC-DC 30 amp chargers – 11/2023

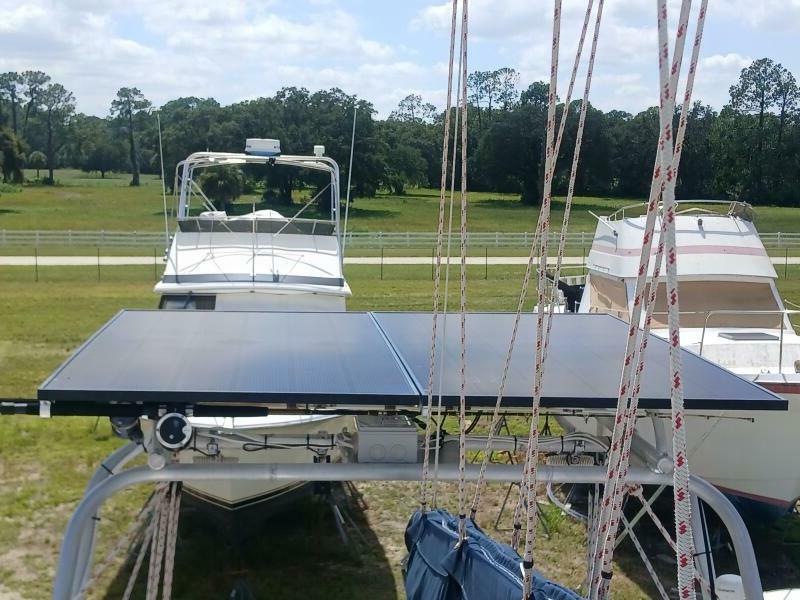

MOUNTED ON ARCH
- (2) 400 watt LG Neon solar panels

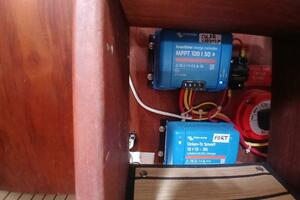

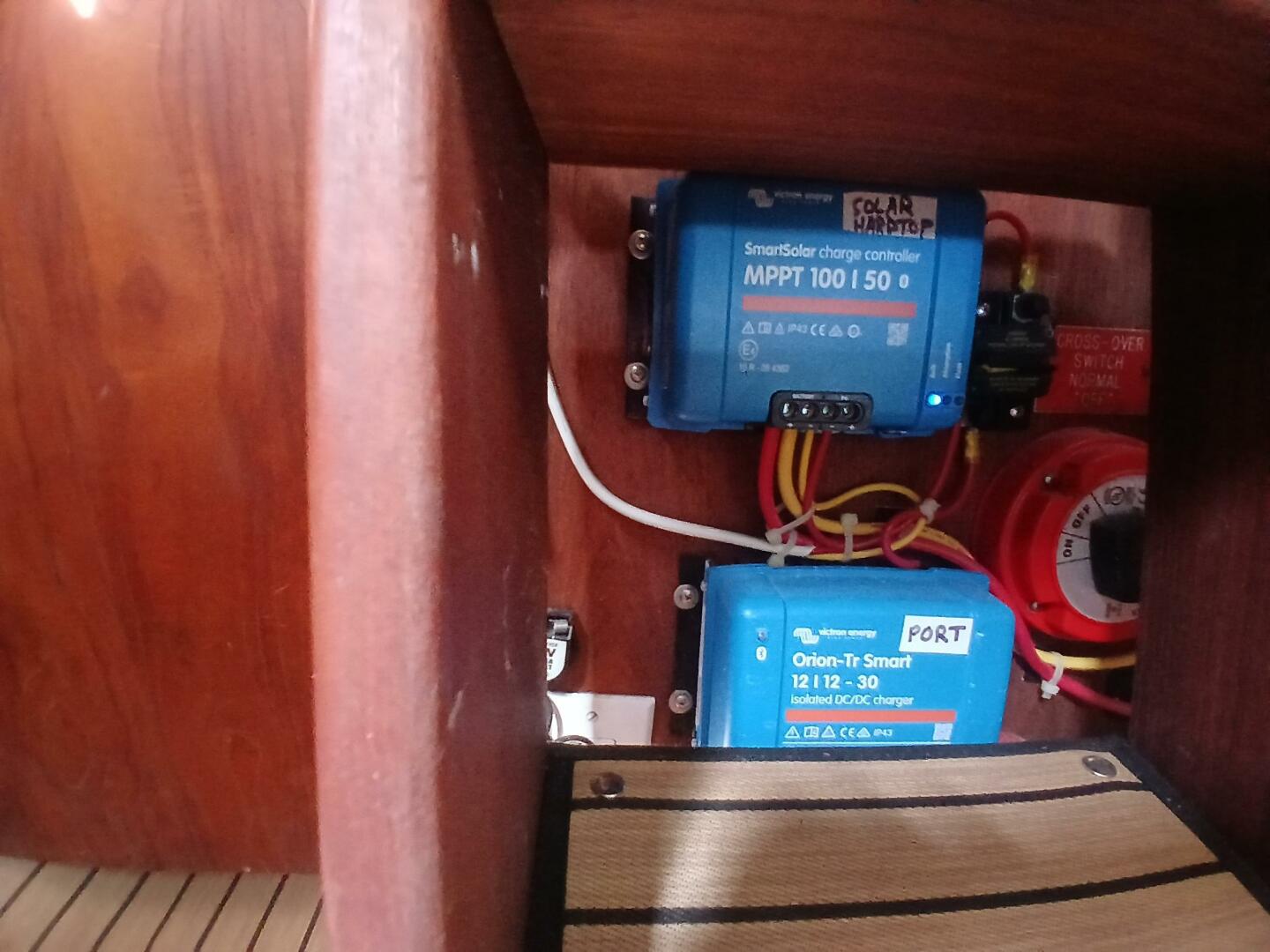

- Victron 100/50 MPPT charge controller

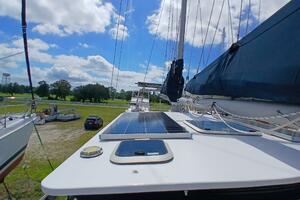

MOUNTED ON THE COCKPIT HARD TOP

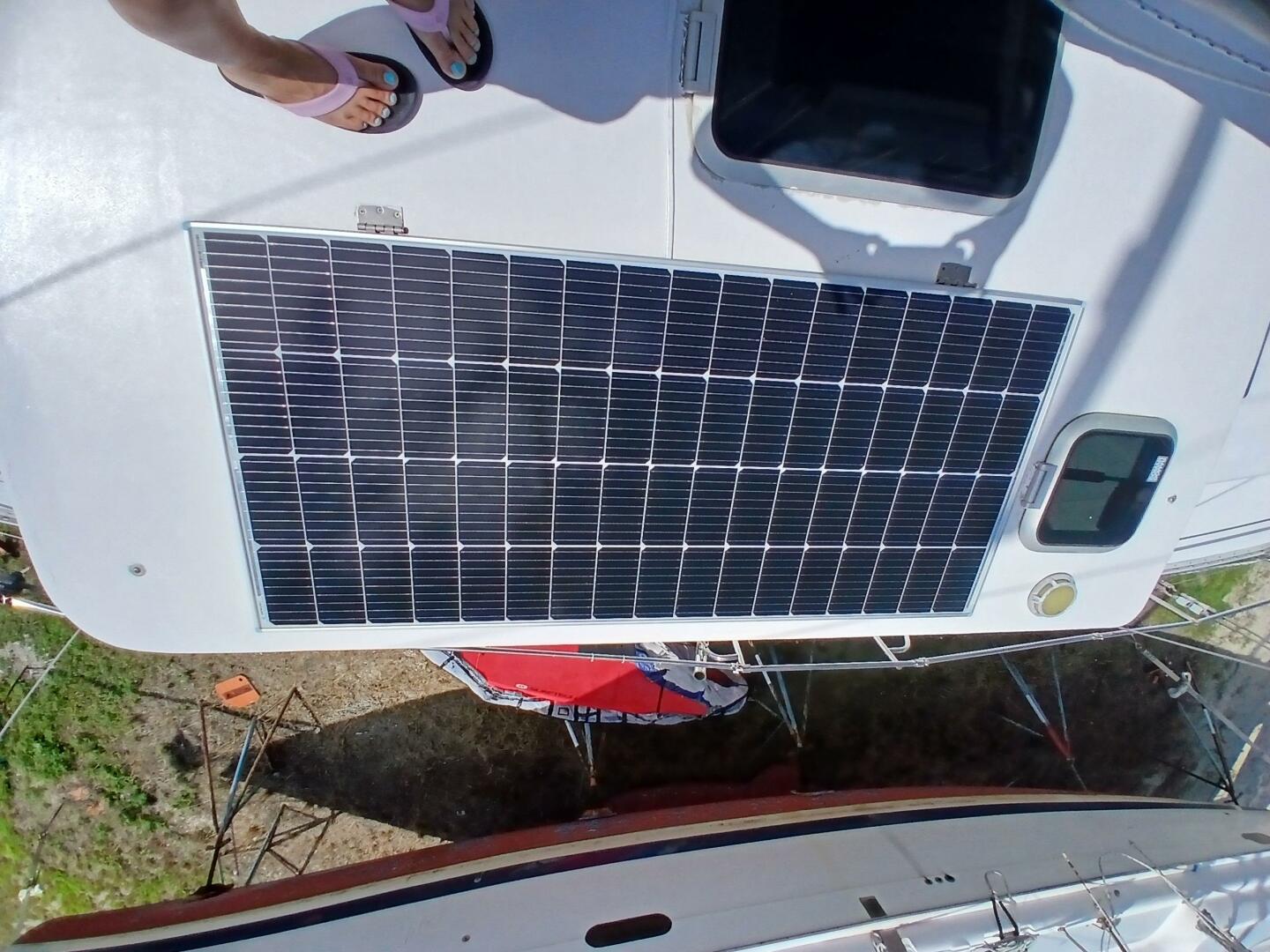

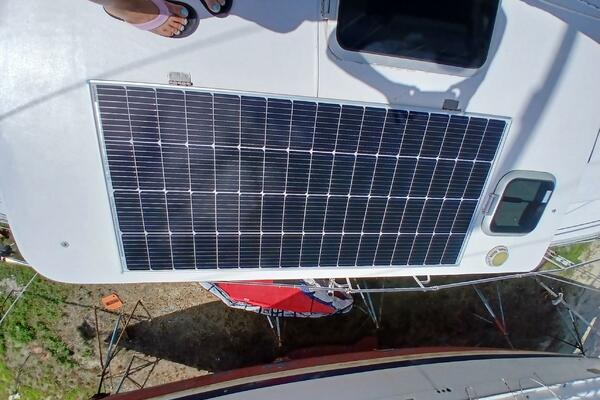

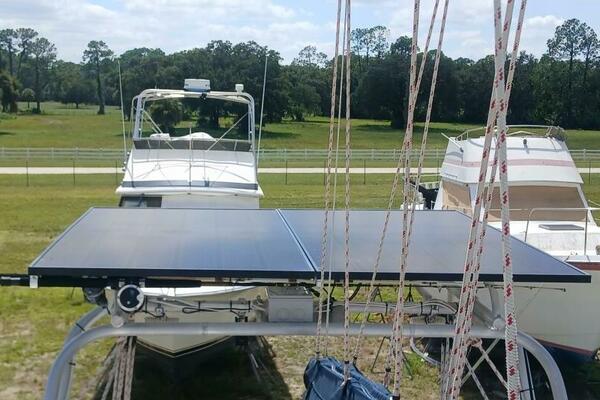

- (2) 200 watt Renogy solar panels*
- *panels are hinged and can be easily raised to either side, or removed for standing/working on the hard top – added 5/2024
- Victron 100/50 MPPT charge controller.

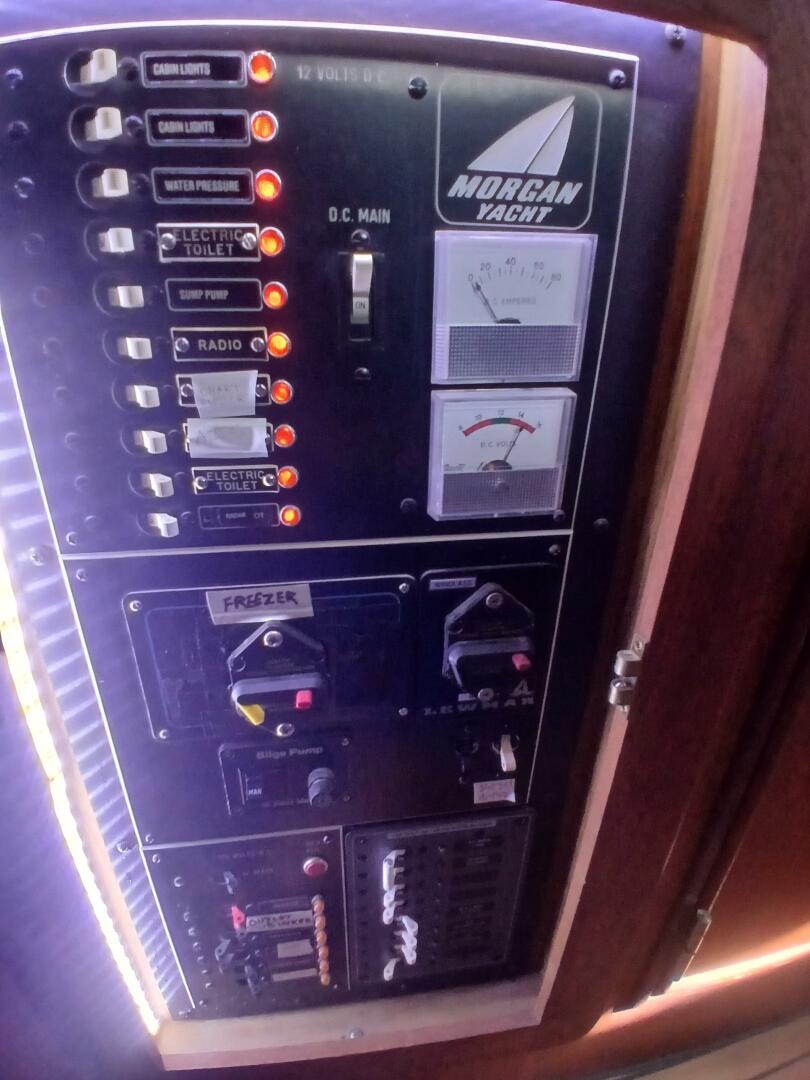

ELECTRIC/WIRING
- ALL ELECTRICAL WIRING REPLACED WITH NEW TINNED WIRE PER ABYC STANDARDS.
- Upgraded shore power – replaced all wiring, added (2) smart plug inlets, a Promariner 60 Amp galvanic isolator, (2) Blue Seas marine AC inlet breakers and (2) main AC electrical panels. Also included are many 30 Amp shore cords, adapters and replacement plugs and parts. Some of the cords are stored in a black bag in the V-berth and the rest in cubby behind forward head.
LIGHTING

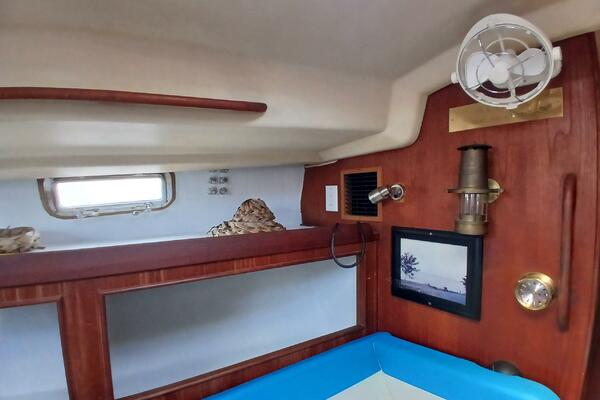

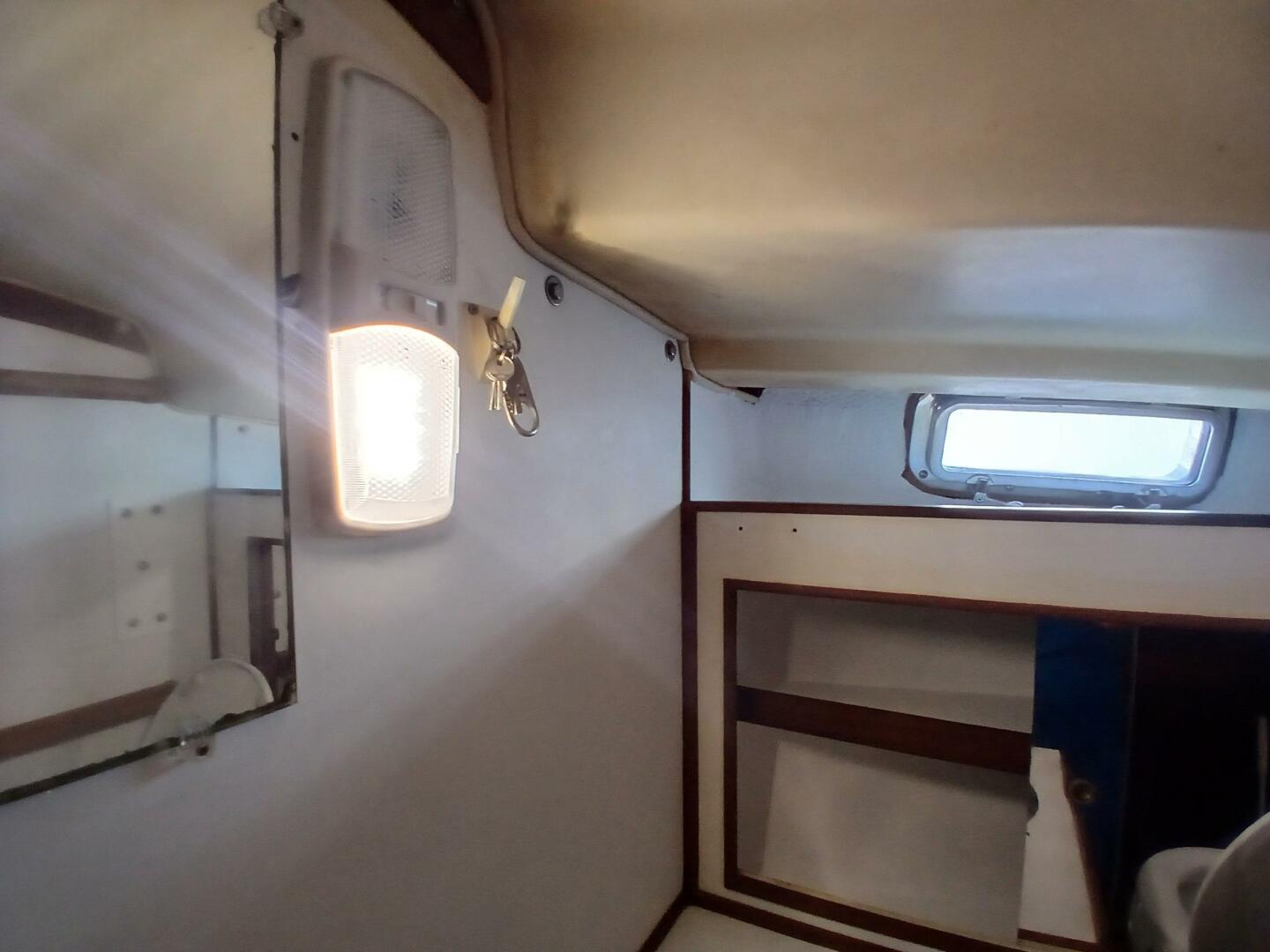

- INTERIOR LIGHTS: upgraded to LED and 12 volts fans added to all cabins (11 total)
- NAVIGATION LIGHTS: replaced with LED Signal Mate – Tri-Color on top of mast, bow, stern and steaming light. Eight New Wave One Marine LED spreader lights that light up white, or blue. One set on main mast shining up, one set on main mast shining down on the deck, one set on mizzen mast shinning down on the deck, and one set on the solar arch shining on the swim platform/water.

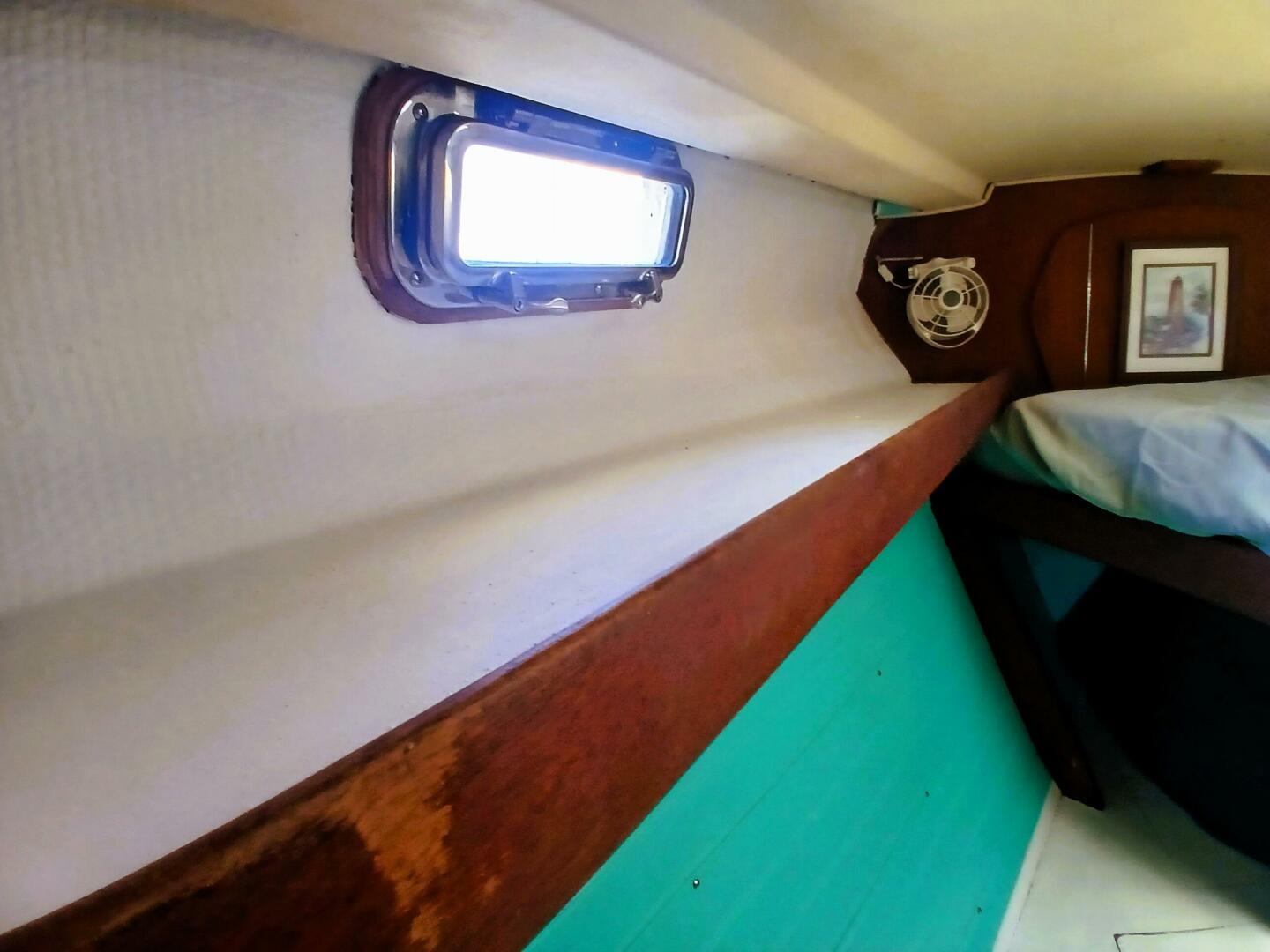

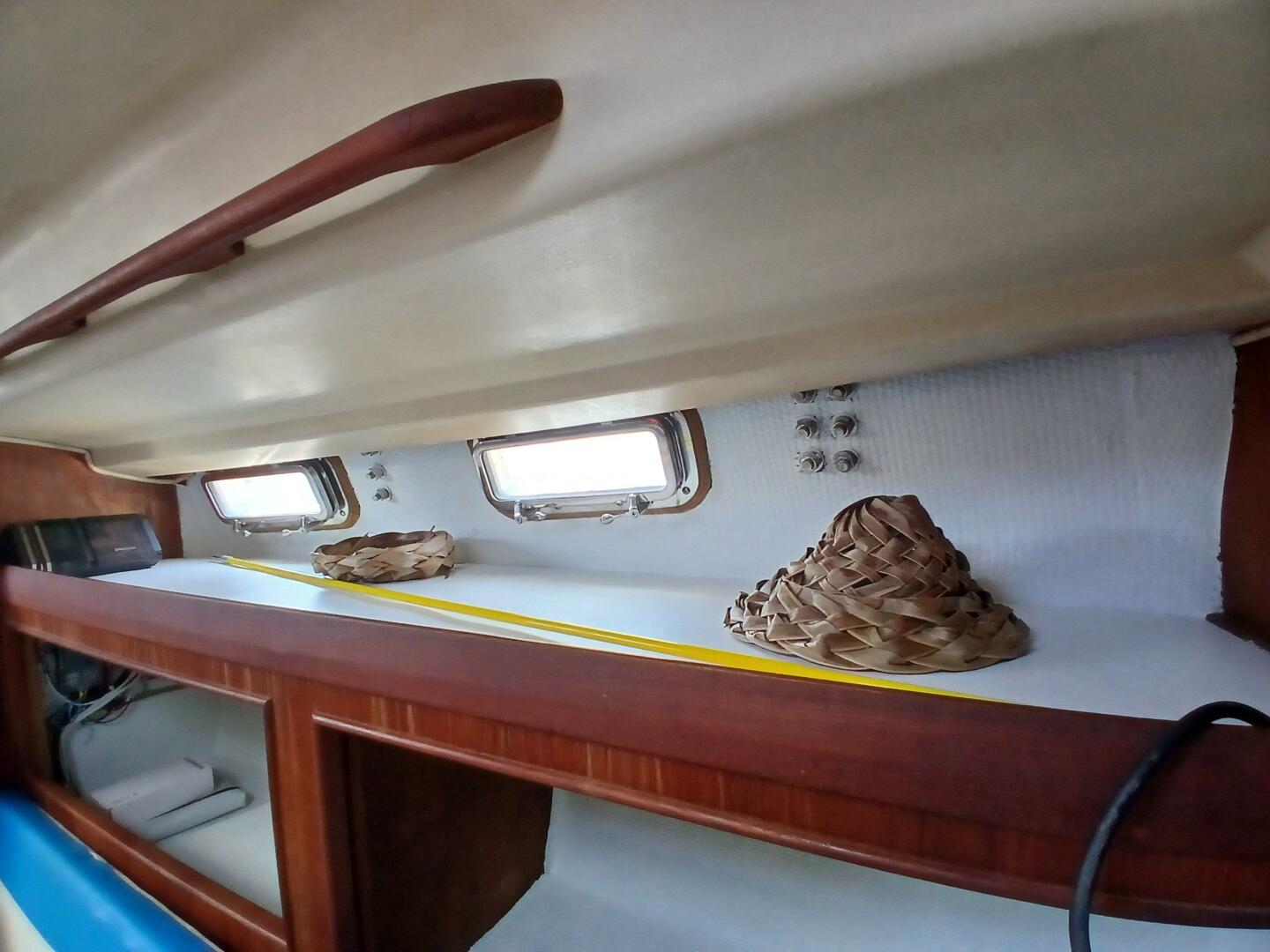

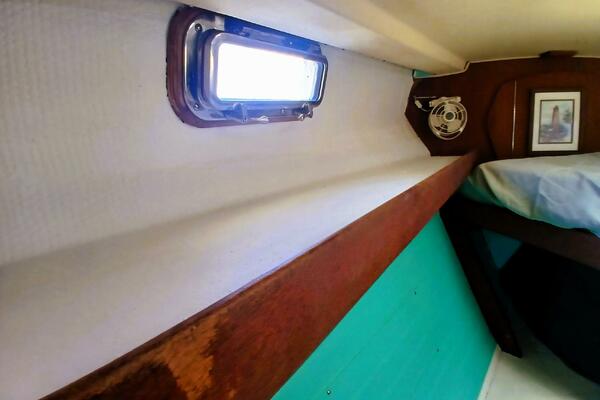

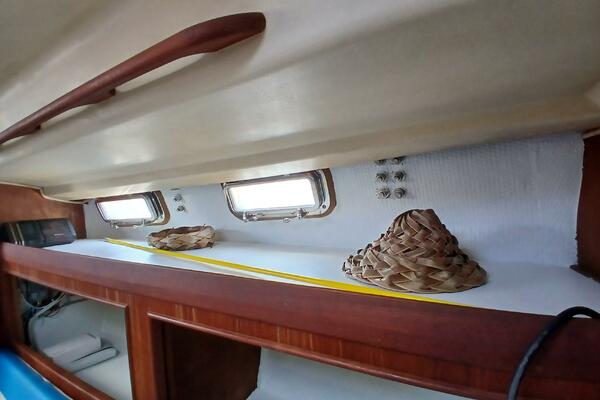

- PORTS LIGHTS: Stainless steel New Found Metals port lights all around (16 total)

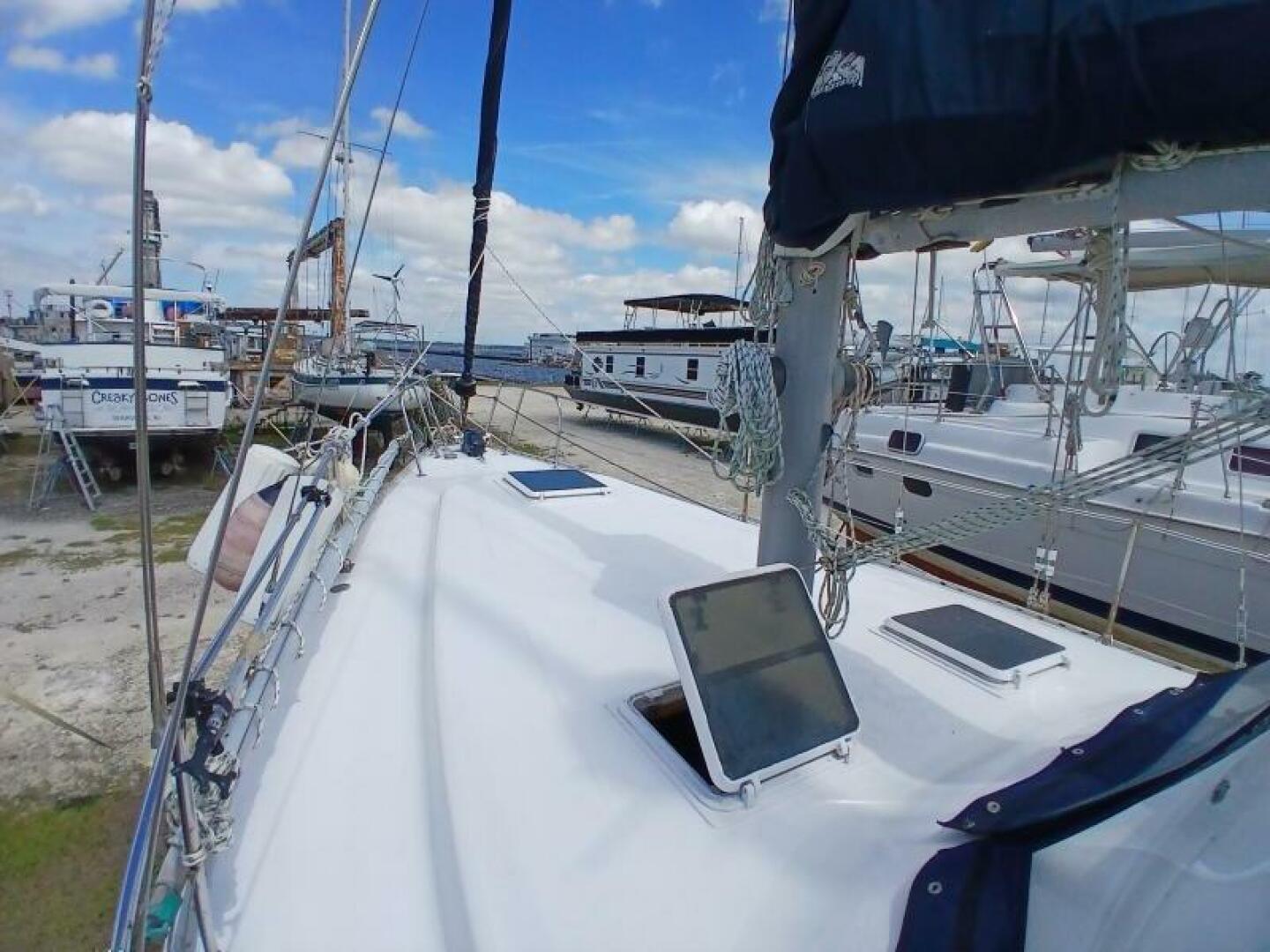

- HATCHES: All hatches rebuilt with new gaskets.
AC/HEAT
- 16,000 BTU Dometic Turbo Air conditioner forward, 6,000 BTU Dometic Turbo AC Aft. Both with Smart Touch control with humidity sensor. Both with Dometic air purifying ionizer installed. Smart Start electronic hard start kit installed on 16K unit.
- Auxiliary diesel heater for extremely cold weather.
WATER MAKER

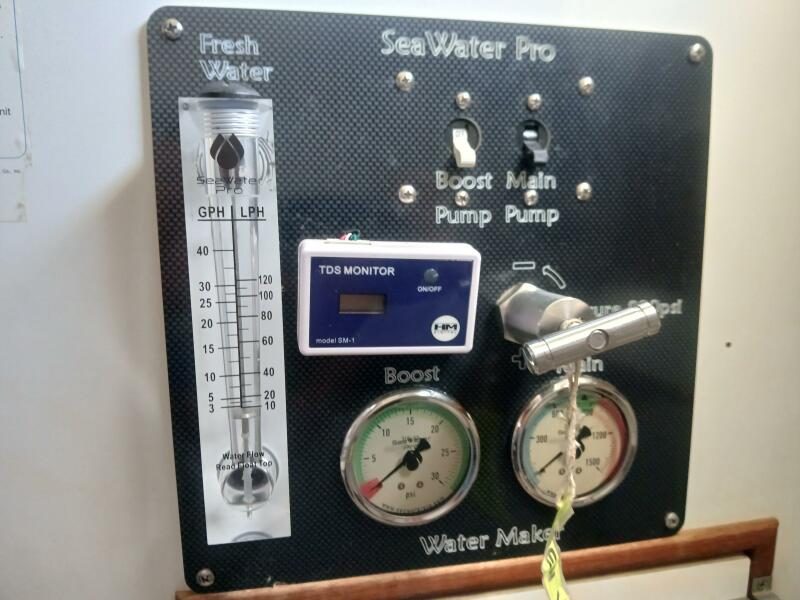

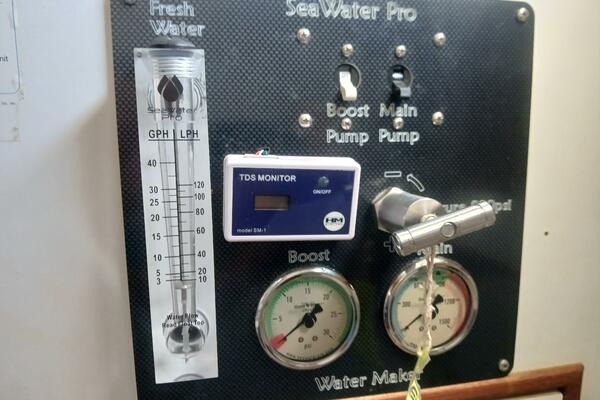

- Seawater Pro Water maker – 66 GPH
PLUMBING
- ALL PLUMBING REPLACED WITH PEX.
- Salt water washdown pump with Jabsco stainless steel quick release deck fitting and hose adapter.

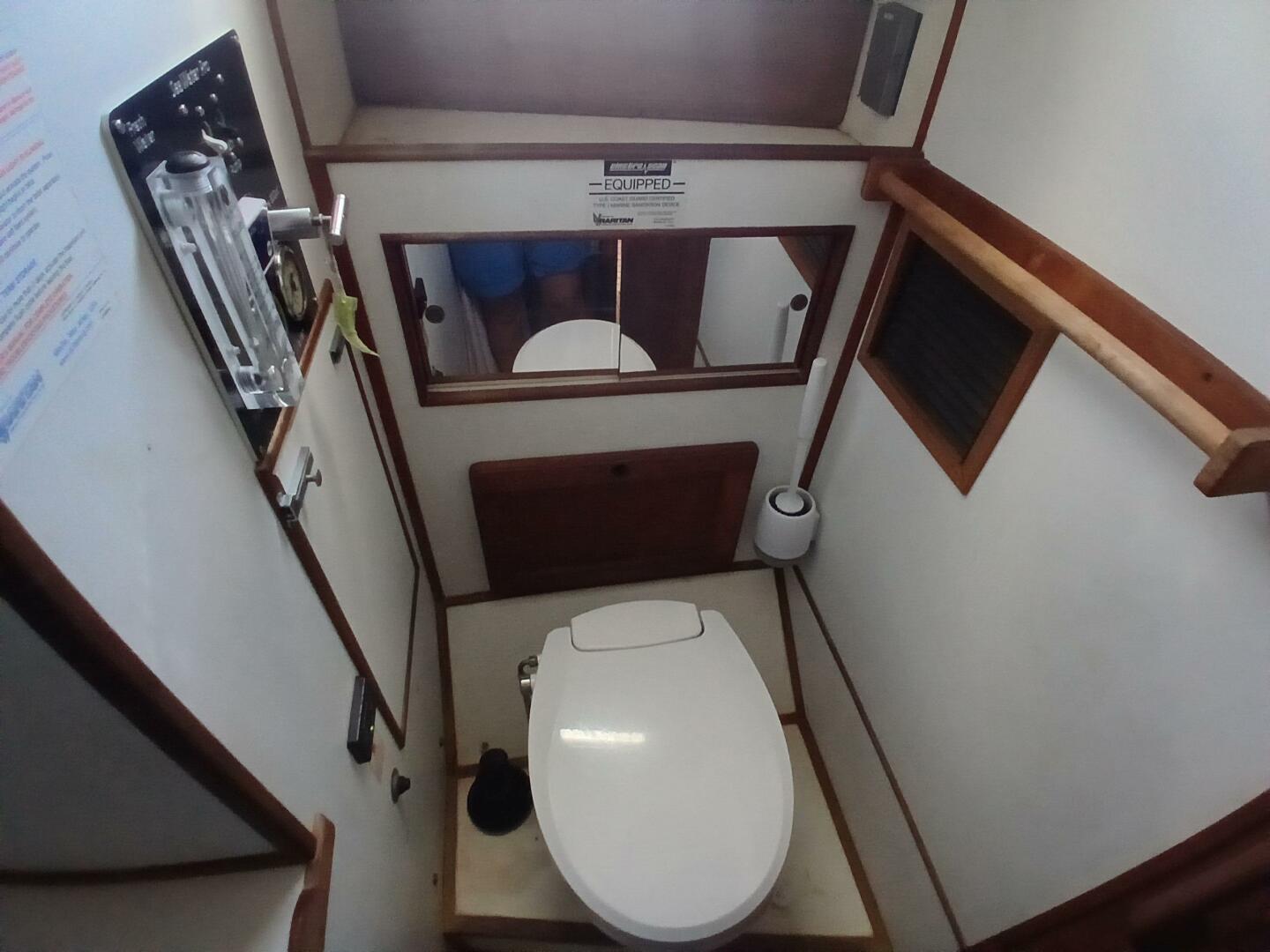

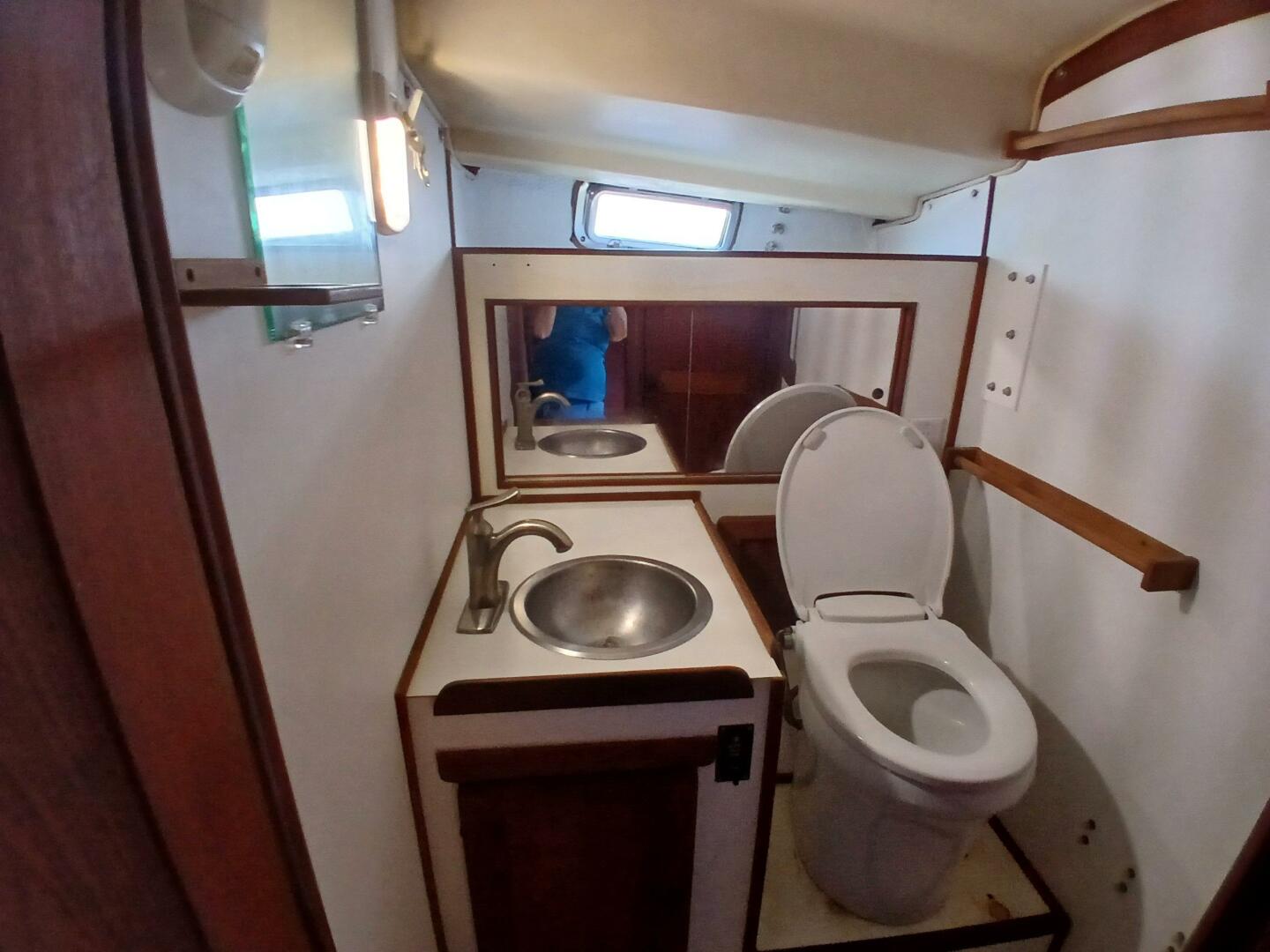

- Forward head upgraded to full size ceramic Dometic macerator toilet with bidet. Dometic poly holding tank and 12 volt pump out. Moen faucet.
- All black water hoses replaced.

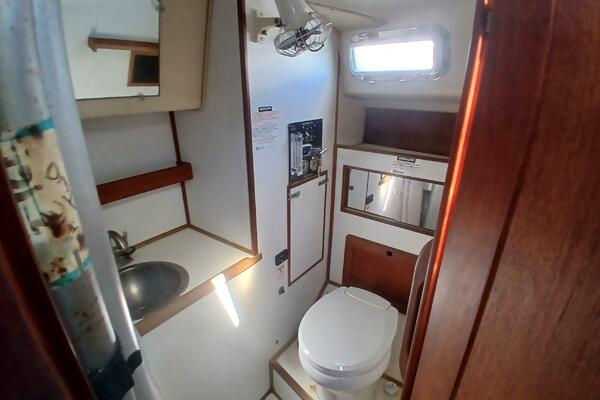

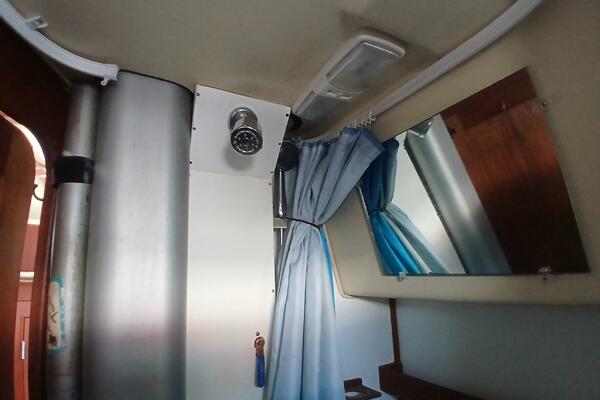

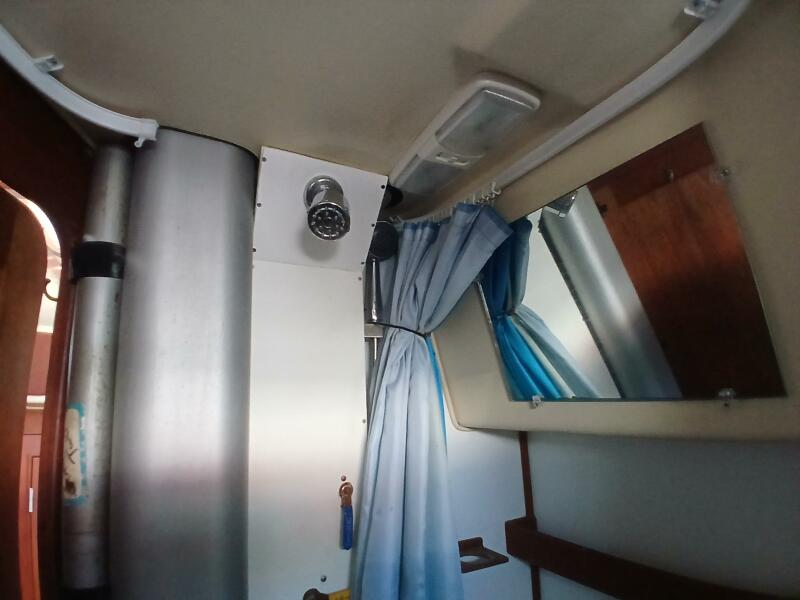

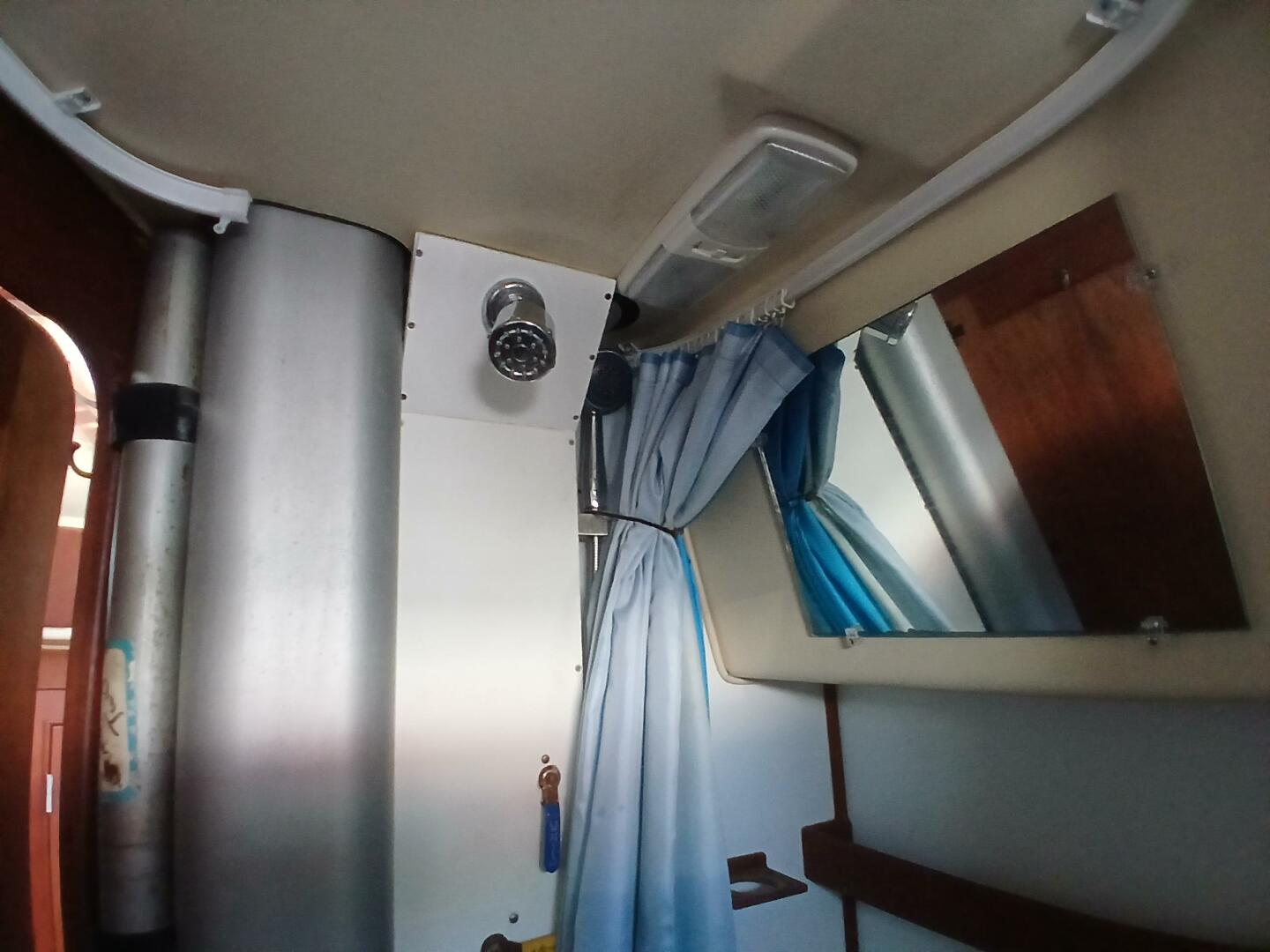

- Aft head upgraded to full size ceramic Dometic macerator toilet with bidet. Dometic poly holding tank and 12 volt pump out. Moen faucet. All black water hoses replaced. New shower assembly with 12 volt actuator for water conservation when necessary. New shower sump and pump. Set up to operate on fresh, or salt-water. Never used the salt water option due to smell and because we had such a large water maker.
- All water pumps and bilge pumps were replaced within past 2 years. Multiple replacements on board.
PROPULSION AND STEERING
- Replaced original Hynautic hydraulic steering with Sea Star hydraulic steering.
- Parker 60 GPH fuel polisher
- (2) Marine 3” inline bilge blowers – 5/2024

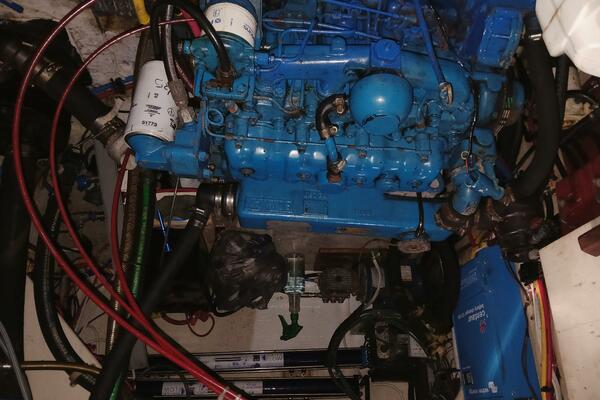

- 62 HP Perkins Diesel
- Engine fully serviced with all new water hoses, oil hoses, fresh water pump, salt water pump, new 120-amp alternator, new starter, oil pan gasket. New driveshaft, carrier bearing and cutlass bearing.
- Multiple spares on board for all systems including (2) starters, an alternator,(3) water pumps for the engine. Fuel injectors, thermostats, belts, filters, etc. Also, multiple replacement zinks for shaft and rudder shoe.
RIGGING AND SAILS
- New Standing rigging
- New Running Rigging
- Both masts removed and inspected.
- All wiring in masts replaced
- All parts on mast replaced
- New: shivs for halyards, blocks for stack packs, antennas, LED lights all around

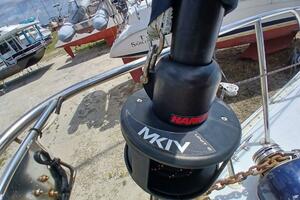

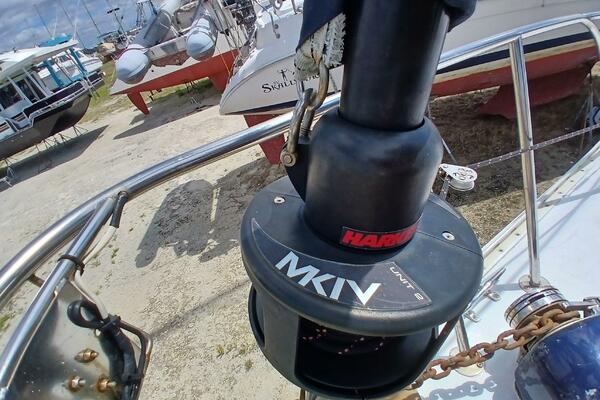

- New Harkin roller fuller for Genoa.
- All sail winches upgraded or rebuilt.
- Genoa sheet winches upgraded to Lewmar Ocean 46 self-tailing 2 speed,
- Main halyard winches upgraded to Lewmar Ocean 30 self-tailing 2 speed.
- Additional Lewmar Ocean 12 winch added as a backup.
- All other winches cleaned greased and rebuilt. Maintenance kit for winches onboard which includes grease, new springs and pawls.
- All blocks and tackle for sail sheets replaced with new harkin sets.
- All stack pack lines replaced and upgraded to new blocks from old rings.
- All sails in good working order.
- Sails and stack packs removed, cleaned and restiched by Latell Sails in Deltaville, VA 8/2023
GROUND TACKLE

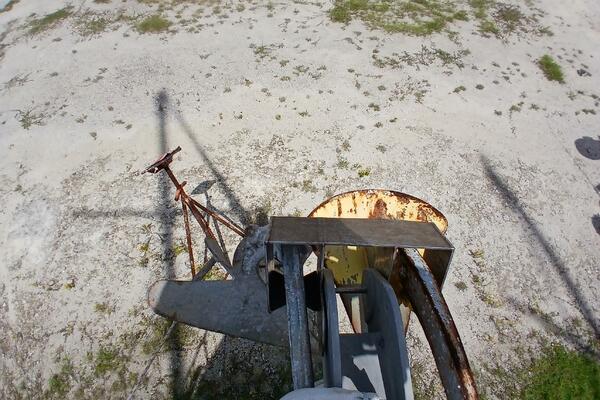

- Spade 140 main anchor coupled with 300’ of 3/8” galvanized chain,
- secondary anchor is a 45 lbs CQR mated with 50’ 3/8” galvanized chain and 300’ of 3 strand rope rode.
- Both anchors mounted on bow pulpit .

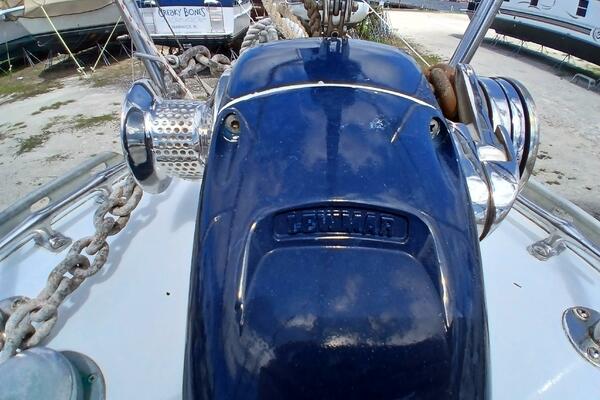

- Lewmar H3 windlass. Rebuilt in 2025. Spare clutch and relay onboard.
- Wireless remote (2) and wired switch on cockpit pedestal.
- Additional anchor located in port settee in salon.
TENDER

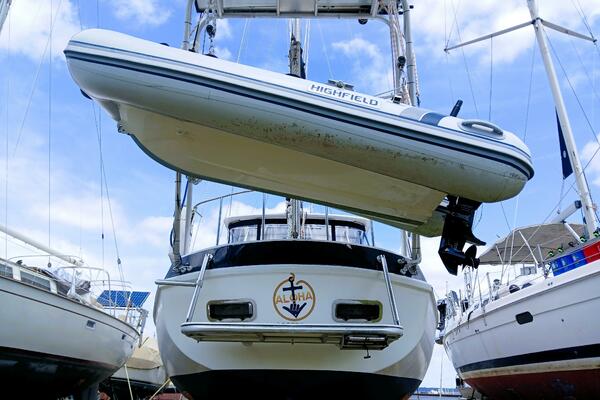

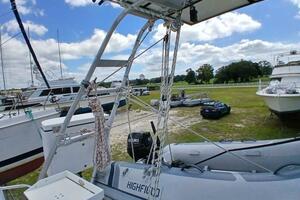

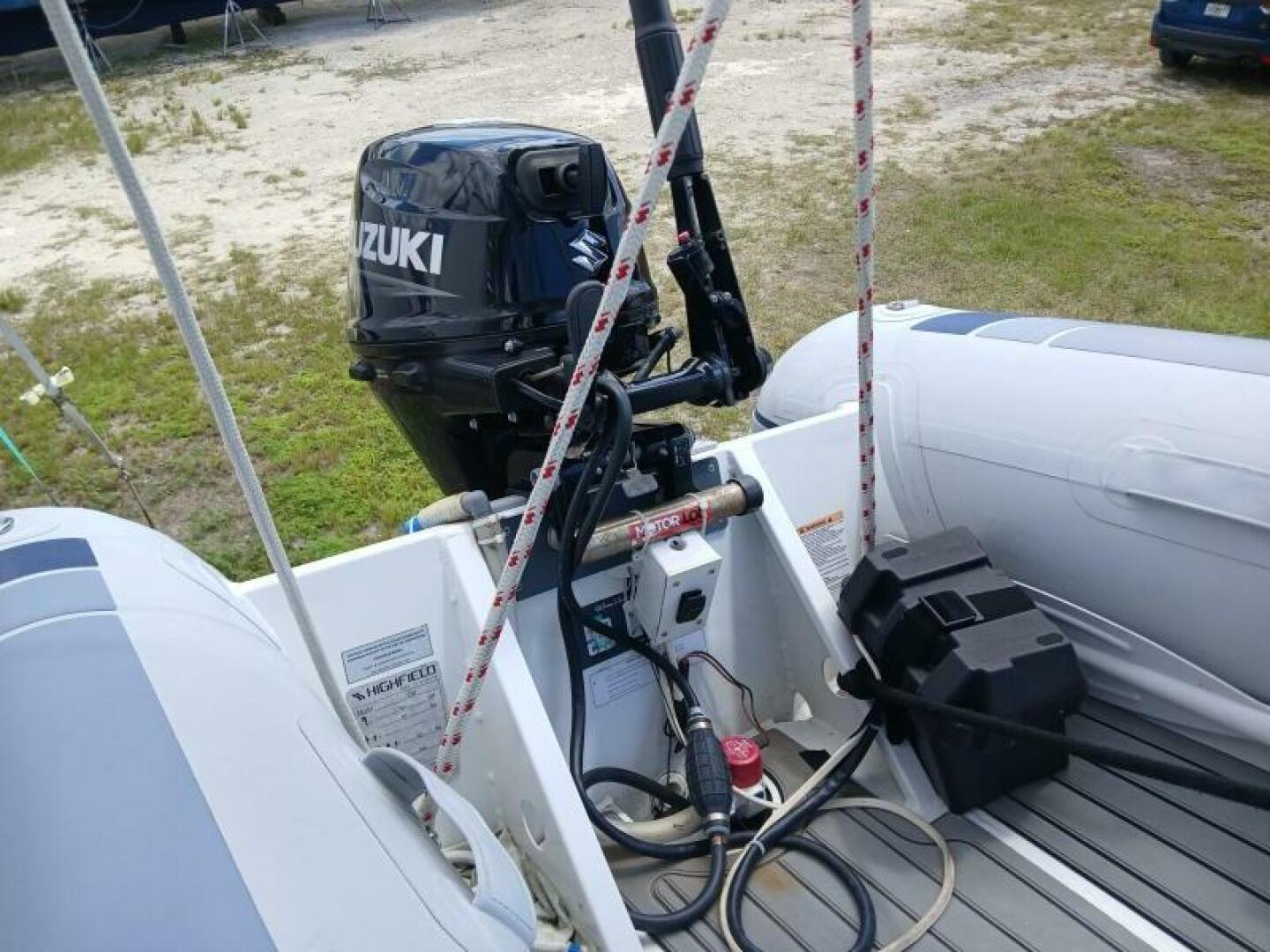

- Highfield hard bottom inflatable Tender (not registered but with certificate of origin) with 20 Hp Suzuki 4 stroke outboard, all new in 2024
INTERIOR LIVING SPACE: UPGRADES

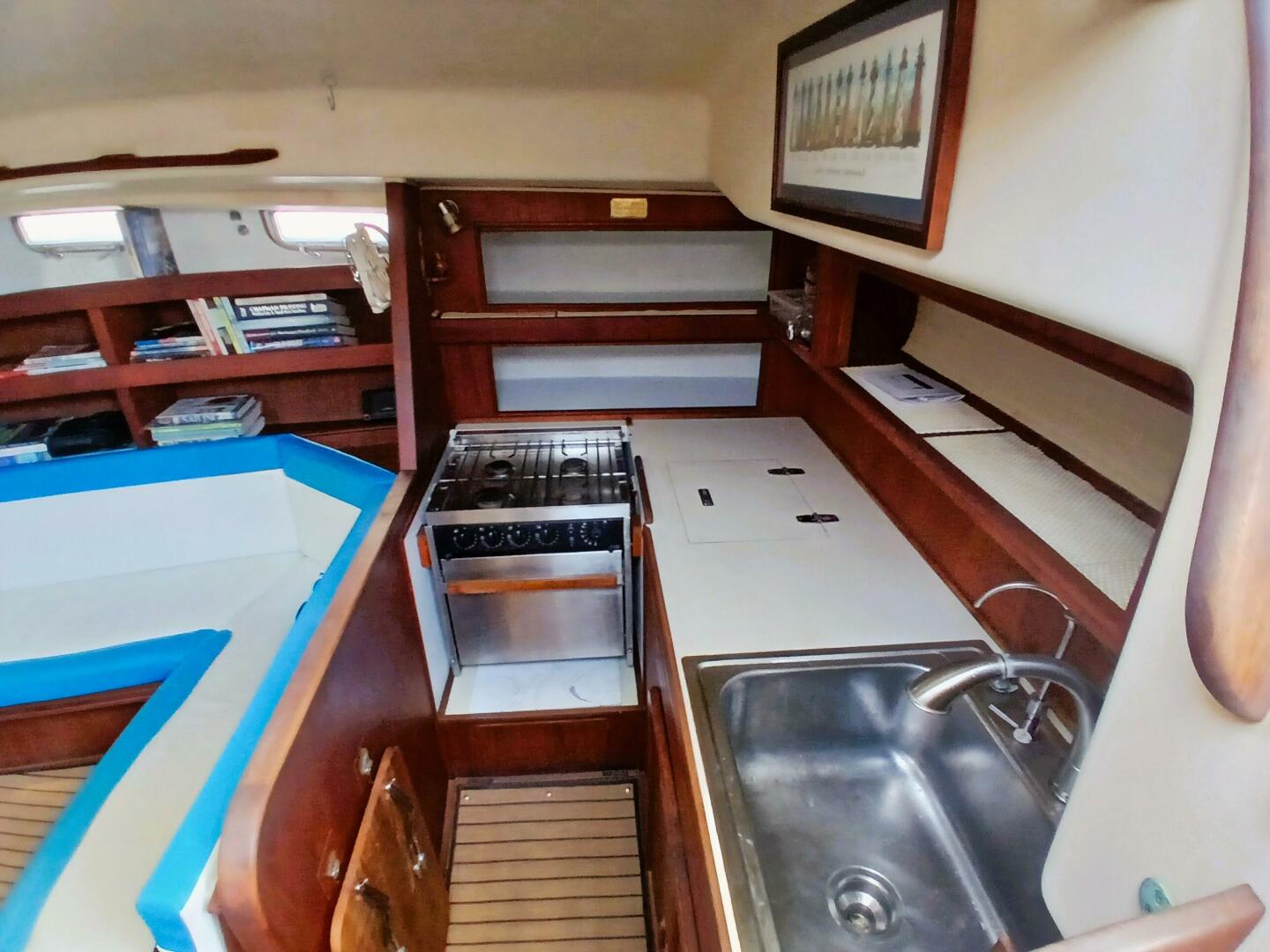

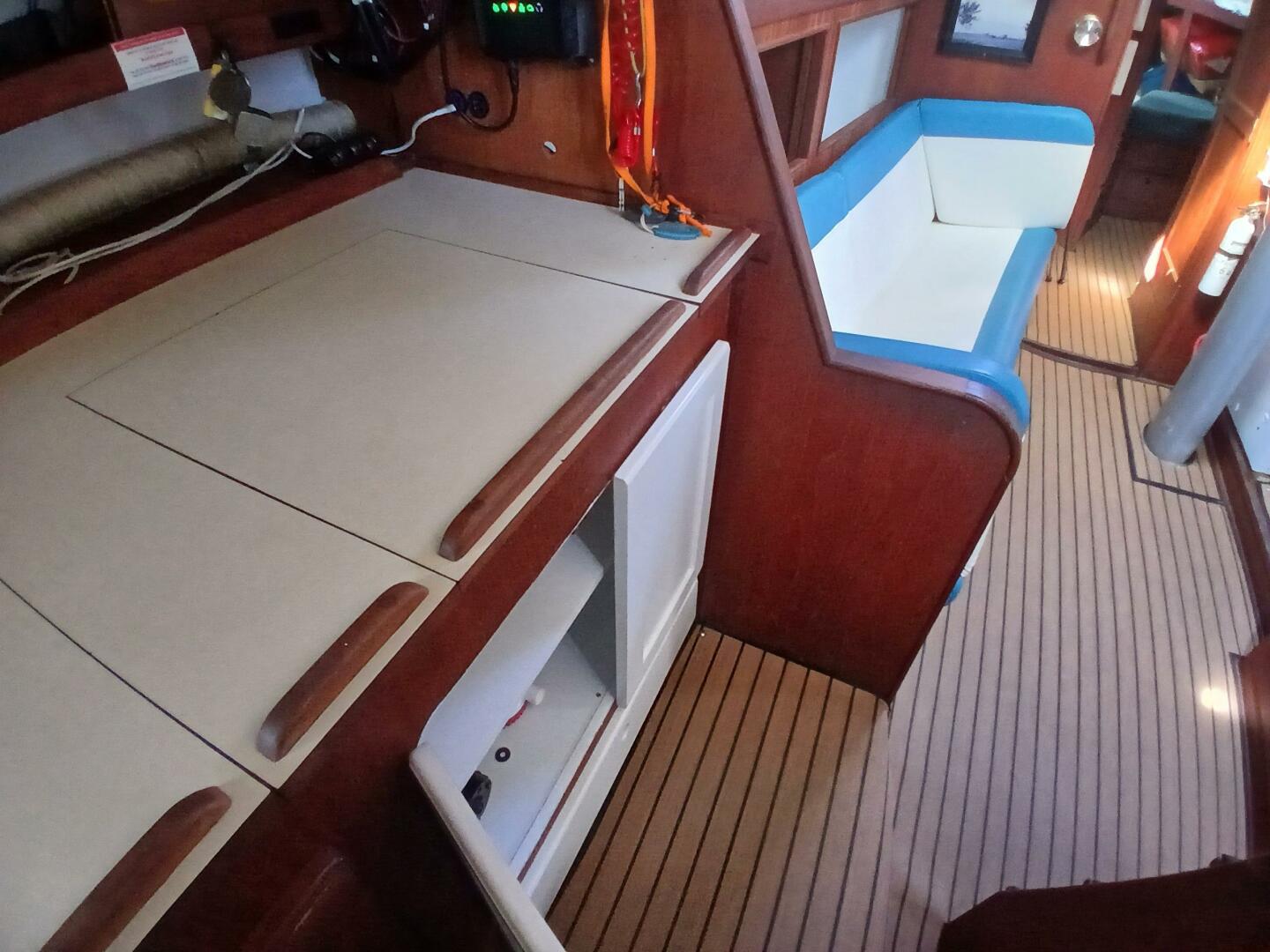

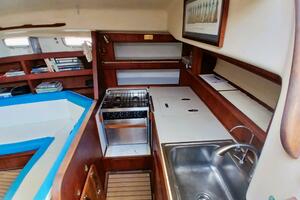

GALLEY

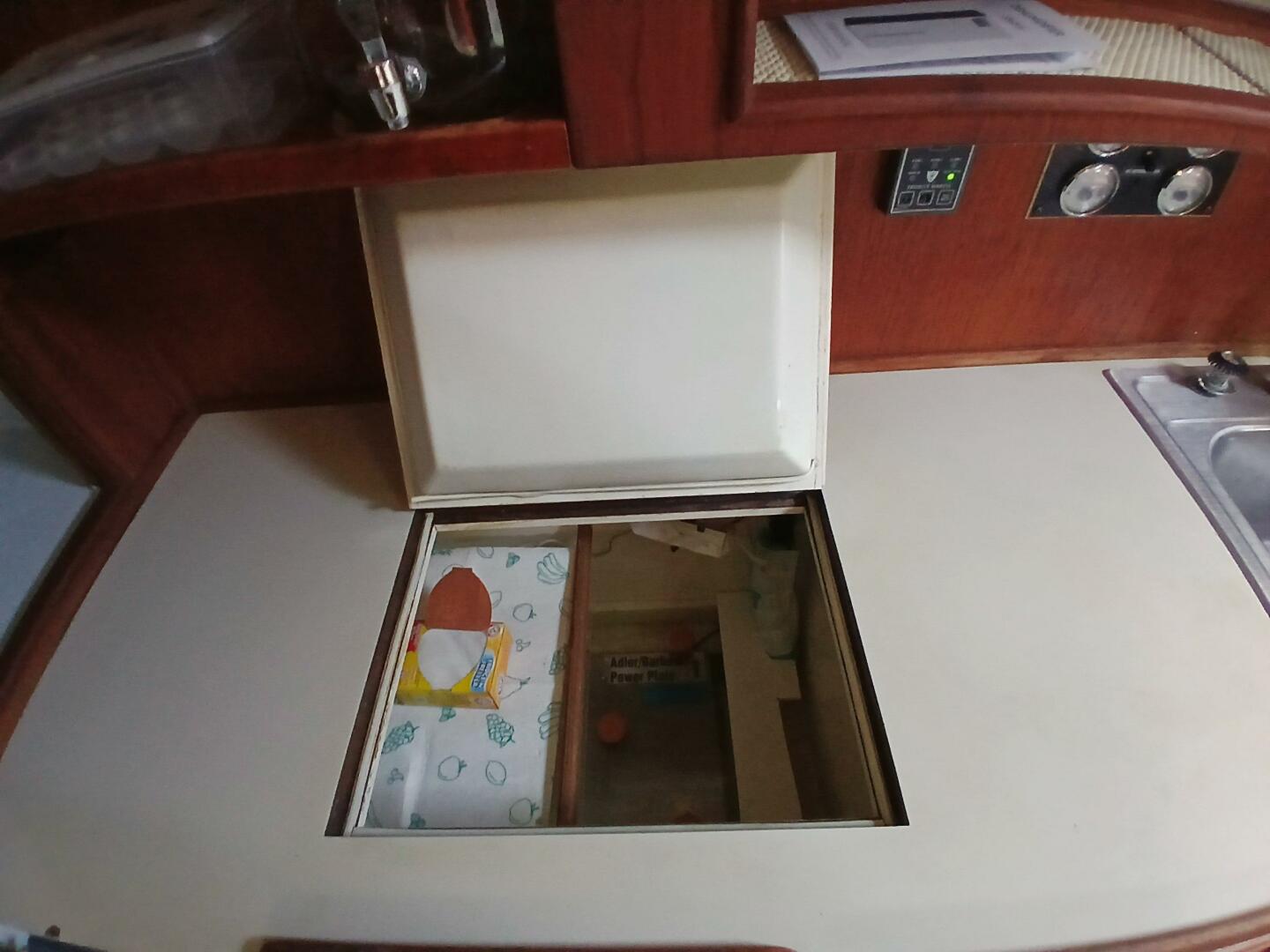

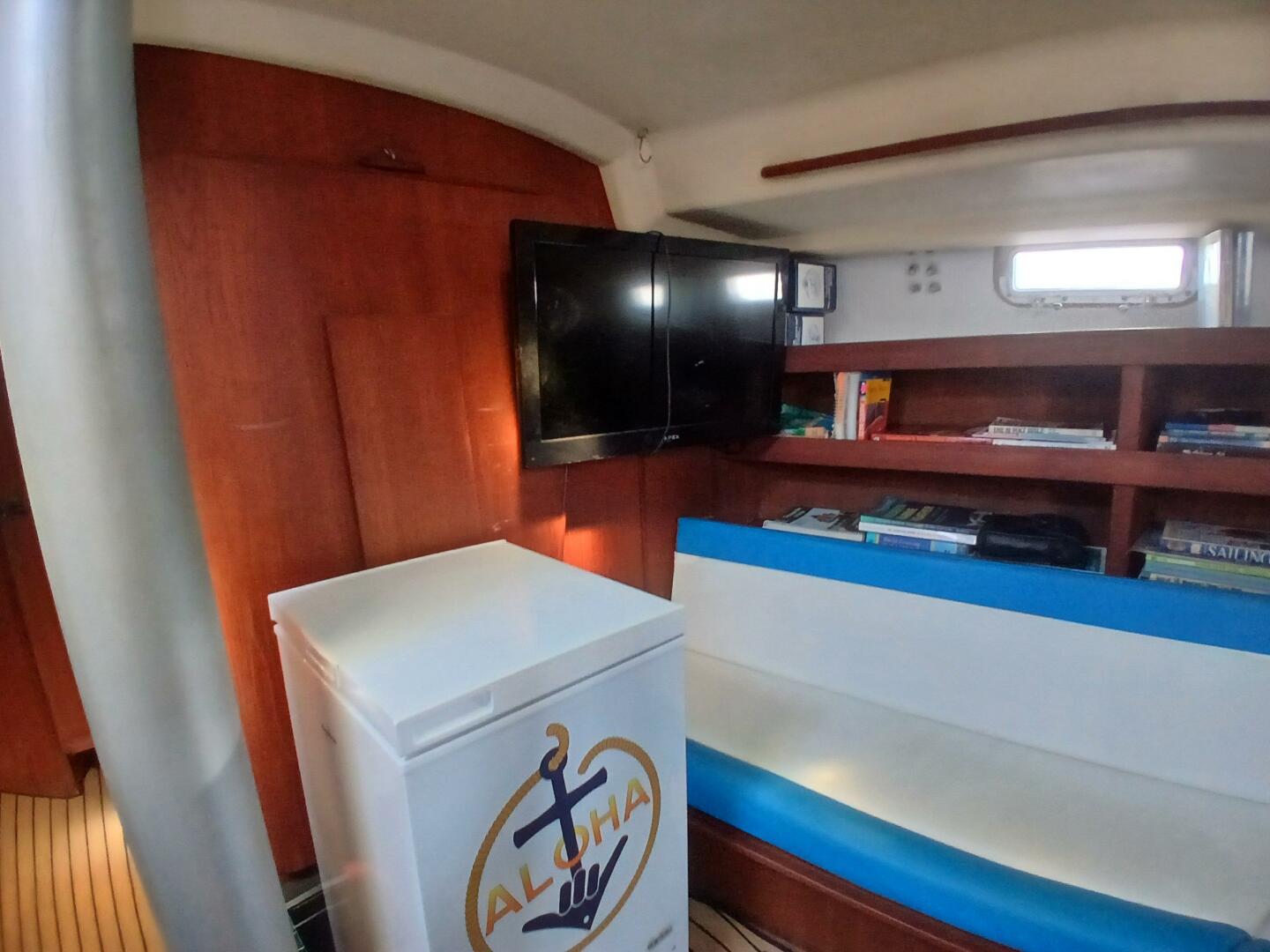

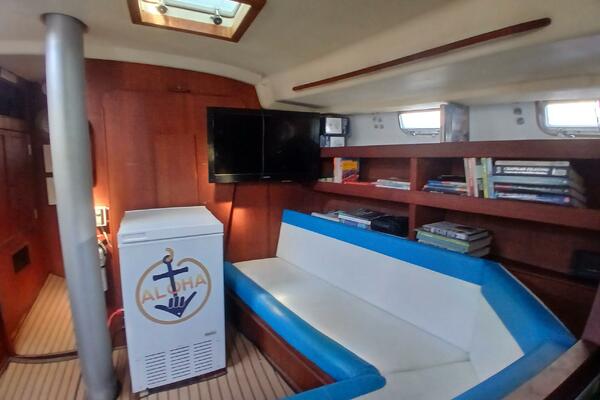

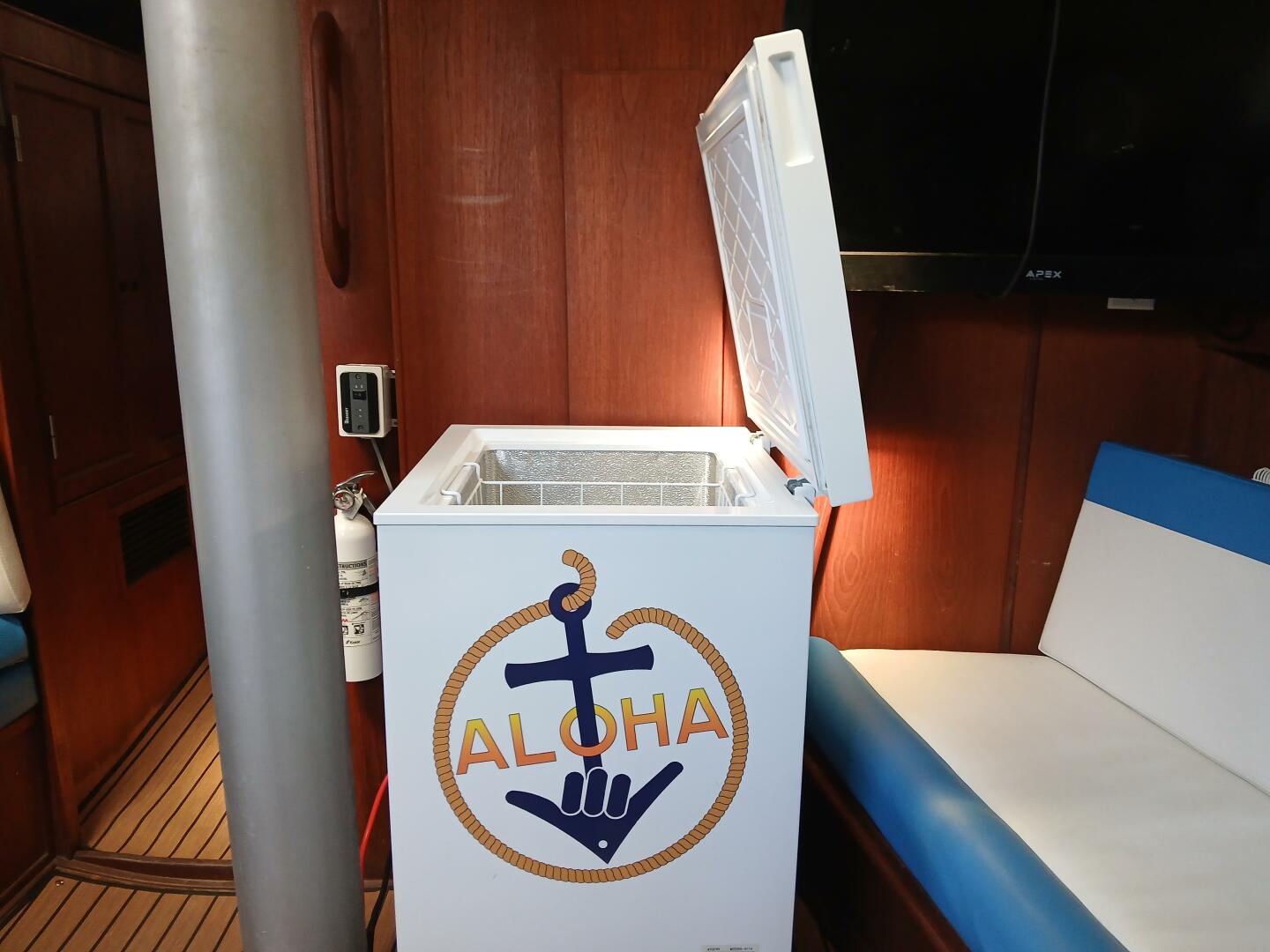

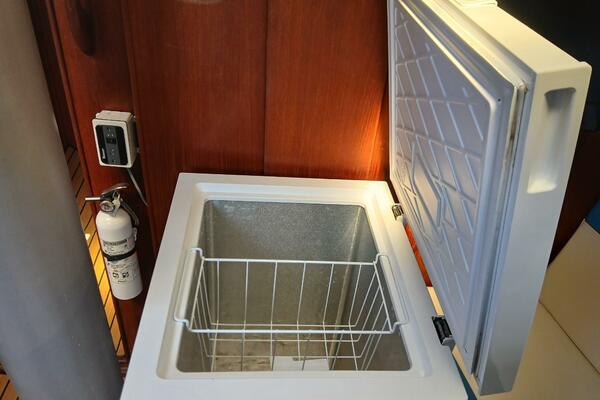

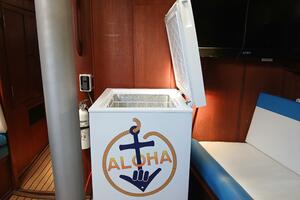

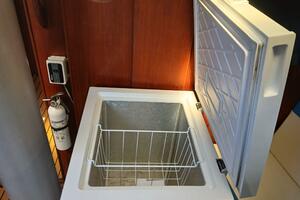

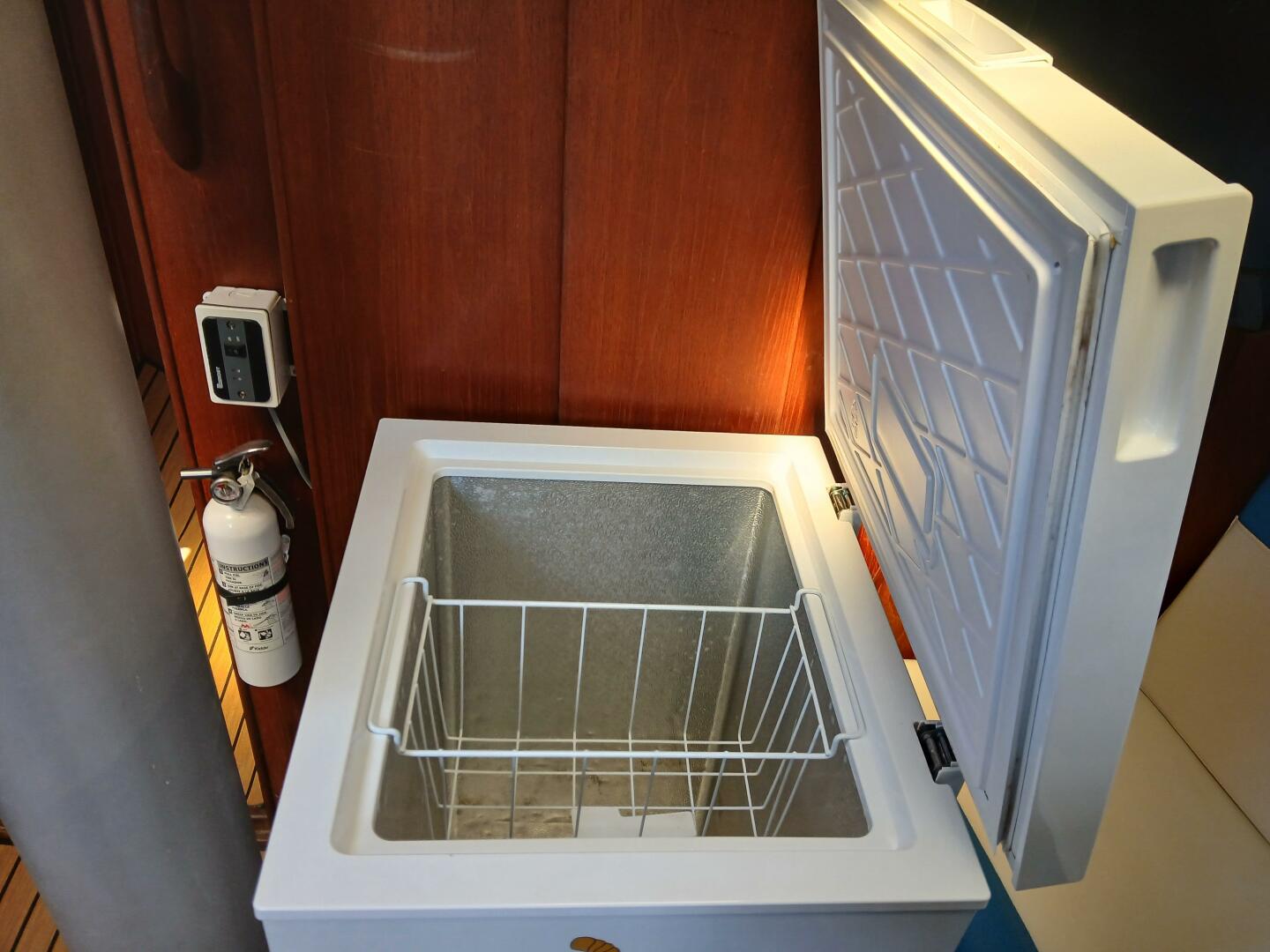

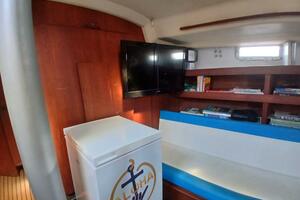

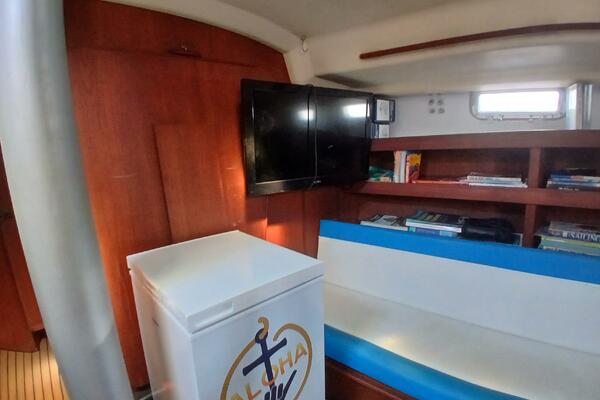

- Upgraded refrigeration, Dometic Adler Barber CU-100 coupled to a VD-160 stainless steel coldplate and 12 volt interior circulation fans. Separate 3.2 cu ft. chest freezer installed late 2023. Can be removed if new owners do not want.

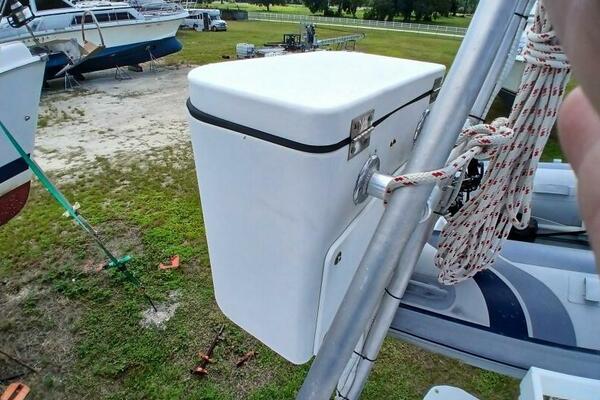

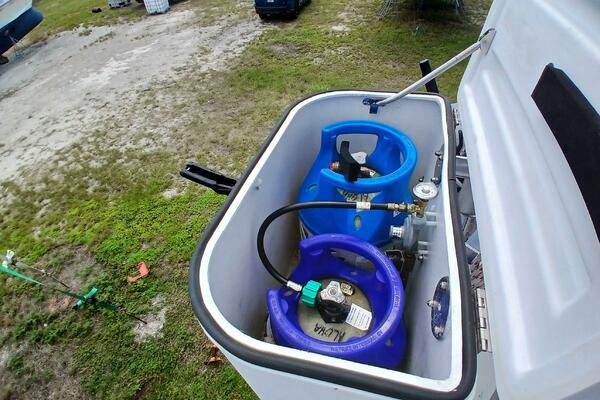

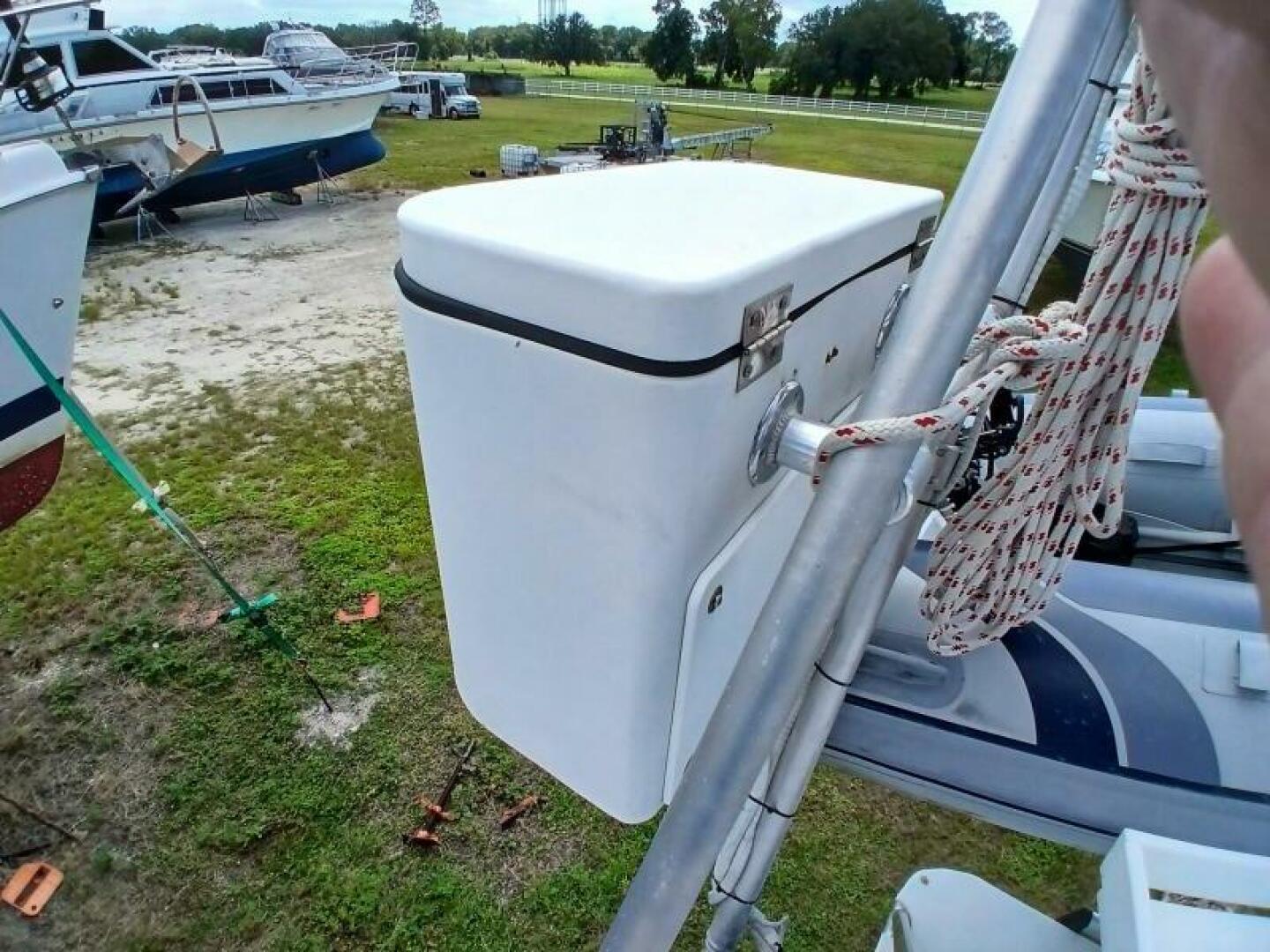

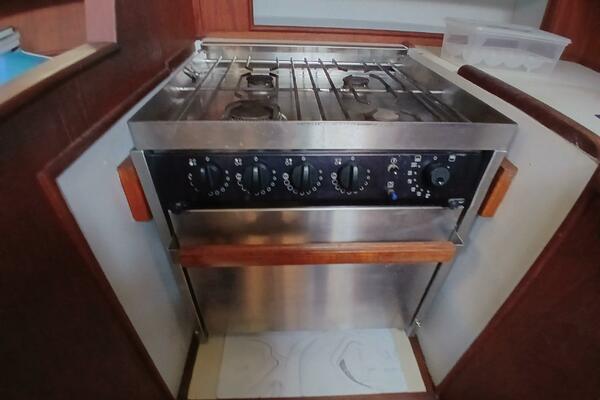

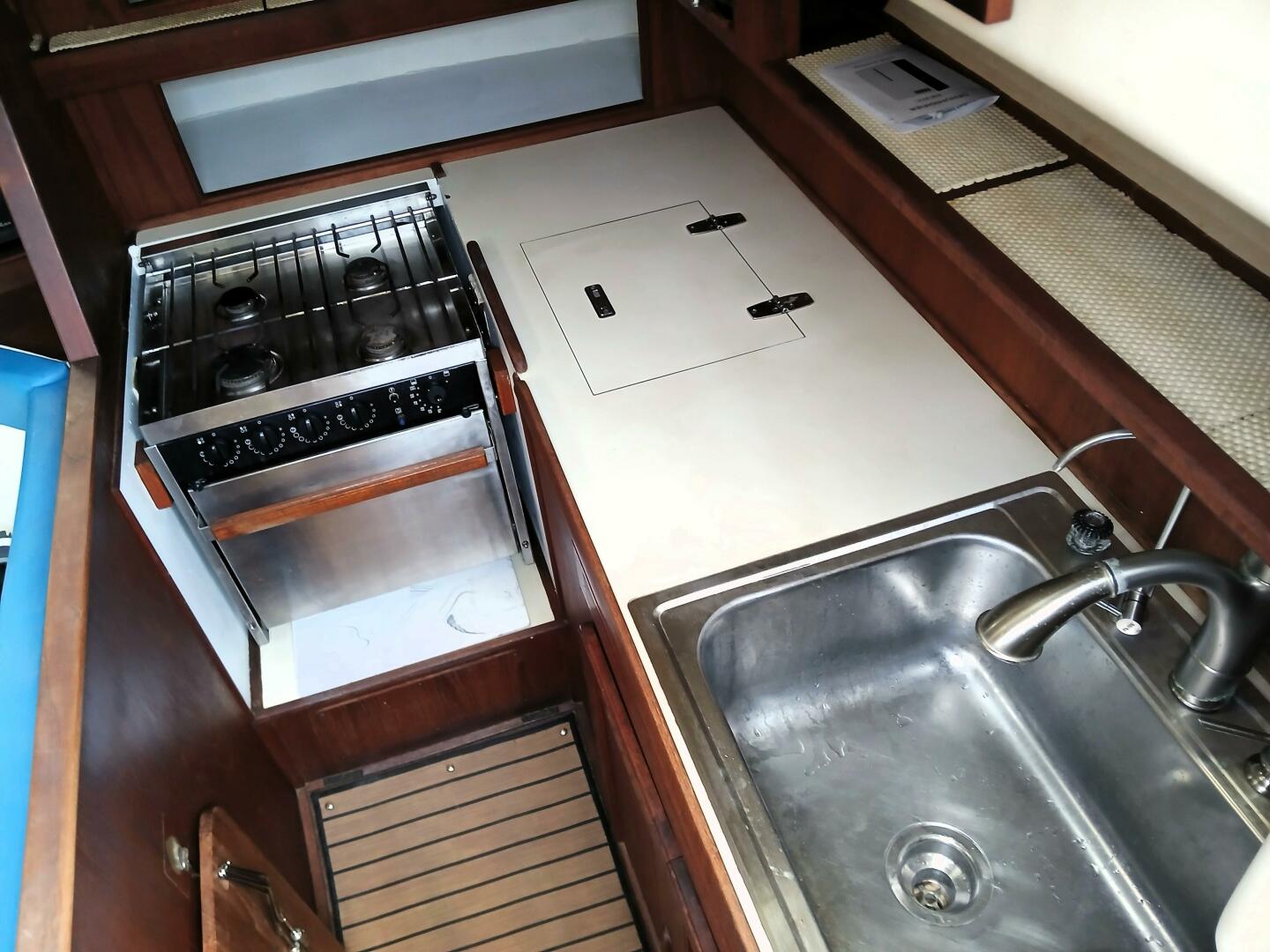

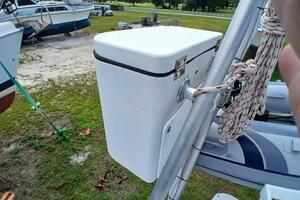

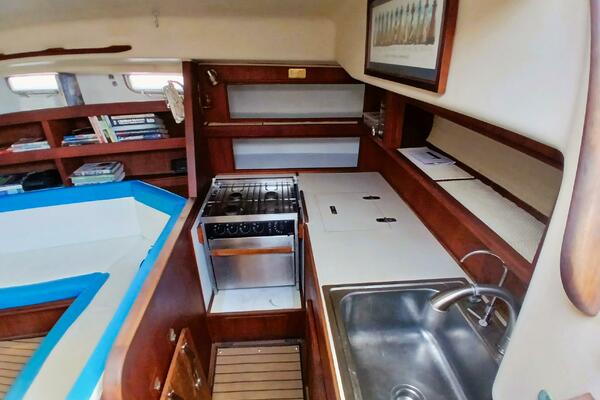

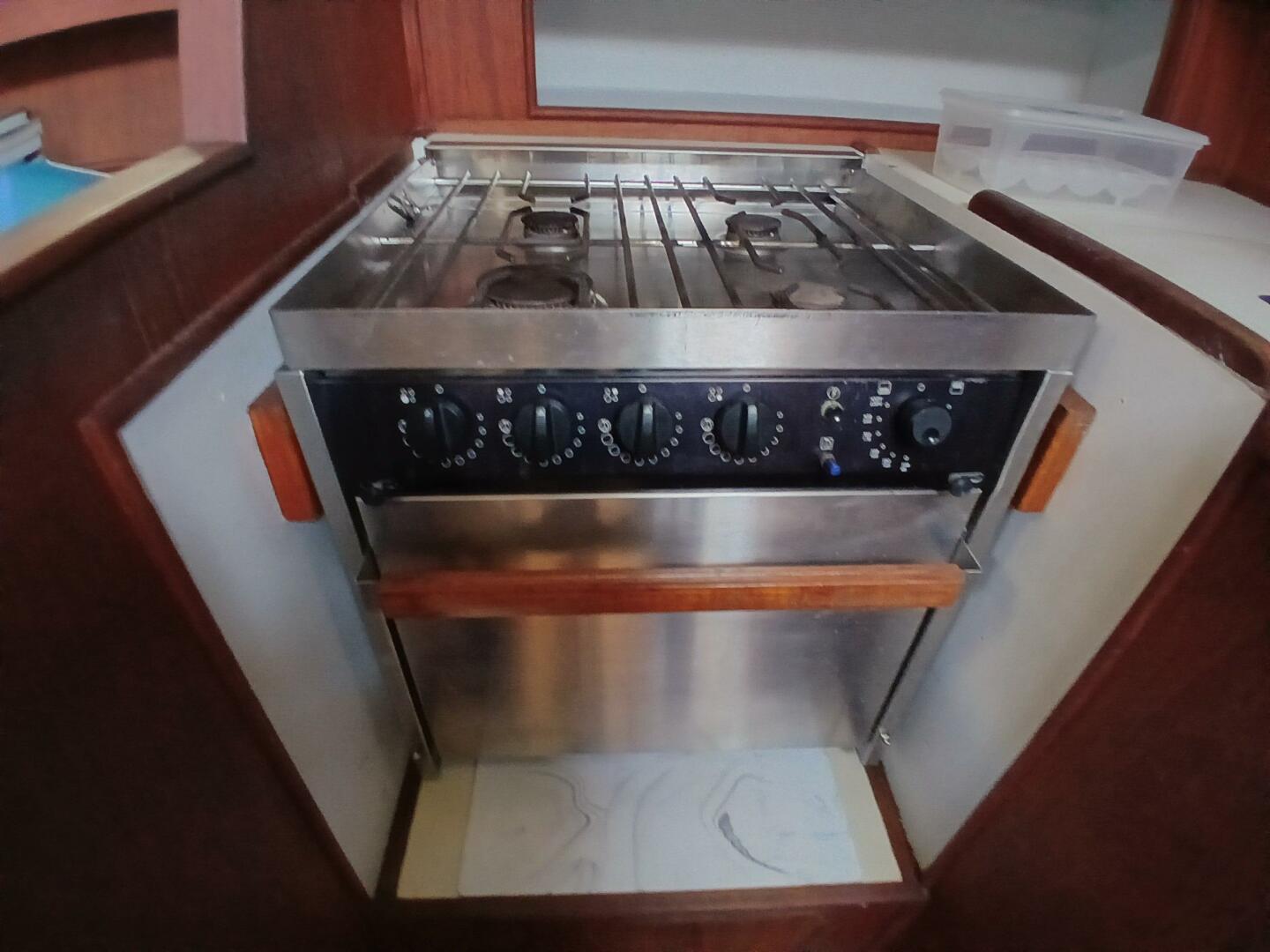

- Force 10 (4 burner) oven with Trident propane switch and alarm. Trident propane locker mounted to solar arch with (2) Viking composite 18 L propane tanks.

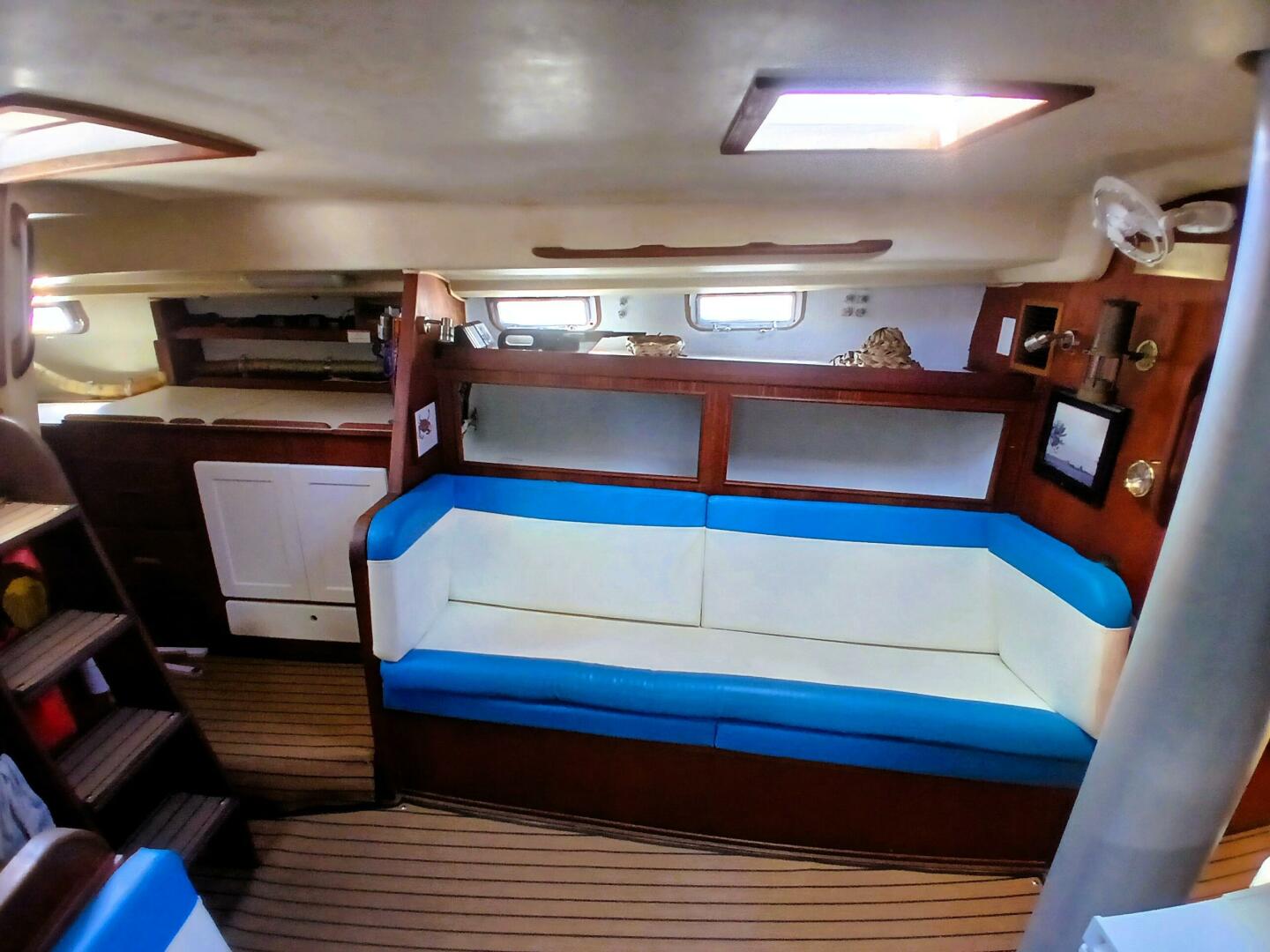

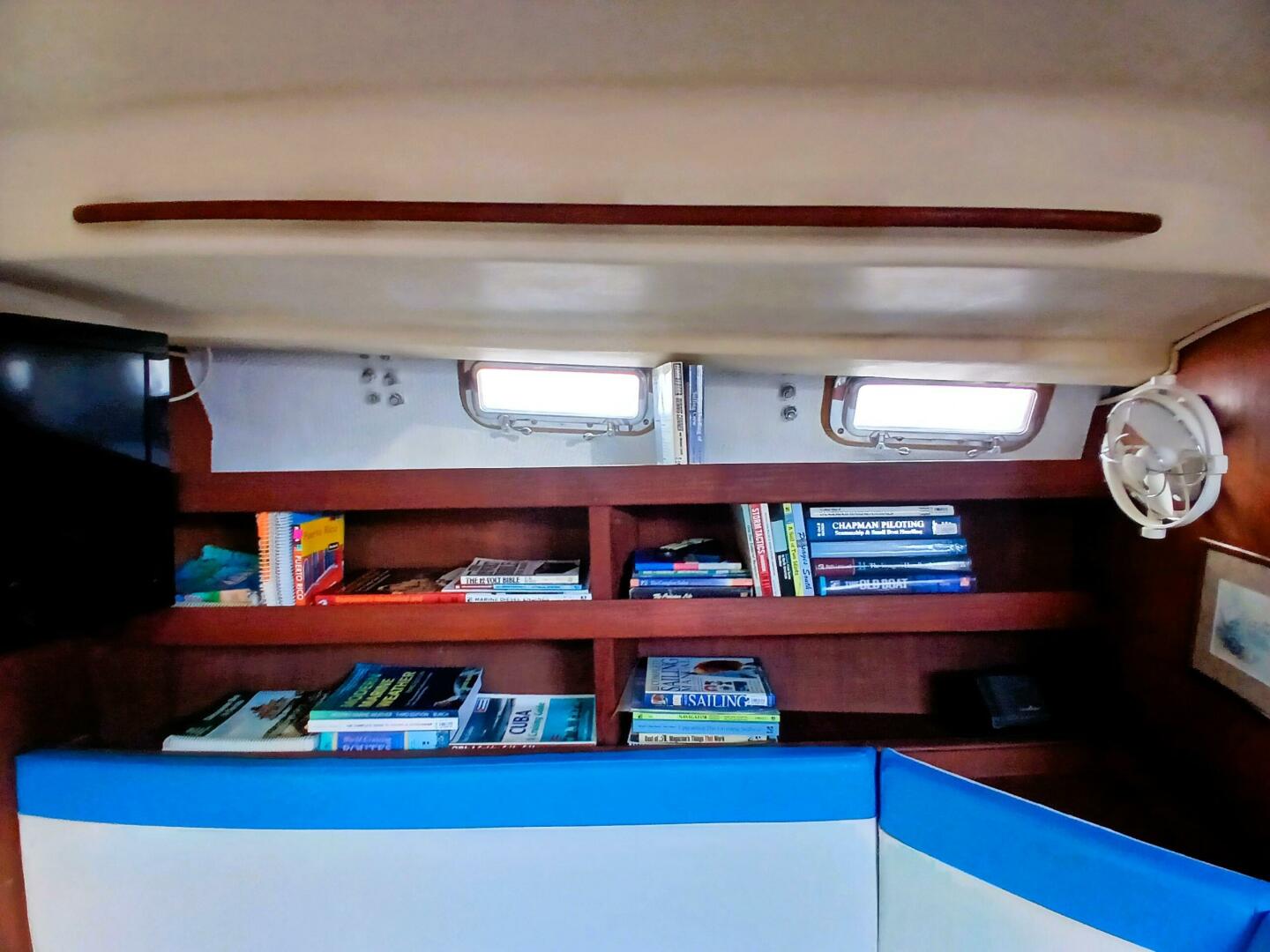

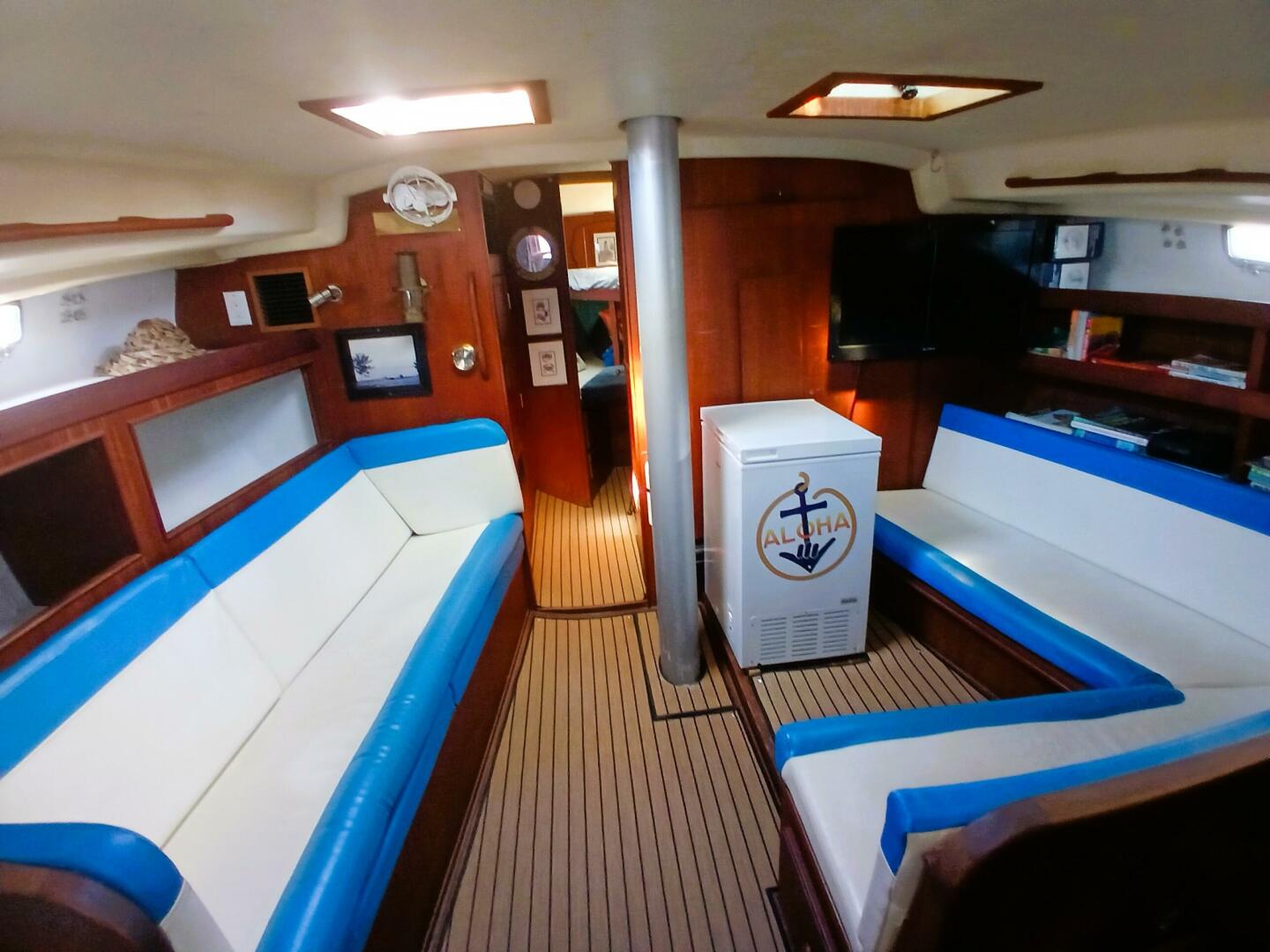

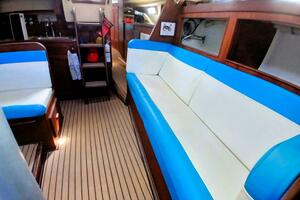

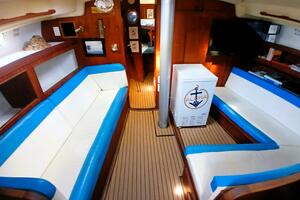

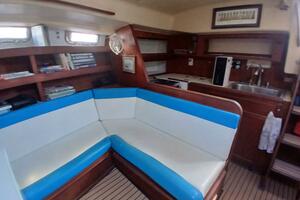

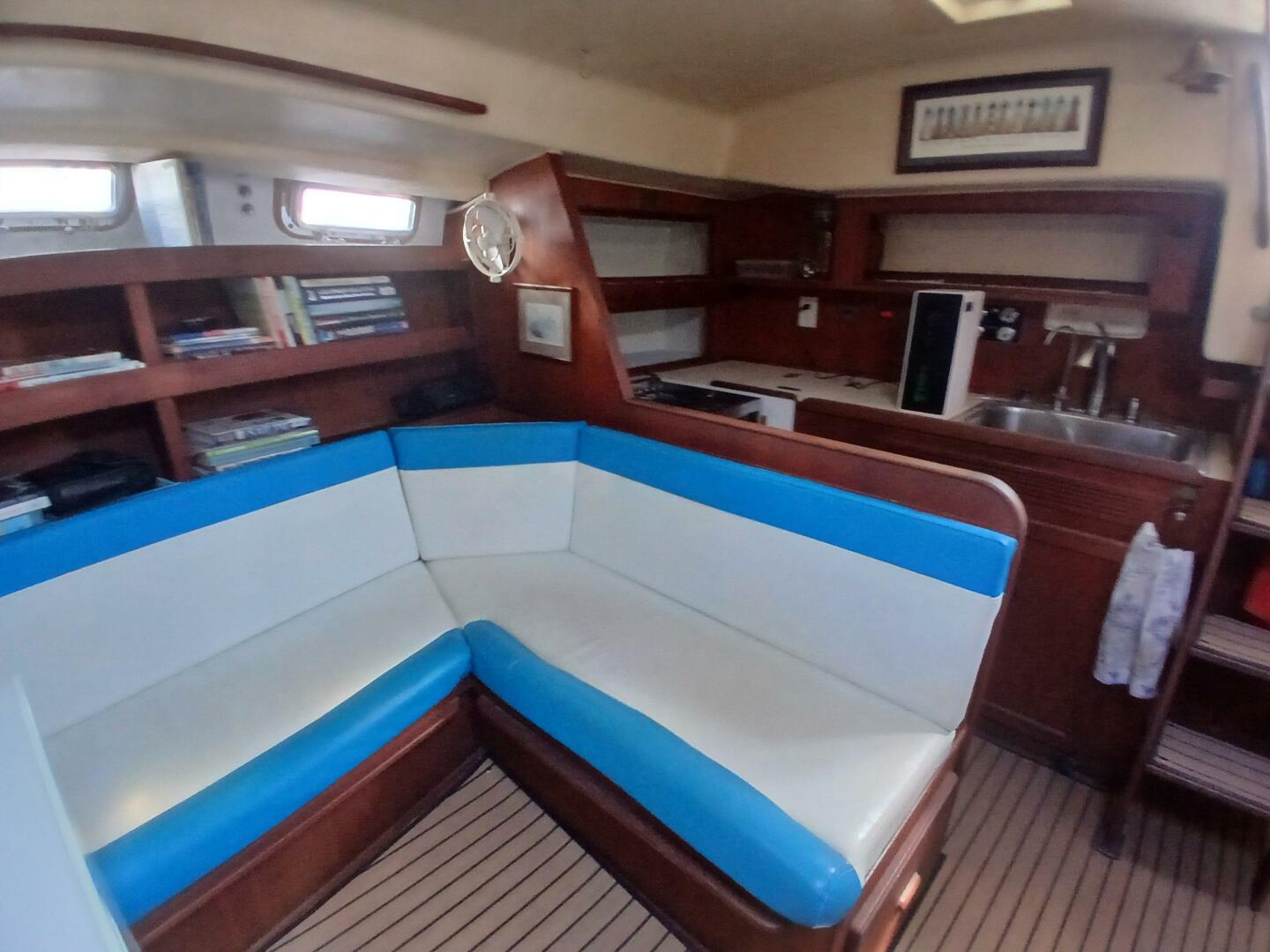

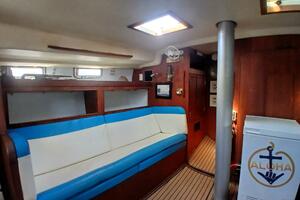

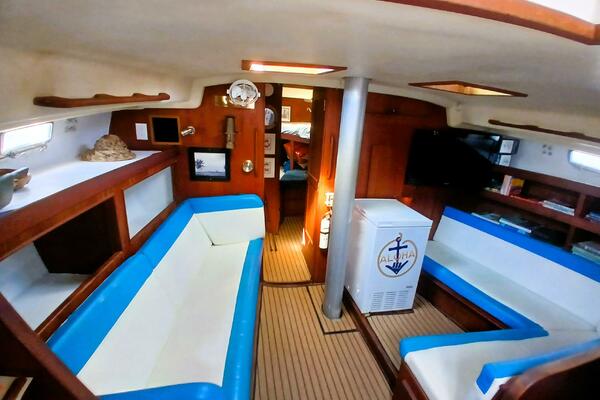

SALON

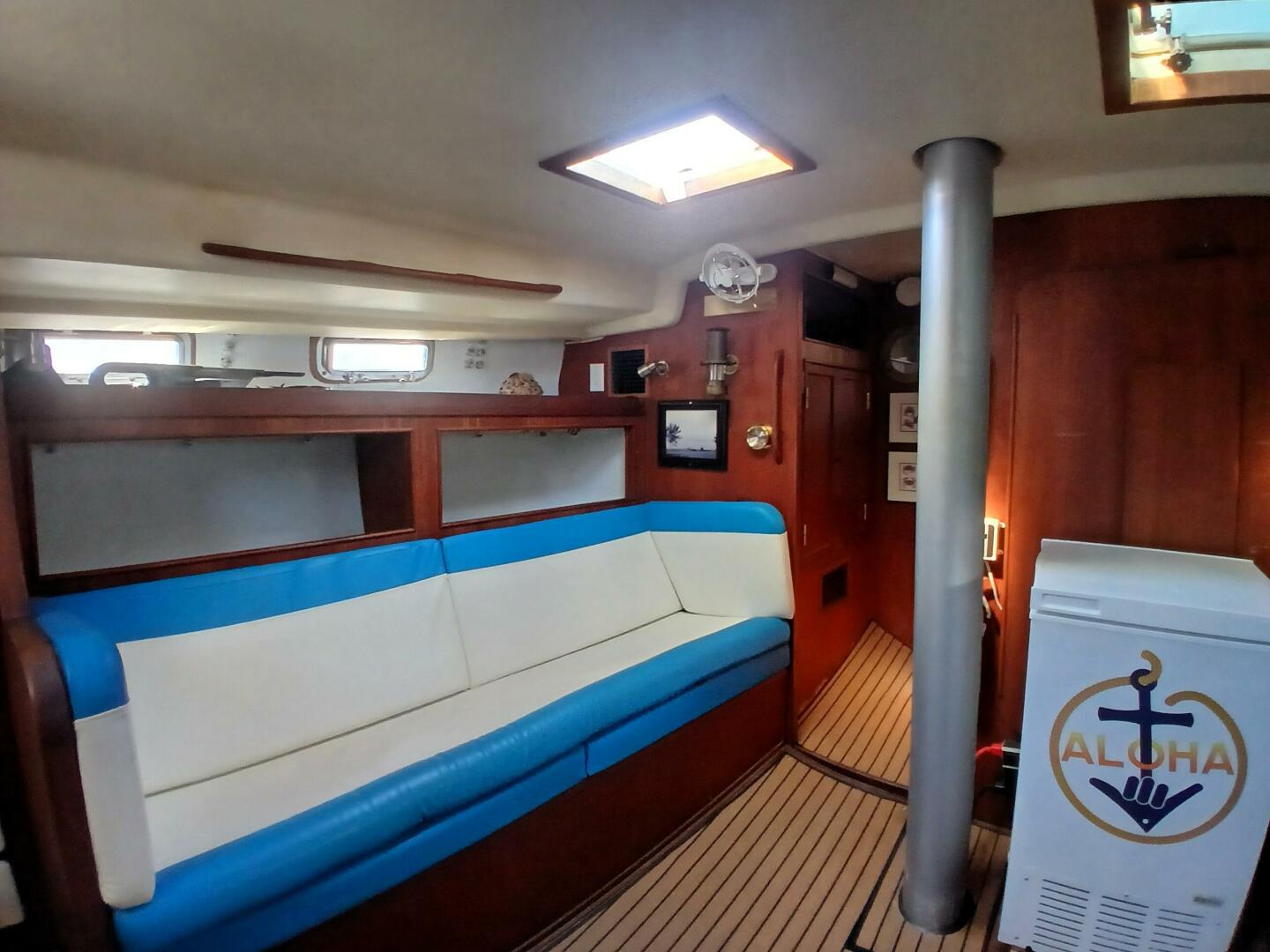

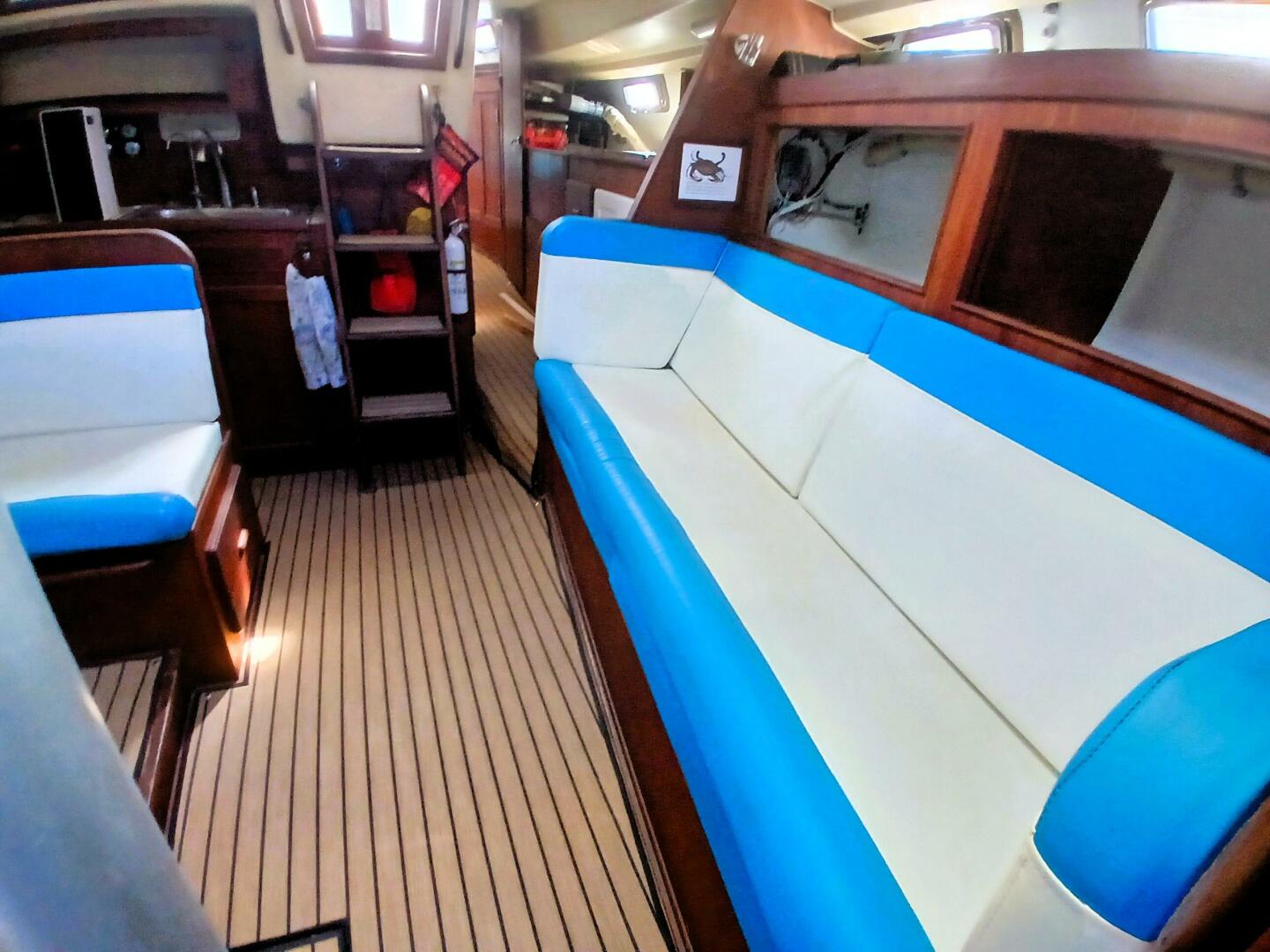

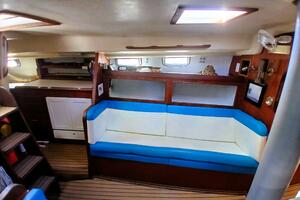

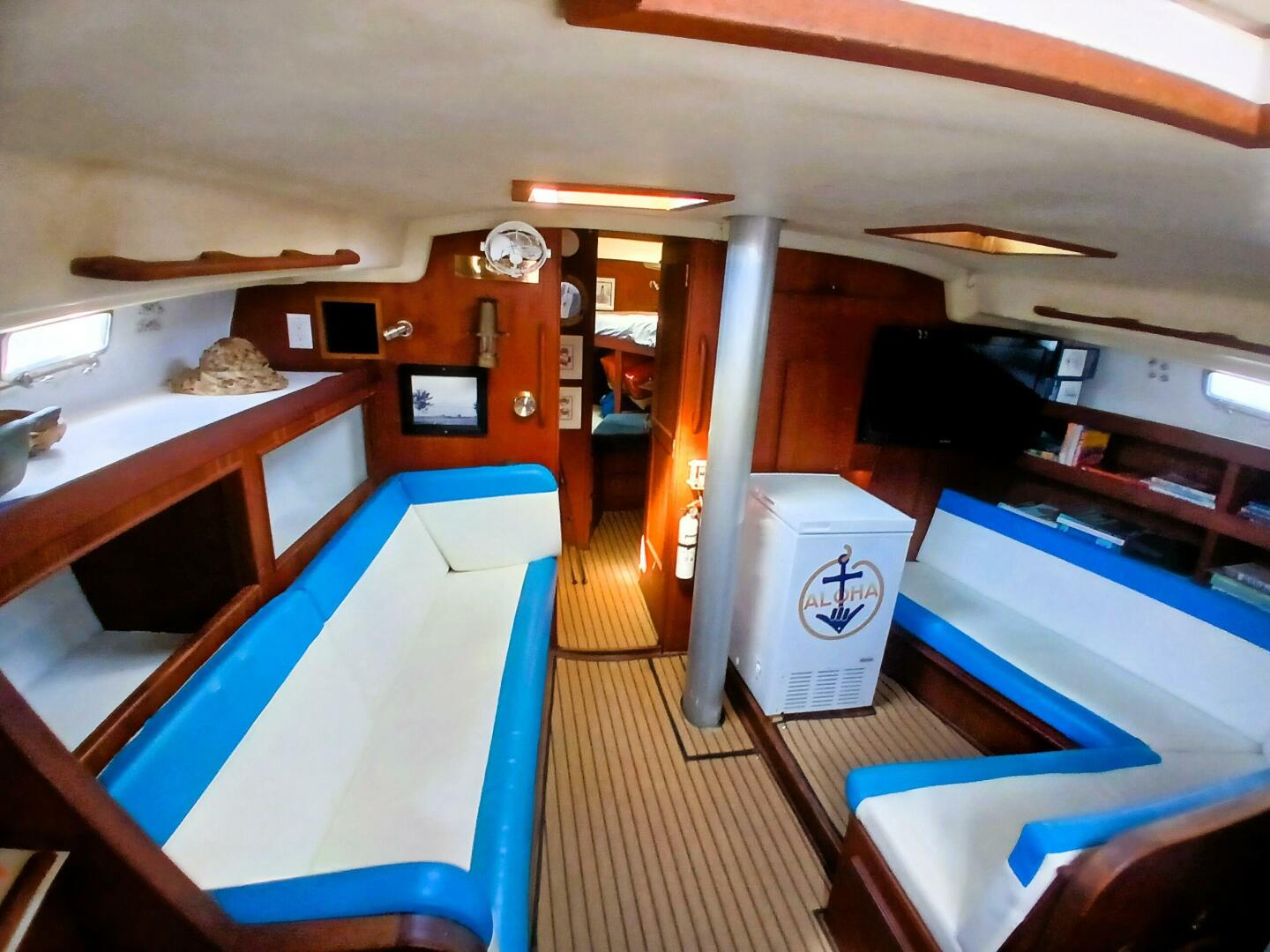

- New 2 tone salon custom cushions were made in January of 2023

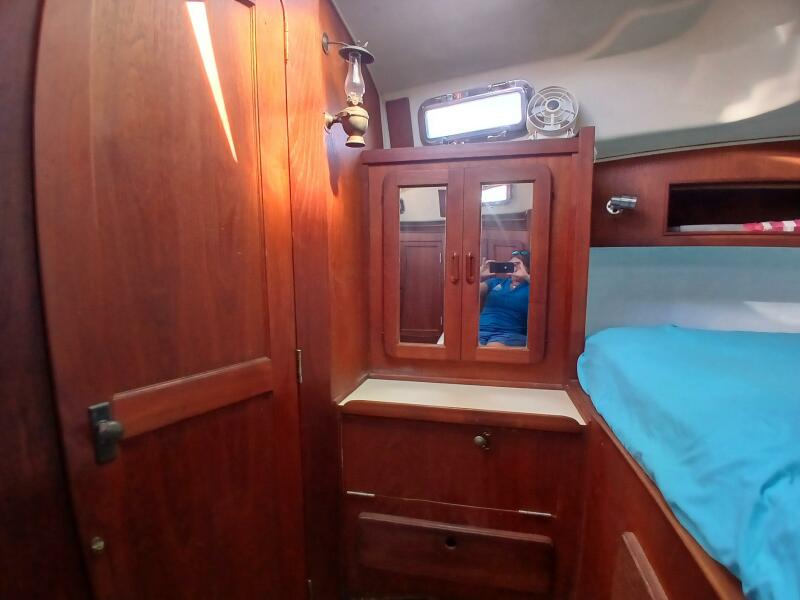

STATEROOMS

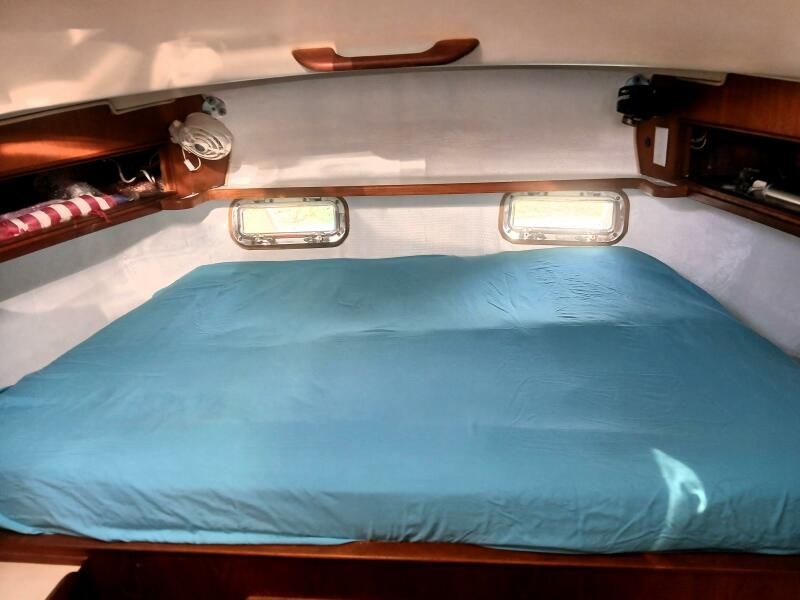

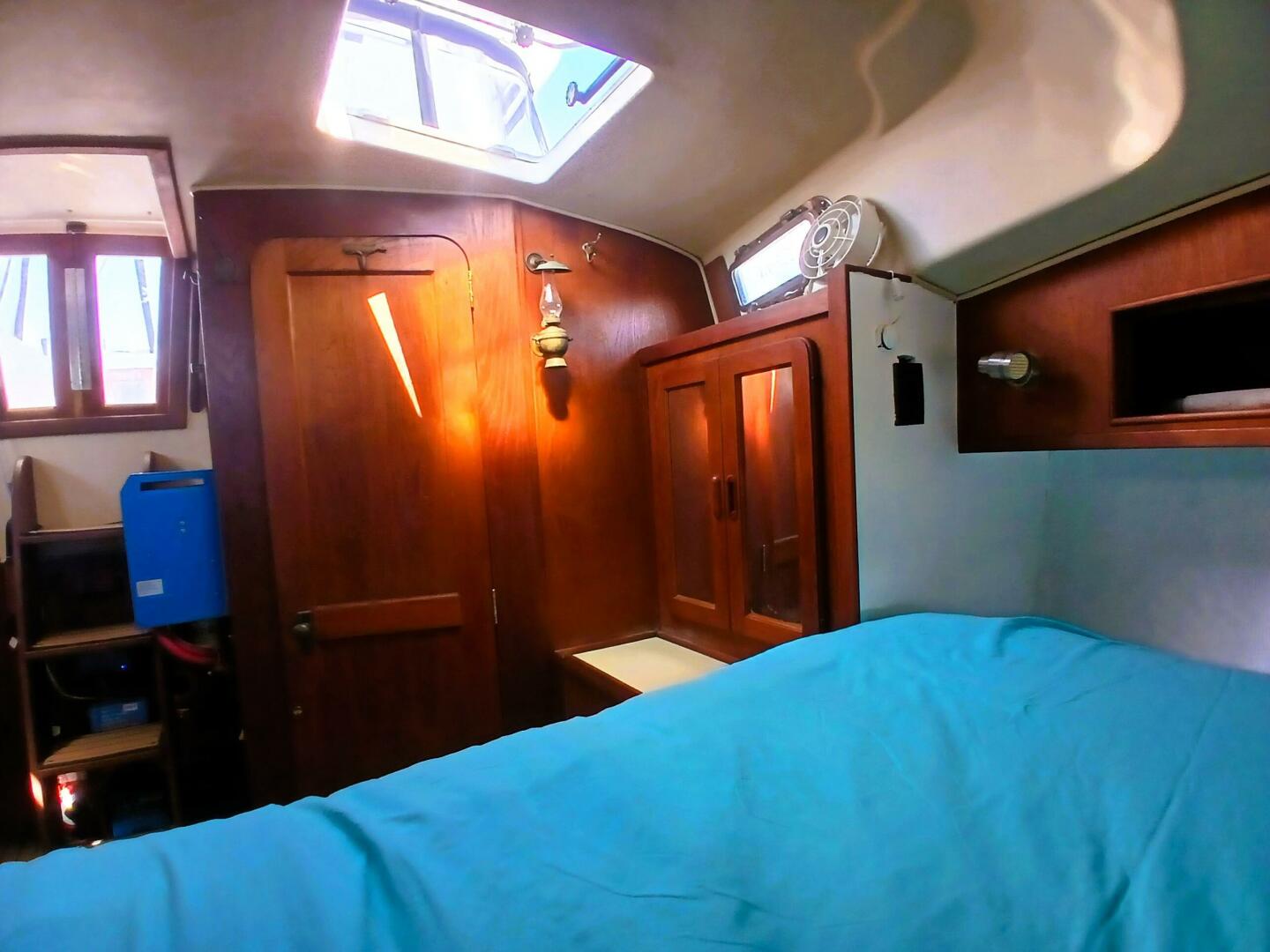

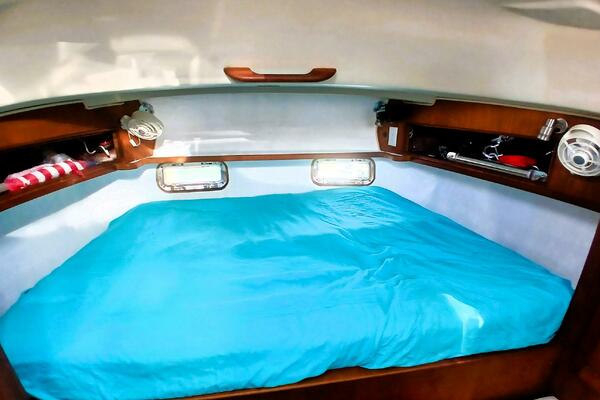

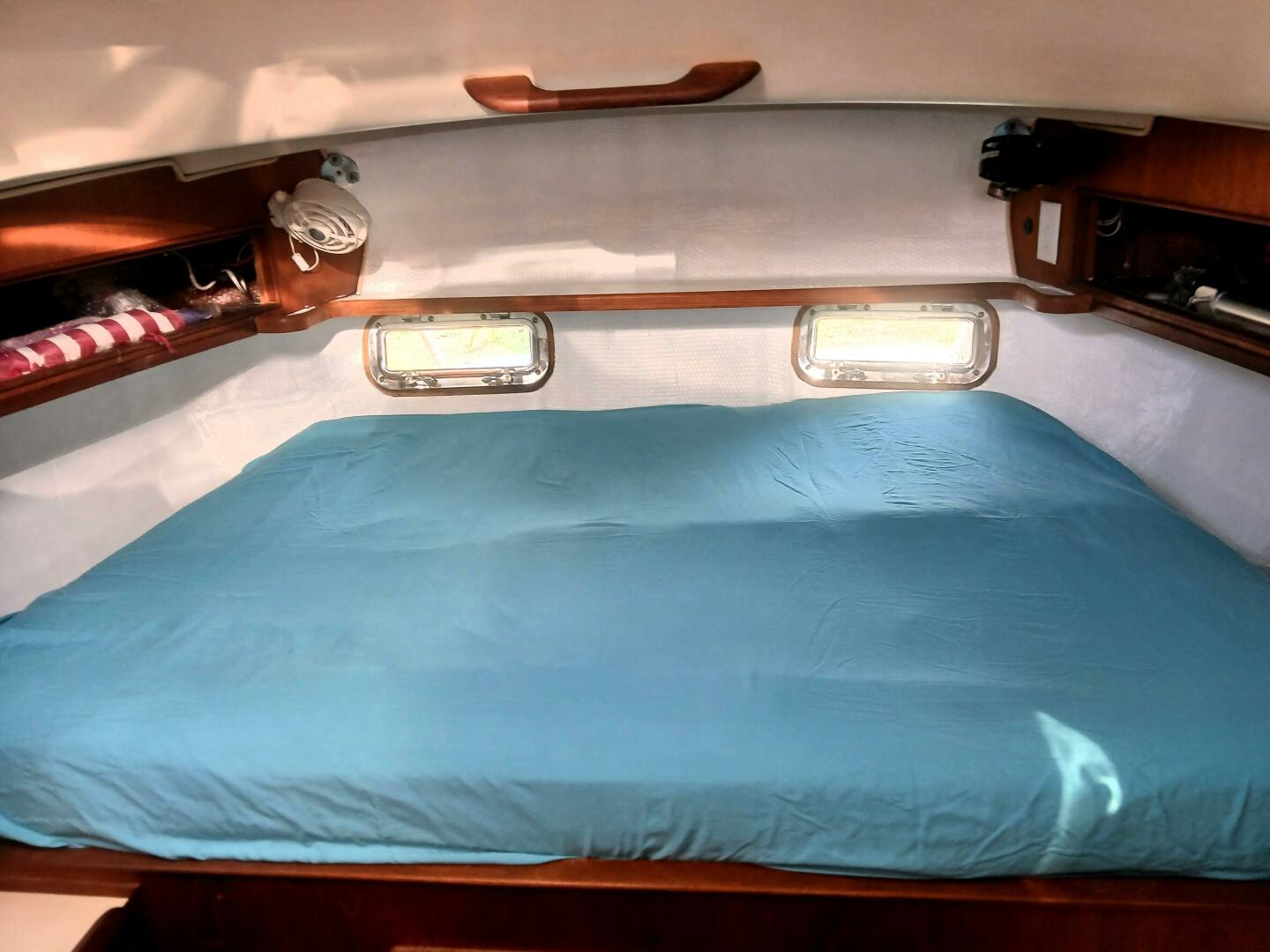

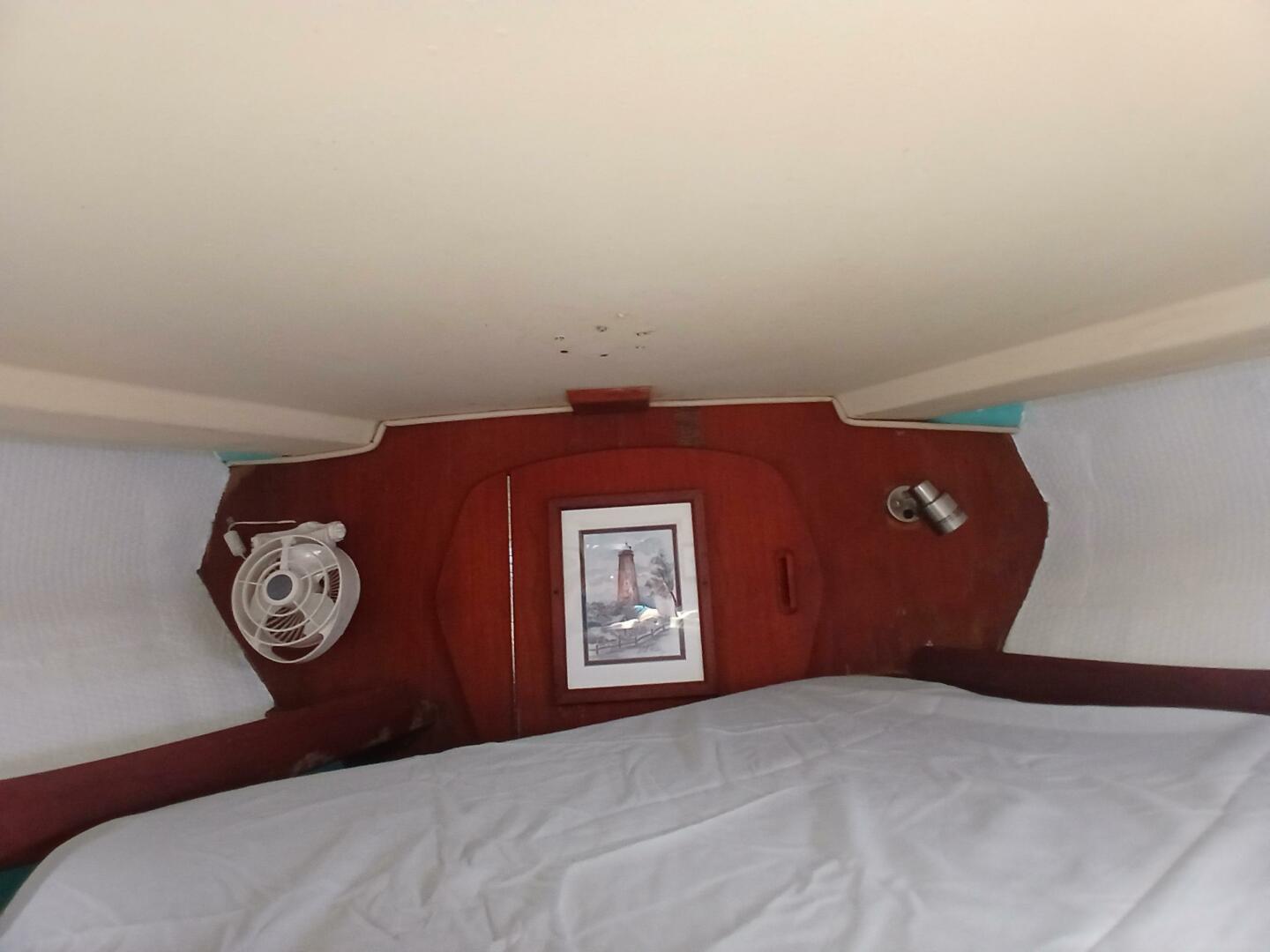

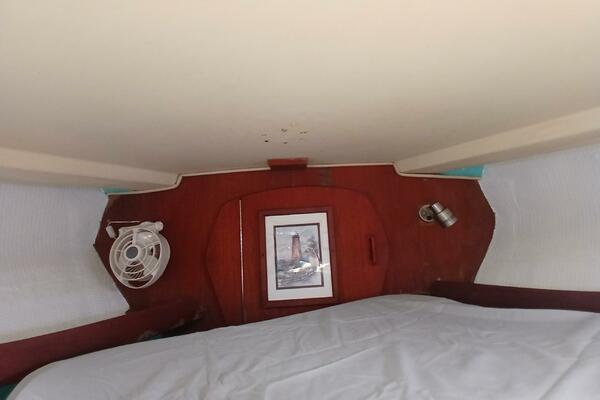

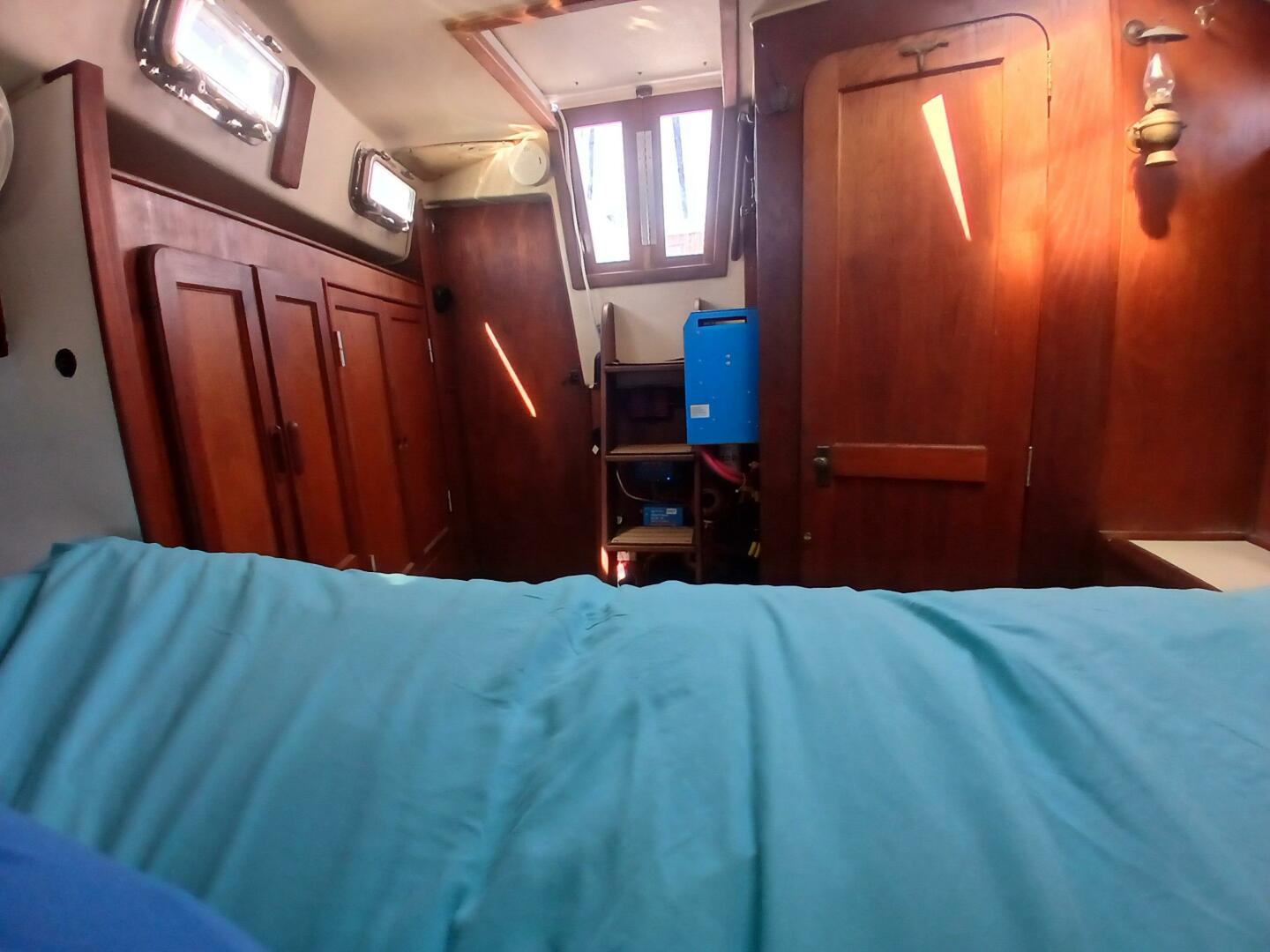

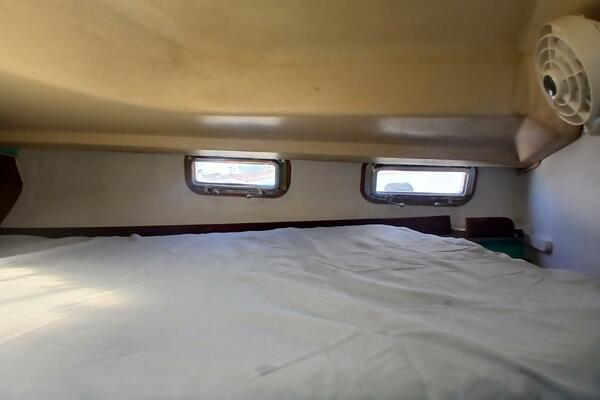

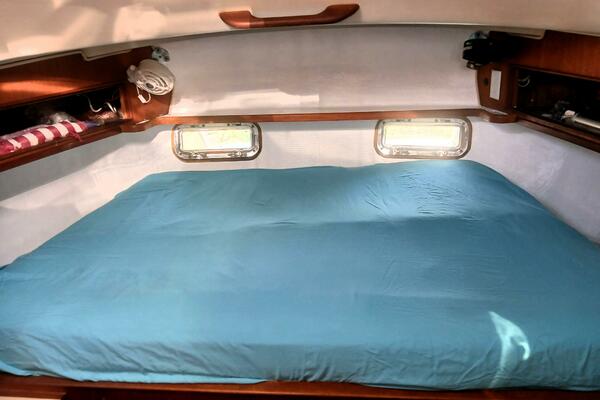

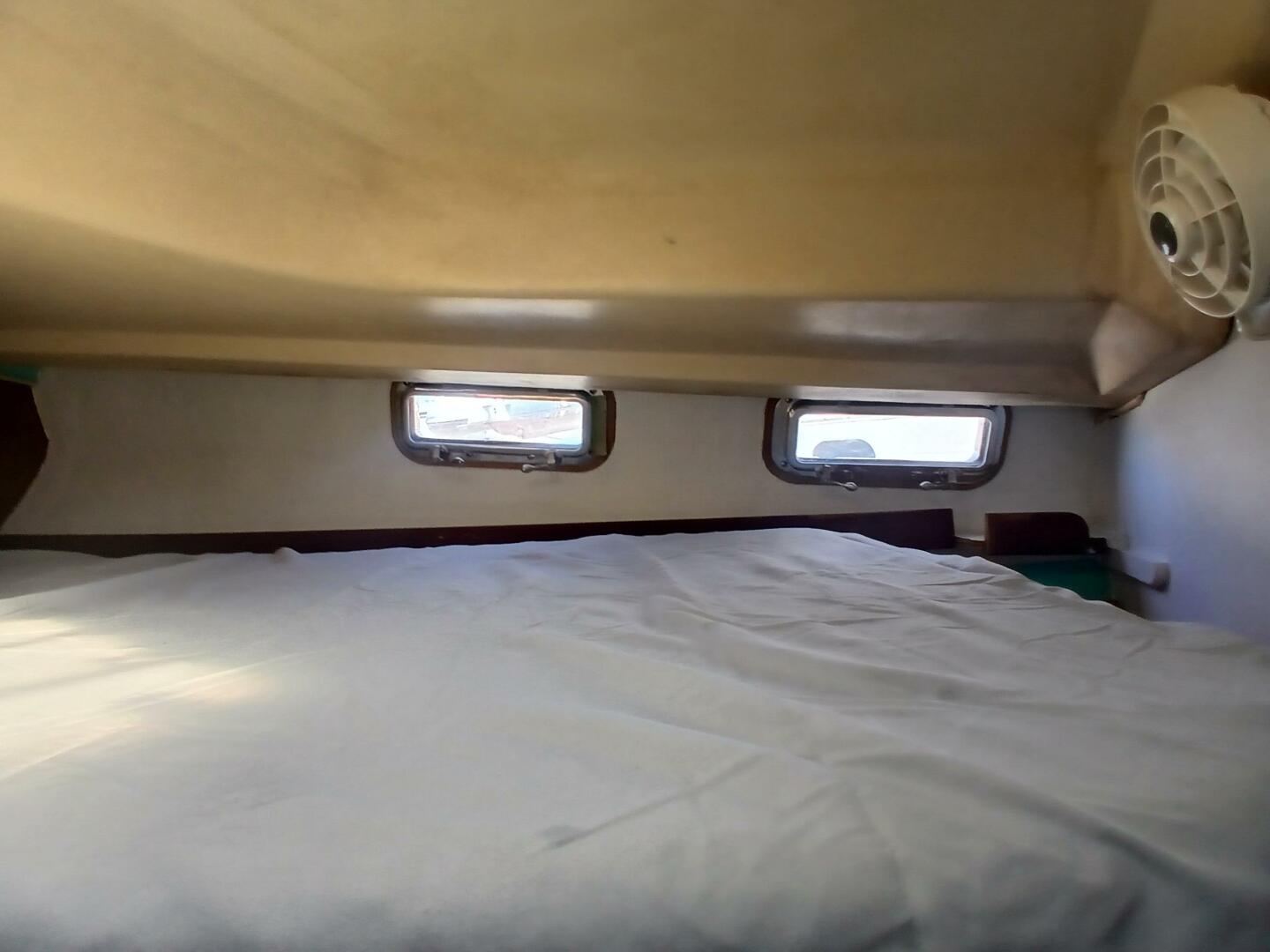

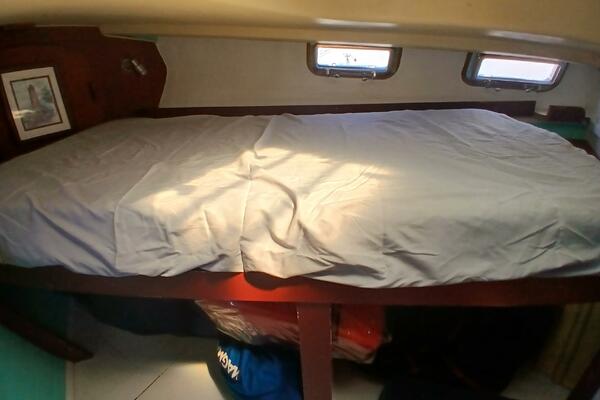

- Aft stateroom mattress is custom windham that folds for ease of changing sheets.

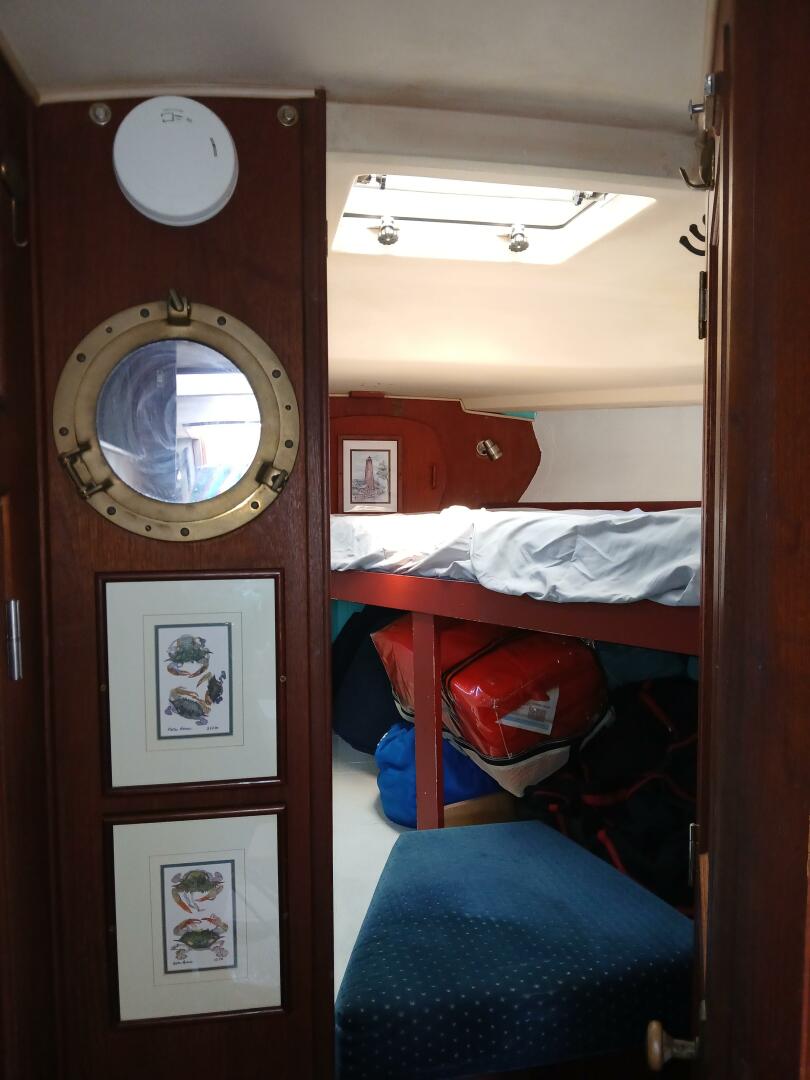

- Bunk bed added to V-berth.

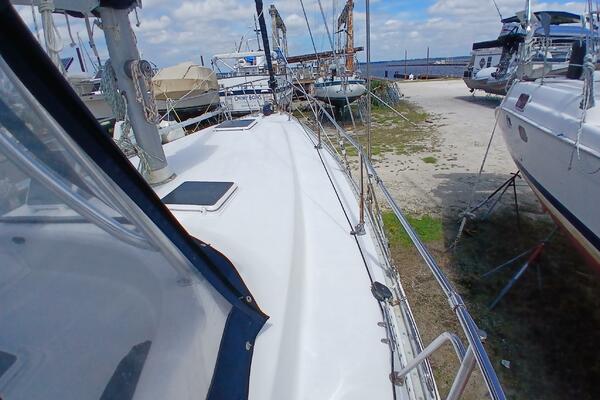

HULL AND DECK EQIUPMENT AND MAINTENANCE:

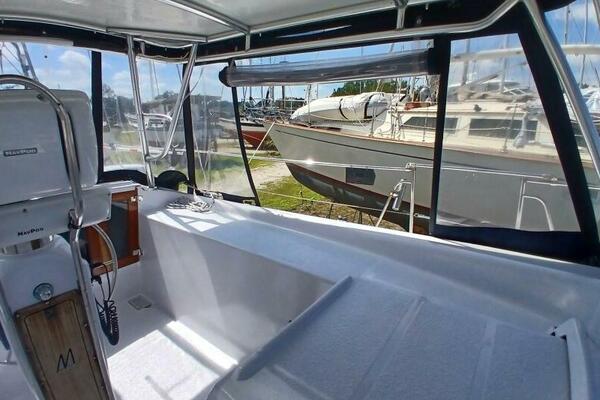

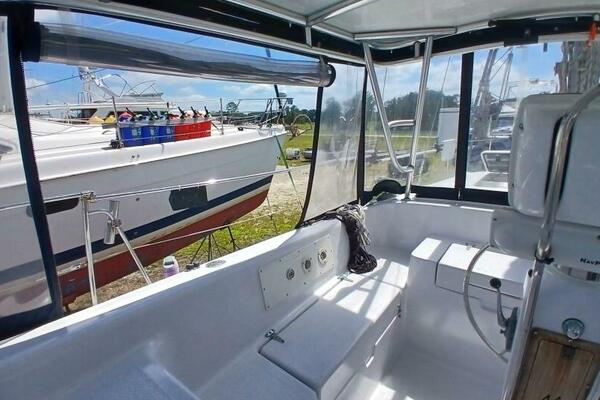

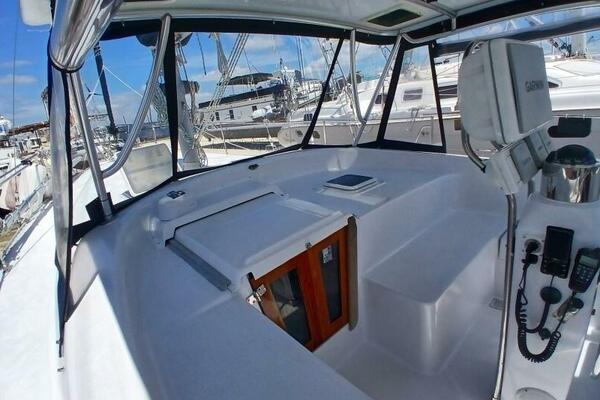

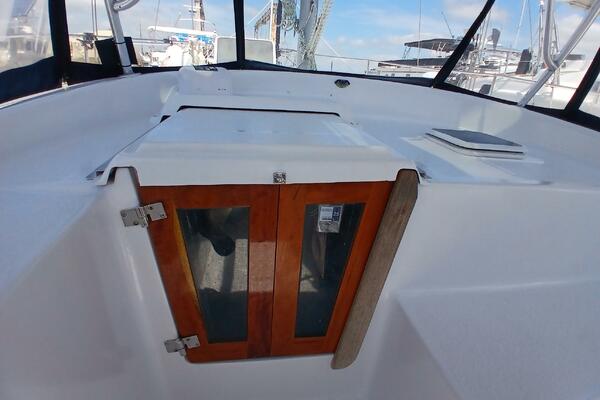

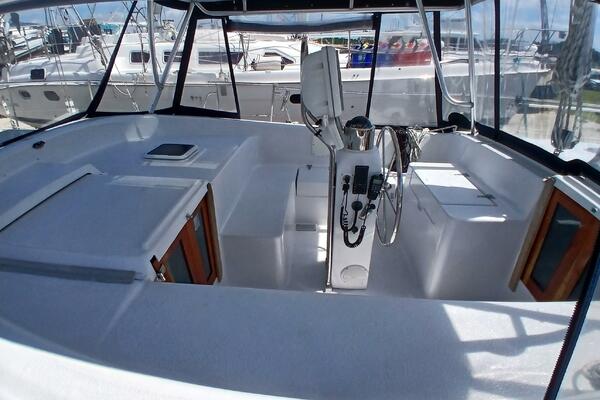

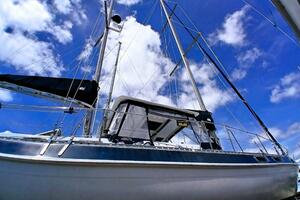

- New hardtop cockpit enclosure. Aluminum frame, fiberglass top with 3 hatches. Designed to be walked on can hold a lot of weight.

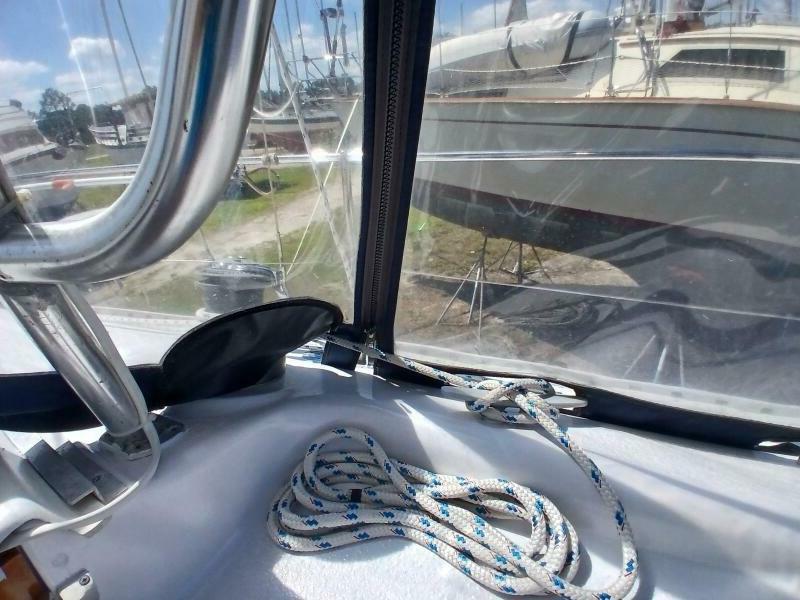

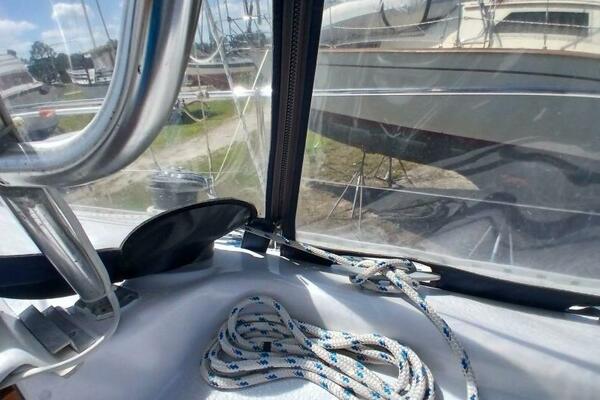

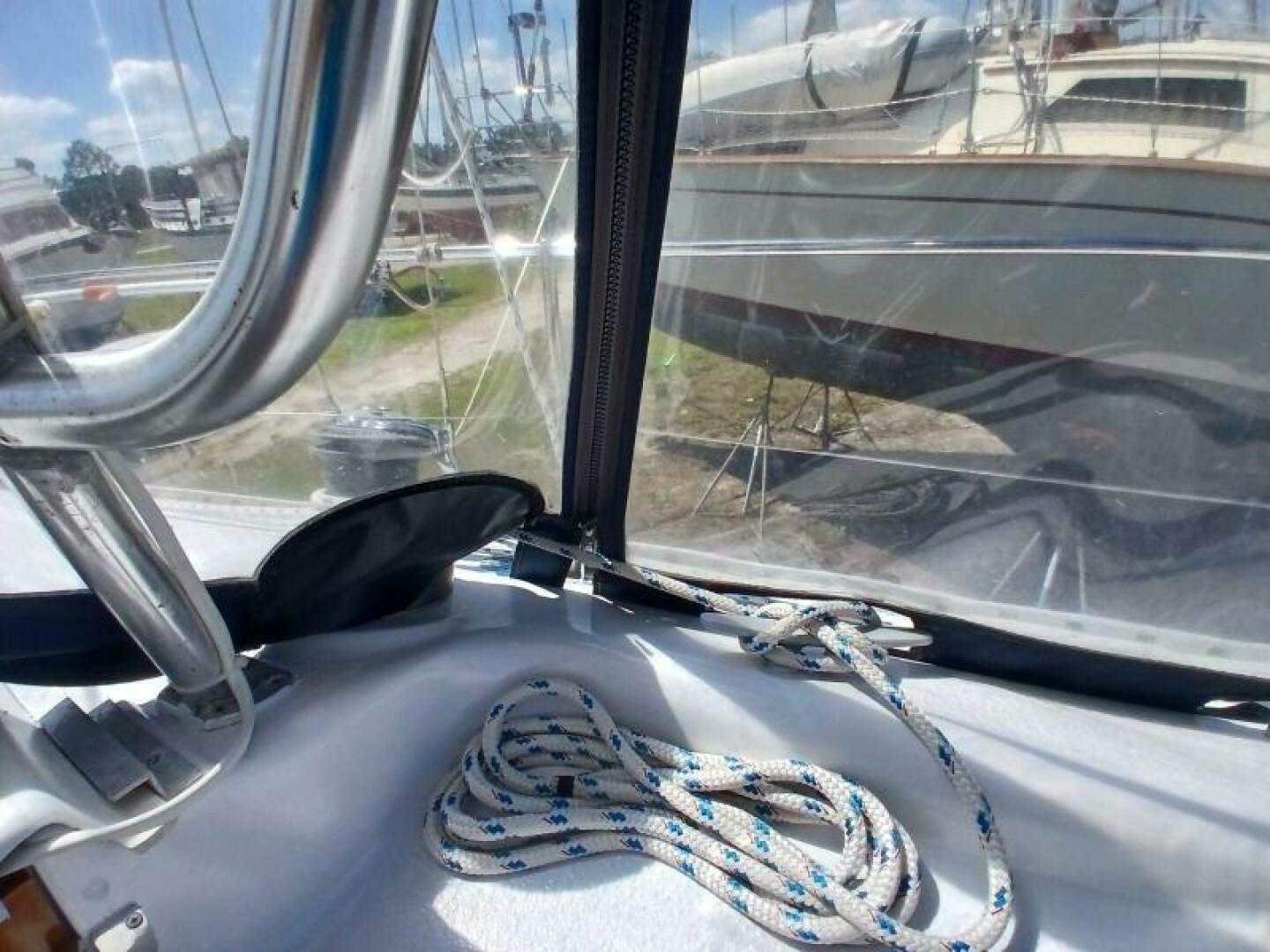

- Isinglass enclosure with strata glass front windshield.
- Aluminum frame swim platform, with nonskid composite deck and 4 step stainless steel boarding ladder.

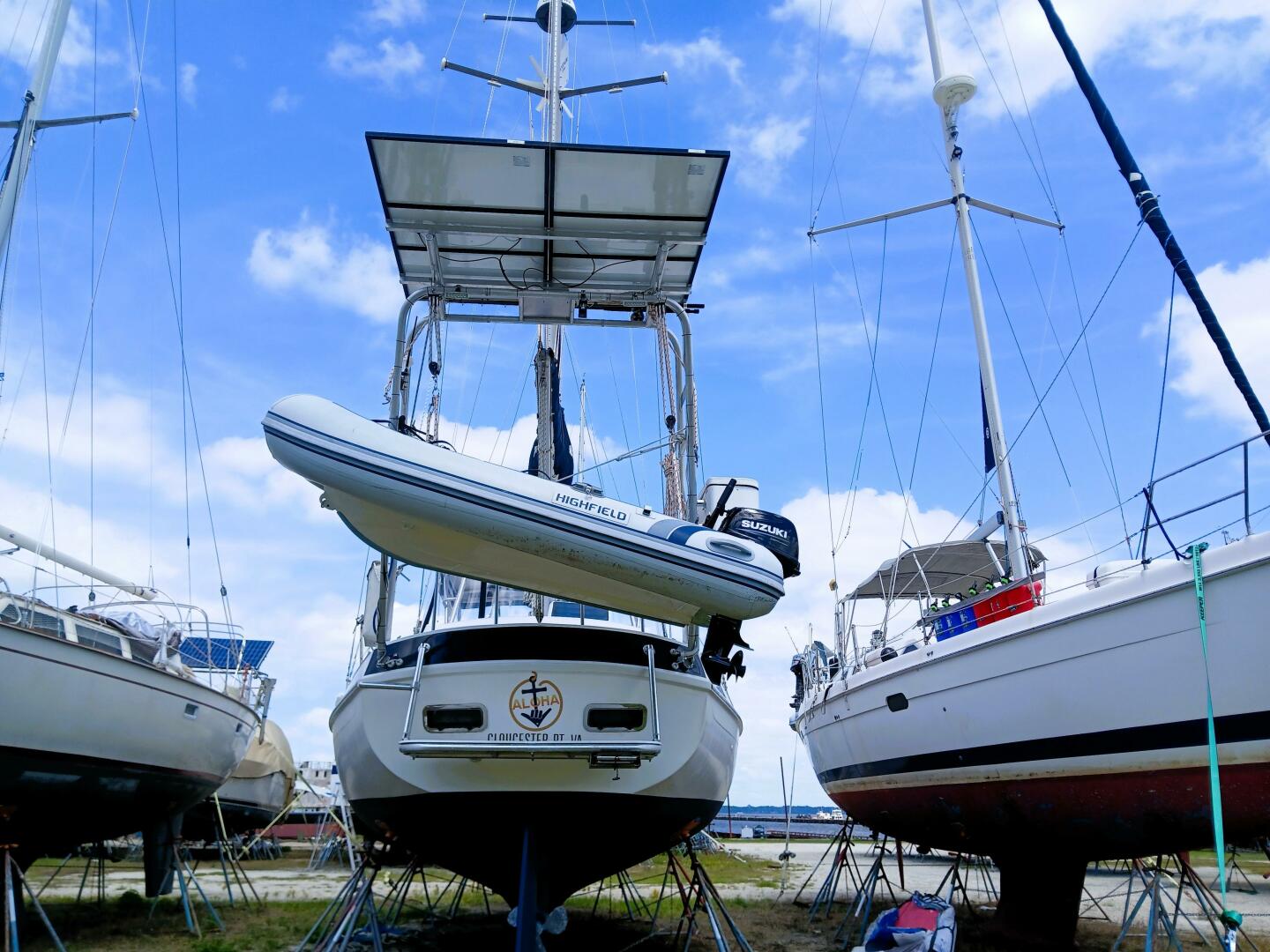

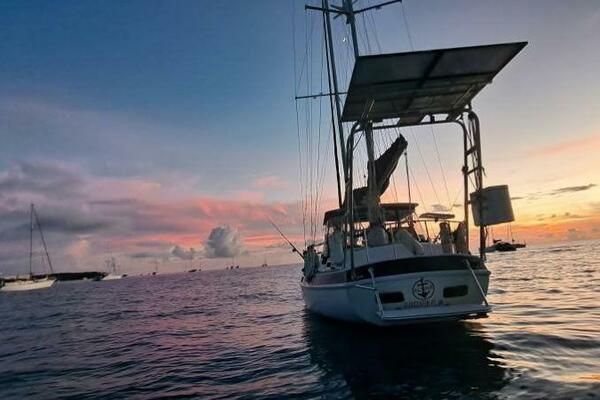

- New custom-made arch for solar and dinghy davit system. 2025

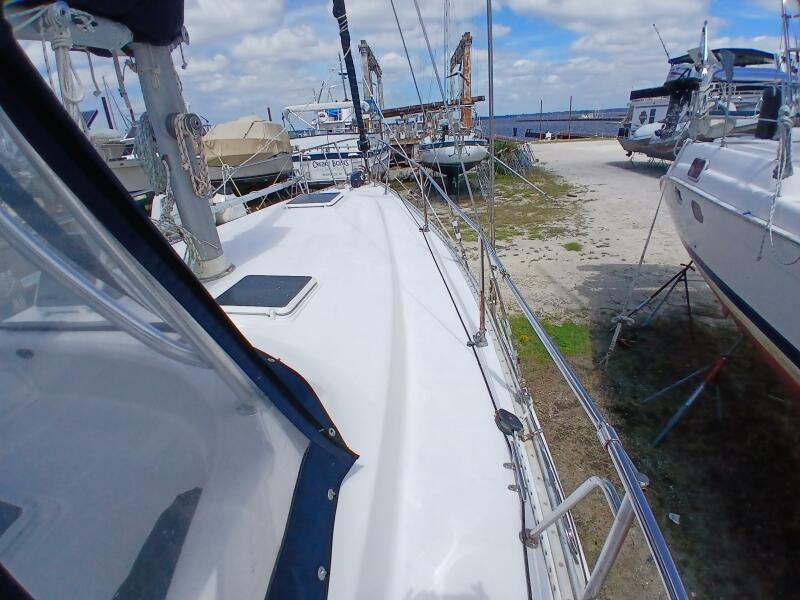

- New lifelines and solid stainless steel top rail added.

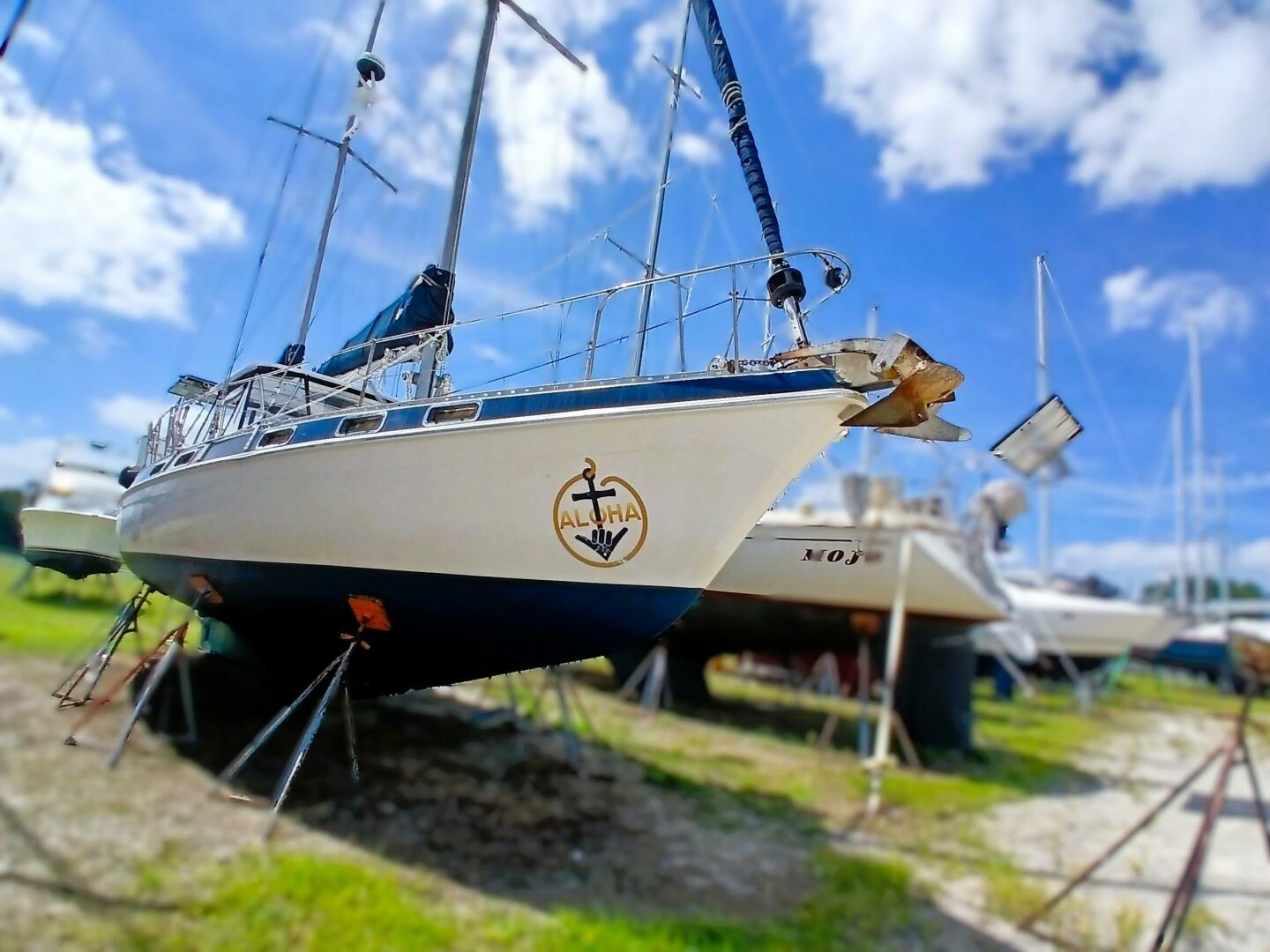

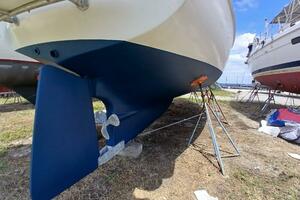

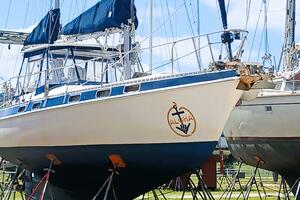

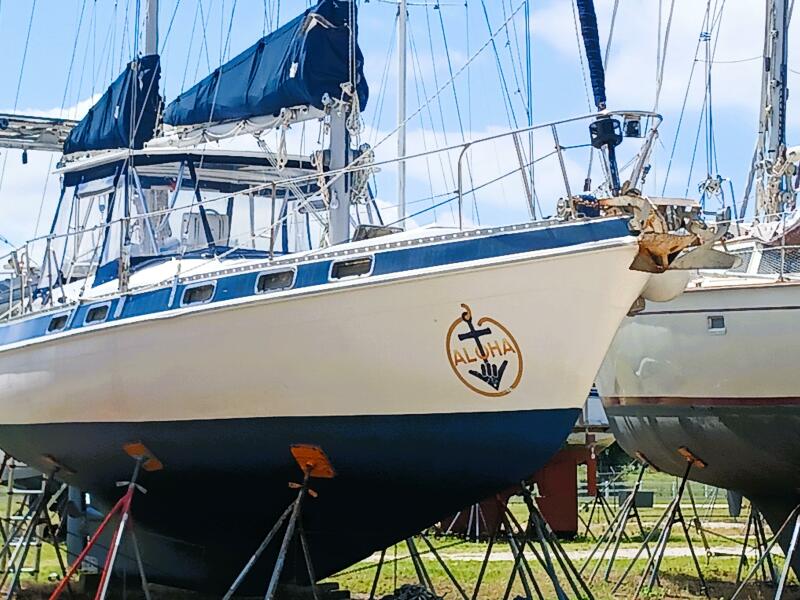

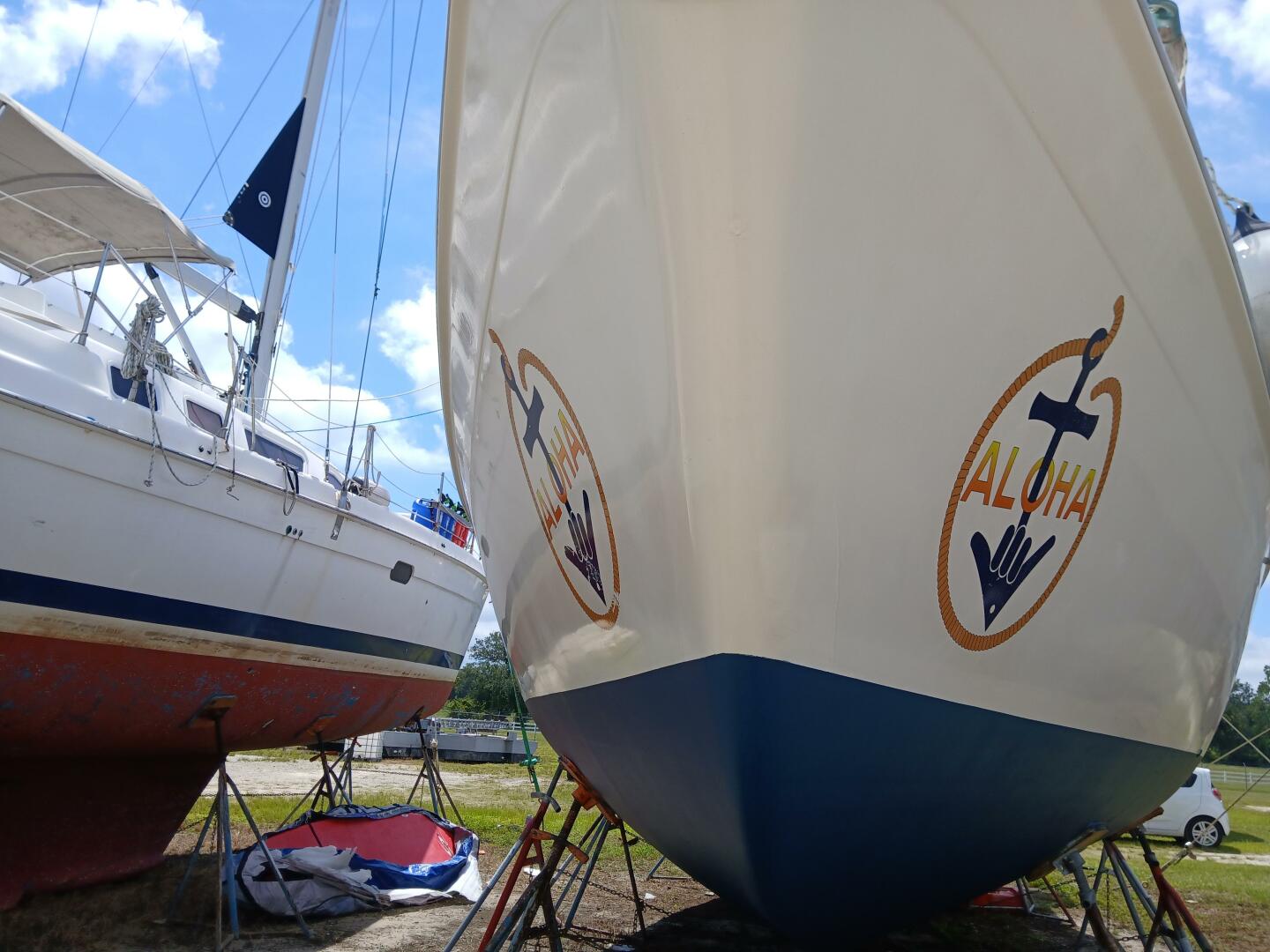

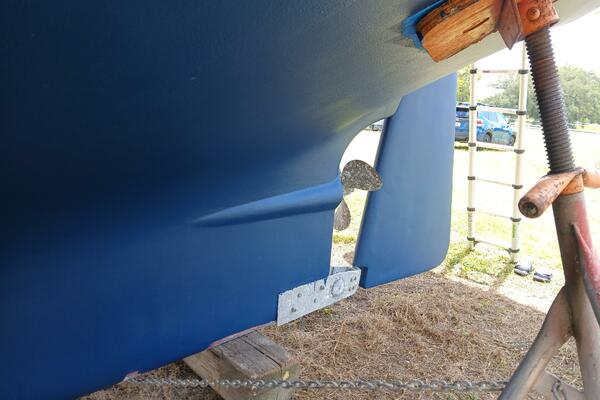

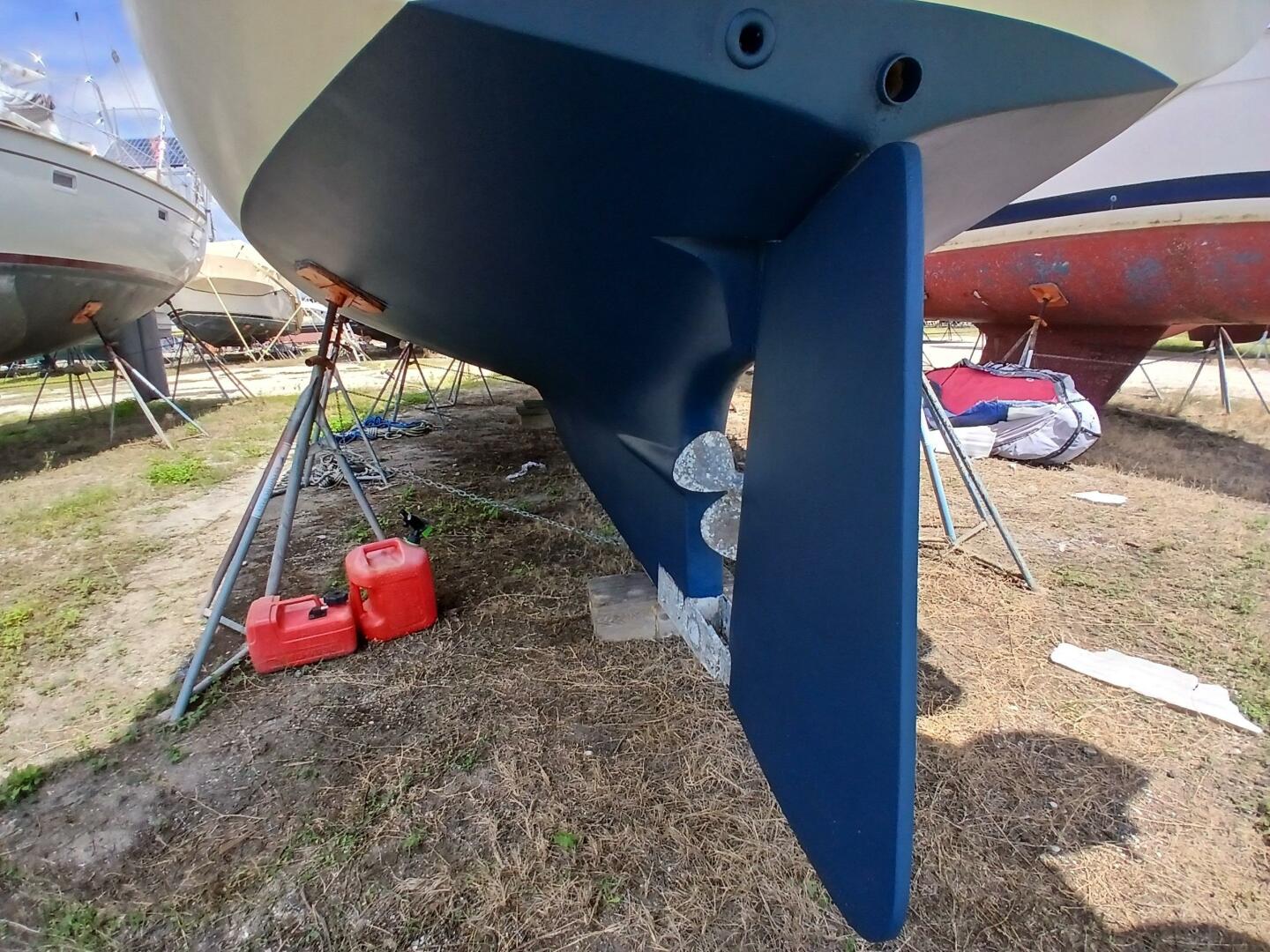

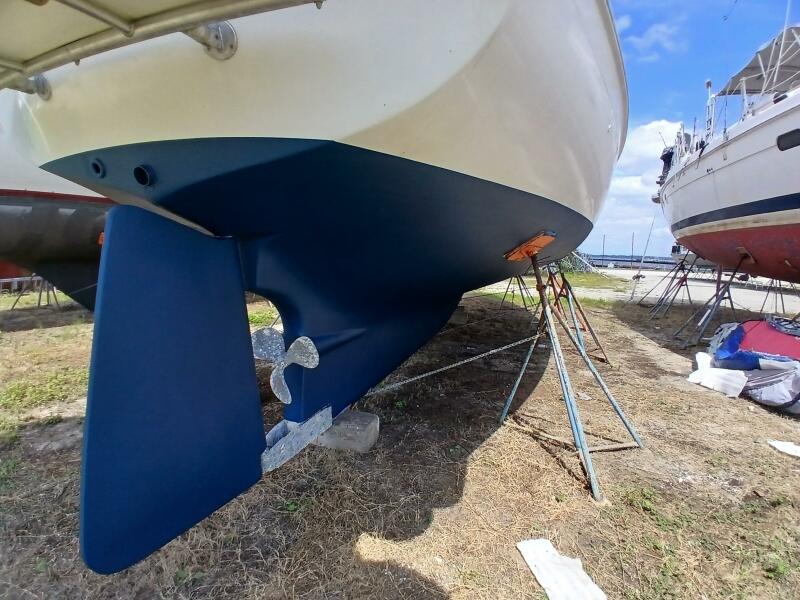

- New bottom paint 09/2025. The bottom was peeled in 2023, sealed with multiple coats of 3M bottom sealer, and painted with 3 coats of Interlux anti fouling paint. It was painted again in 2024.

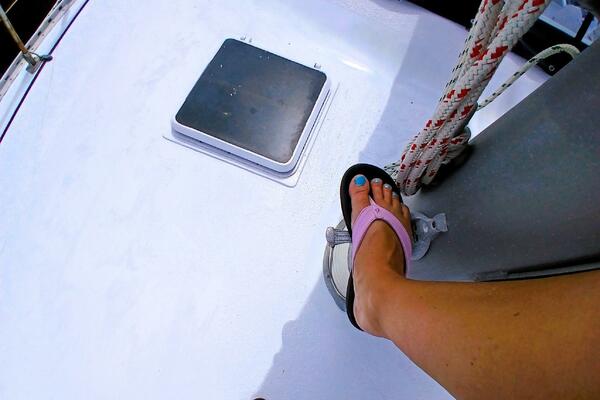

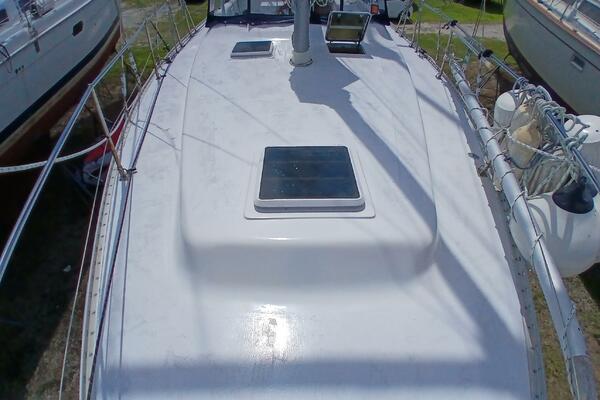

- The top deck had a few soft spots when we purchased it. We removed all the balsa coring and replaced it with Coosa fiber board and re-glassed top deck. The deck is solid.

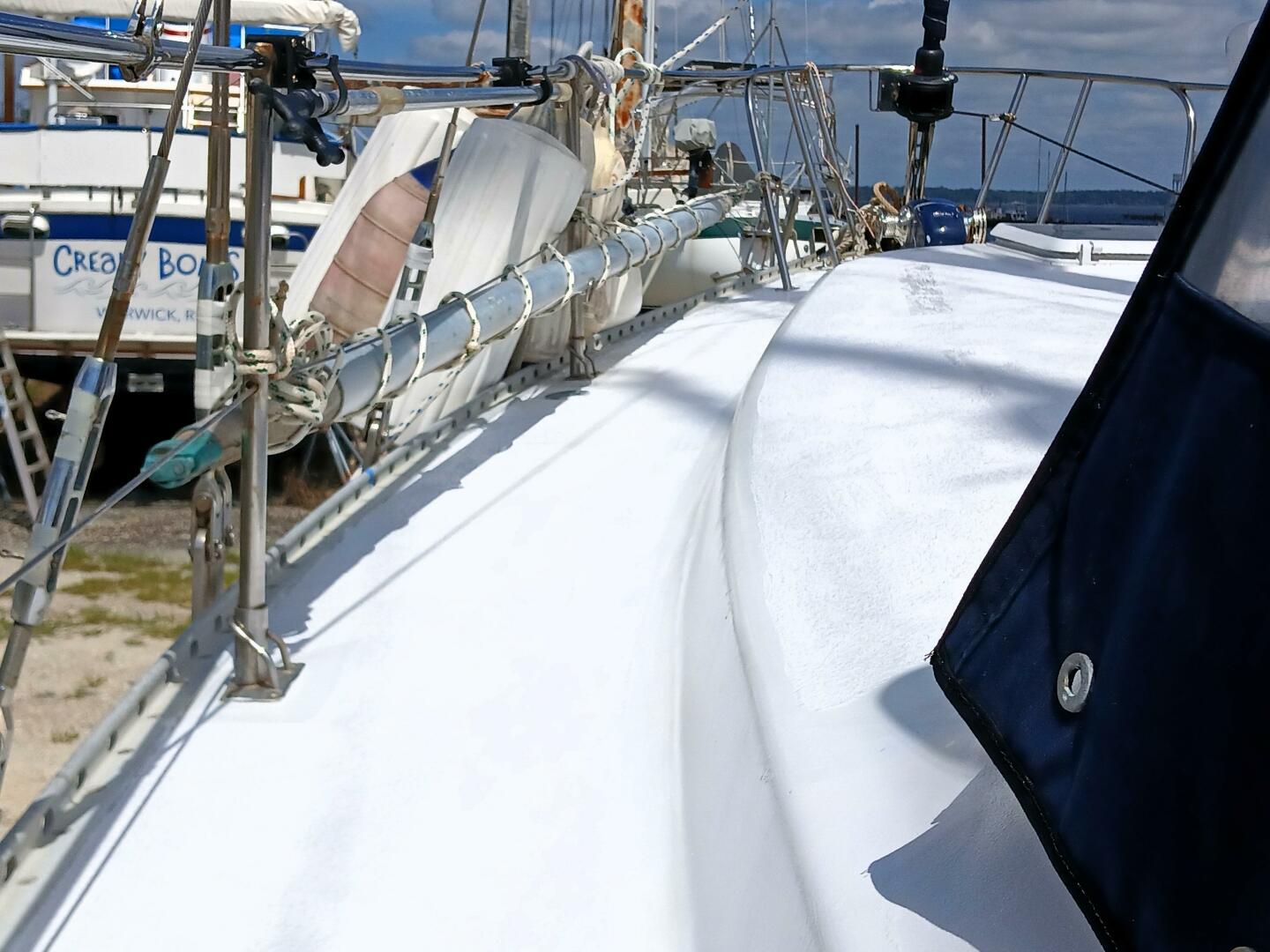

- New deck paint 09/2025
SAFETY
- EPIRB
- Vesper AIS
- All new fire extinguishers and smoke/carbon monoxide detectors 2024
RCR Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Sunshine Cruising Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Specifications
HIN/IMO: MRY31161M83A
LOA: 41' 3'' (12.57 Meters)
Type: Sail- Used
Year: 1983
Beam: 13' 10''
LWL: 34'
Draft Max: 4' 3''
Cabins: 2
Sleeps: 6
Fuel Type: Diesel
Hull Material: Fiberglass
Hull Shape: Monohull
Fuel Tank: 100 Gallons (378.54 Liters)
Fresh Water: 200 Gallons (757.08 Liters)
Photos click to view all
Engines
Engine 1
- Engine Make: Perkins
